0115-0007-0400

Max Flow: 3GPM (8.7LPM 50HZ)
Max Head: 4.6 Feet (1M 50HZ)
Non-Submersible or Submersible
1PH 115V or 230V

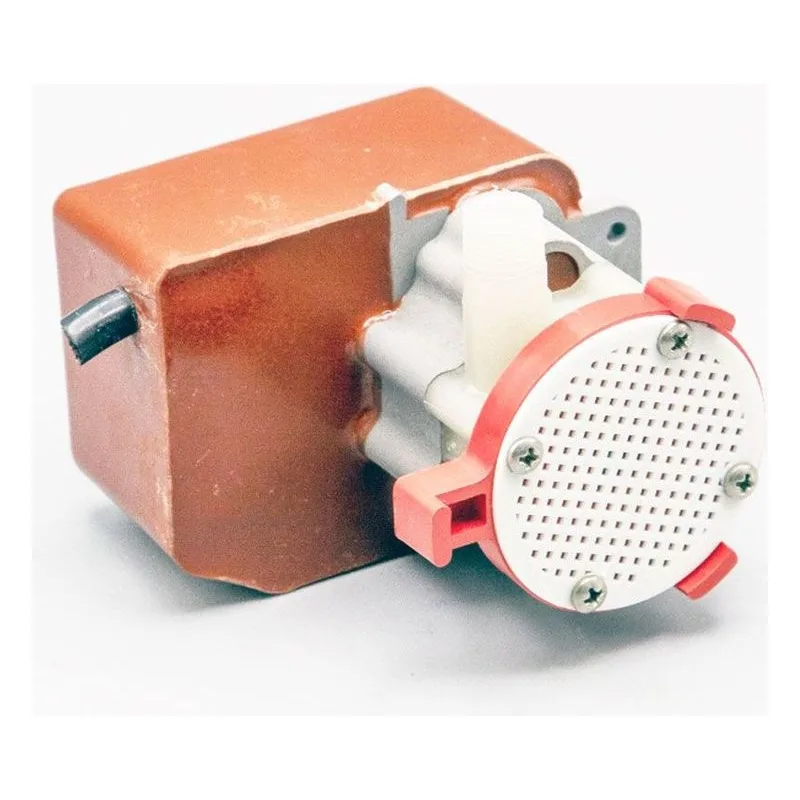

1A-MD-3/8 Mag Drive Pump
Unit System:	60Hz / 50Hz
Max Flow: 2.3 GPM 7.5 LPM
Max Head: 4.6 FT 1.0 M
Power: 0.005 HP 0.003 KW
Electrical: 115V 50/60HZ or 230V 50/60HZ
Submersible: Yes

1A-MD-1/2 Mag Drive Pump
Unit System: 60Hz / 50Hz
Max Flow: 3.0 GPM 9.0 LPM
Max Head: 4.6 FT 1.0 M
Power: 0.005 HP 0.003 KW
Electrical: 115V 50/60HZ or 230V 50/60HZ
Submersible: Yes

1C-MD Mag Drive Pump
Unit System: 60Hz / 50Hz
Max Flow: 3.0 GPM 9.0 LPM
Max Head: 4.6 FT 1.0 M
Power: 0.005 HP 0.003 KW
Electrical: 115V 50/60HZ or 230V 50/60HZ
Submersible: Yes

1U-MD Mag Drive Pump
Unit System: 60Hz / 50Hz
Max Flow: 3.0 GPM 9.0 LPM
Max Head: 4.6 FT 1.0 M
Power: 0.005 HP 0.003 KW
Electrical: 115V 50/60HZ or 230V 50/60HZ
Submersible: Yes

AC-1A-MD-3/8 Mag Drive Pump
Unit System: 60Hz / 50Hz
Max Flow: 2.3 GPM 7.5 LPM
Max Head: 4.6 FT 1.0 M
Power: 0.005 HP 0.003 KW
Electrical: 115V 60HZ or 230V 50/60HZ

AC-1A-MD-1/2 Mag Drive Pump
Unit System: 60Hz / 50Hz
Max Flow	: 3.0 GPM 9.0 LPM
Max Head: 4.6 FT 1.0 M
Power: 0.005 HP 0.003 KW
Electrical: 115V 60HZ or 230V 50/60HZ

AC-1C-MD Mag Drive Pump
Unit System: 60Hz / 50Hz
Max Flow: 3.0 GPM 9.0 LPM
Max Head: 4.6 FT 1.0 M
Power: 0.005 HP 0.003 KW
Electrical: 115V 60HZ or 230V 50/60H
