0156-0183-0100

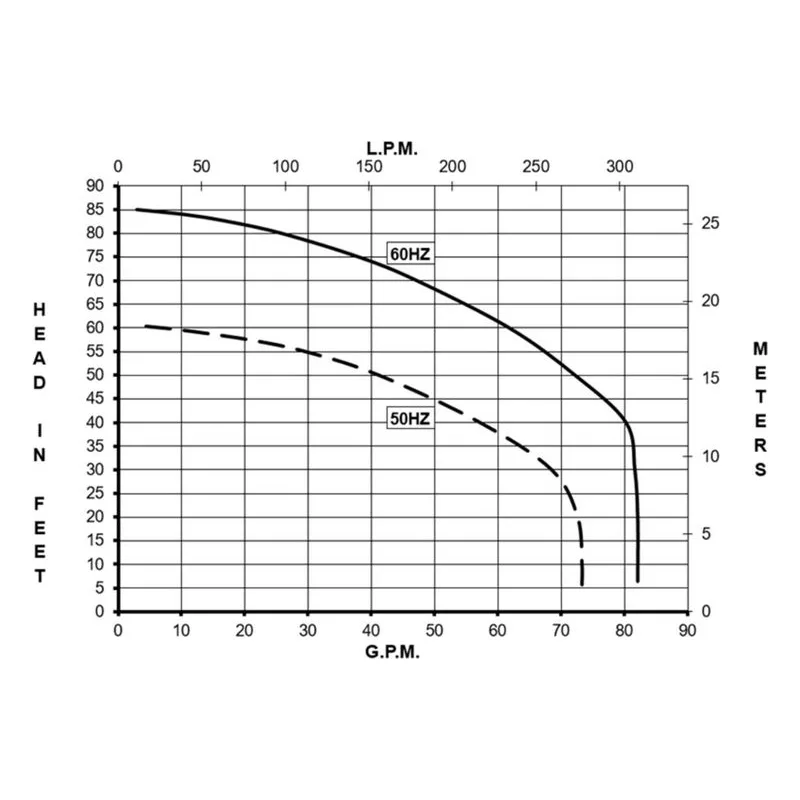

March Pumps 0156-0183-0100 Series 7.5 Chemical Pump, Model Number Flanged TE-7.5K-MD with Conduit Box, VFD Capable. 2 HP (Horsepower), 208/230/460V, 3 Phase (3 Ph), 50/60 Hz, 3450 RPM, TEFC, Weg Motor. Wet End Materials: Natural Kynar (Front Housing, Rear Housing, Impeller), Viton (O-Ring), Ceramic (Shaft, Thrust Washers), Carbon (Bushing), 2" ANSI Class 150 Flange Suction & 1-1/2" ANSI Class 150 Flange Discharge. 82 GPM (Gallons Per Minute) Max Flow, Heads to 85 ft., 60 PSI Max Pressure, and 190°F Liquid Temperature.
List: $4,378.00
$3,852.64
1
Ships within 1 business day (in-stock items). Delivery typically 1-5 business days.
Returns accepted within 30 days. View Returns Policy
Estimate Shipping
Overview
March Pumps 0156-0183-0100 Series 7.5 Chemical Pump, Model Number Flanged TE-7.5K-MD with Conduit Box, VFD Capable. 2 HP (Horsepower), 208/230/460V, 3 Phase (3 Ph), 50/60 Hz, 3450 RPM, TEFC, Weg Motor. Wet End Materials: Natural Kynar (Front Housing, Rear Housing, Impeller), Viton (O-Ring), Ceramic (Shaft, Thrust Washers), Carbon (Bushing), 2" ANSI Class 150 Flange Suction & 1-1/2" ANSI Class 150 Flange Discharge. 82 GPM (Gallons Per Minute) Max Flow, Heads to 85 ft., 60 PSI Max Pressure, and 190°F Liquid Temperature.
Literature & Manuals
Find the manuals, product sheets and all the information you need
| Type | Title | Link |
|---|---|---|
| Installation & Operation Manuals | March Pumps Series 7.5 Chemical Pumps Manual | View |
Series Information
Series 7.5 Information
