0809-0266-0200

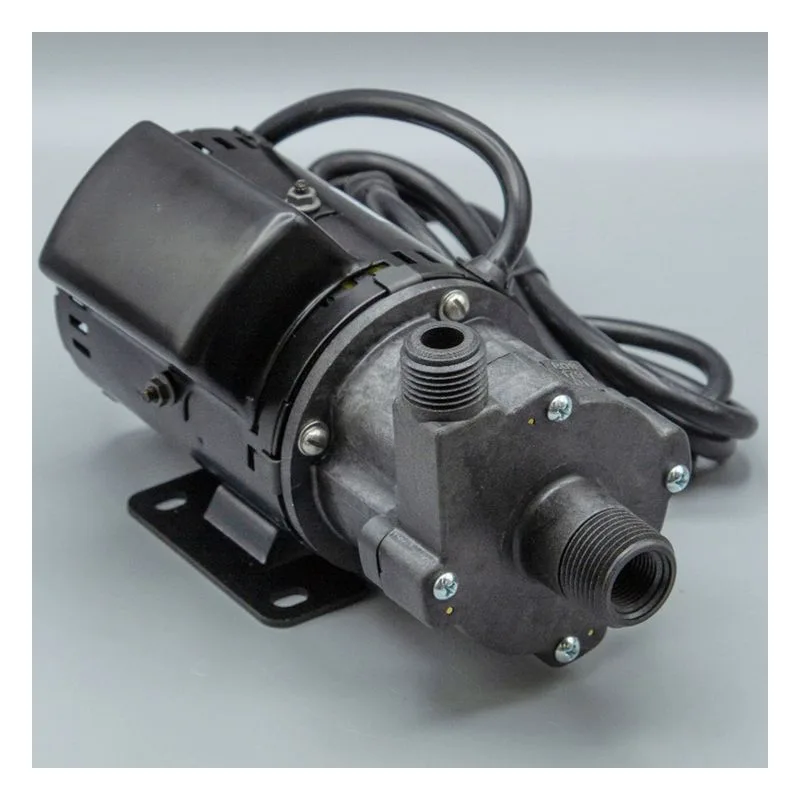

March Pumps 0809-0266-0200 Series 815 Hydronic Mag Drive Pump, Model Number 815-PL-C 230V. 0.04 HP (Horsepower), 230V, 1 Phase (1 Ph), 50/60 Hz, 3450 RPM, Broad Ocean Motor. Wet End Materials: Polysulfone (Front Housing), Stainless Steel (Rear Housing and Shaft), Teflon (Thrust Washer), Silicone (O-Ring), Ryton/Teflon/Glass (Impeller), 3/8" & 3/4" MNPT Suction & 1/2" MPT Discharge. 8 GPM (Gallons Per Minute) Max Flow, Heads to 18.6 ft., 50 PSI Max Pressure, and 250°F Liquid Temperature.
List: $340.00
$299.20
1
Ships within 1 business day (in-stock items). Delivery typically 1-5 business days.
Returns accepted within 30 days. View Returns Policy
Estimate Shipping
Overview
March Pumps 0809-0266-0200 Series 815 Hydronic Mag Drive Pump, Model Number 815-PL-C 230V. 0.04 HP (Horsepower), 230V, 1 Phase (1 Ph), 50/60 Hz, 3450 RPM, Broad Ocean Motor. Wet End Materials: Polysulfone (Front Housing), Stainless Steel (Rear Housing and Shaft), Teflon (Thrust Washer), Silicone (O-Ring), Ryton/Teflon/Glass (Impeller), 3/8" & 3/4" MNPT Suction & 1/2" MPT Discharge. 8 GPM (Gallons Per Minute) Max Flow, Heads to 18.6 ft., 50 PSI Max Pressure, and 250°F Liquid Temperature.
Literature & Manuals
Find the manuals, product sheets and all the information you need
| Type | Title | Link |
|---|---|---|
| Installation & Operation Manuals | March Pumps Series 815 Hydronic Mag Drive Pumps Manual | View |
Series Information
Series 815 Information
