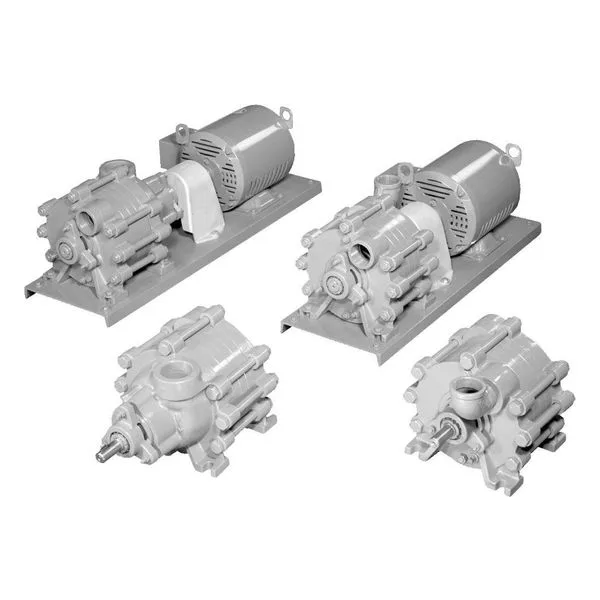

150 / 250 / 160 / 260 / 170 / 270 Turbine Pumps

150 / 250 / 160 / 260 / 170 / 270 Flexible Turbine Pumps

MTH 150, 250, 160, 260, 170, 270 Flexible coupled regenerative turbine pumps are the most economical high performance pumps for low flow. 150 Gallons Per Minute (GPM) low flow applications involving moderate to high pressures of heads to 1150 feet. MTH combined many years of  turbine pump designs with ultra precision PC controlled manufacturing. The MTH 150 / 250 / 160 /  260 / 170 / 270 pump models deliver ultimate pumping operation efficiency, especially at low NPSH. Top quality parts and a proven easily serviceable design leads to low maintenance and long life.

Limitation

• Discharge Pressure 500 PSI

• Seal Pressure* 200 PSI

• Suction Pressure (Min.) 26” Hg Vac.

• Speed 1750 RPM

• Horsepower 60 HP

Temperature

• Standard Construction -20°F

• Ceramic Seal Seat - Water 230°F

• Silicon Carbide Seal Seat & External Seal Flush 250°F
