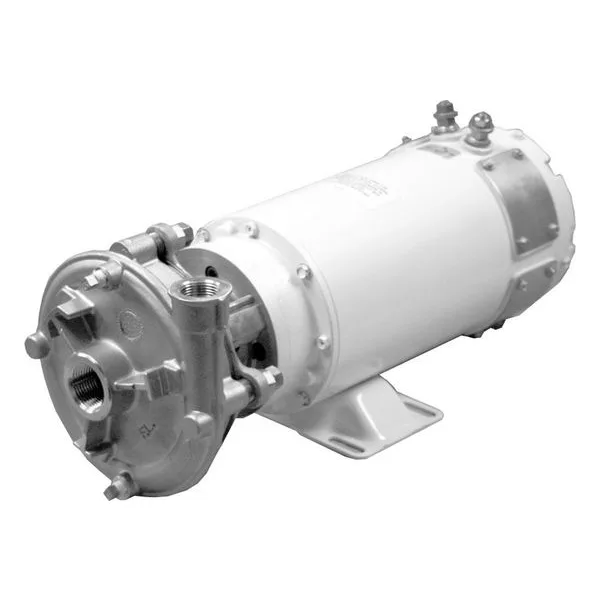

DC10 Washdown 12V Centrifugal Pumps

DC10 Washdown 12 Volt Centrifugal Pumps

Impeller Design

MTH DC10 Series semi-open impellers allow the pump to pass small solids and fibrous material while close running tolerances maintain high efficiency and performance. Impellers are pre-trimmed to be non-overloading to the pump and motor size indicated.

Mechanical Seal Box

DC10's large seal chamber provides a wide fluid passage area for maximum cooling of the seal faces and allows debris and gases to be flushed away.

Adjustable Casing

DC Series pump casings are axially adjustable allowing the use of custom impellers for OEM applications and to allow restoration of performance by closing up the internal clearances that develop over the course of a unit’s extended service life.

Design Features

• 100% Solid Stainless Steel Construction

• Capacities to 25 GPM

• Heads to 92 Feet (40 PSI)

• Temperatures from -20° to 250°F

• End Suction and Top, Bottom, or Side Discharge

• 12VDC 1HP TENV Motor

• Weighs 48 LBS

Specifications

• Stainless Steel Casing

• Stainless Steel Motor Bracket

• Cast Stainless Steel Impeller

• Adjustable Impeller to Casing Clearance

• “O” Ring Style Elastomer

• Long Lasting Dry Run Mechanical Seal

• Totally Enclosed DC Motor

• Easy Access Brass Terminals
