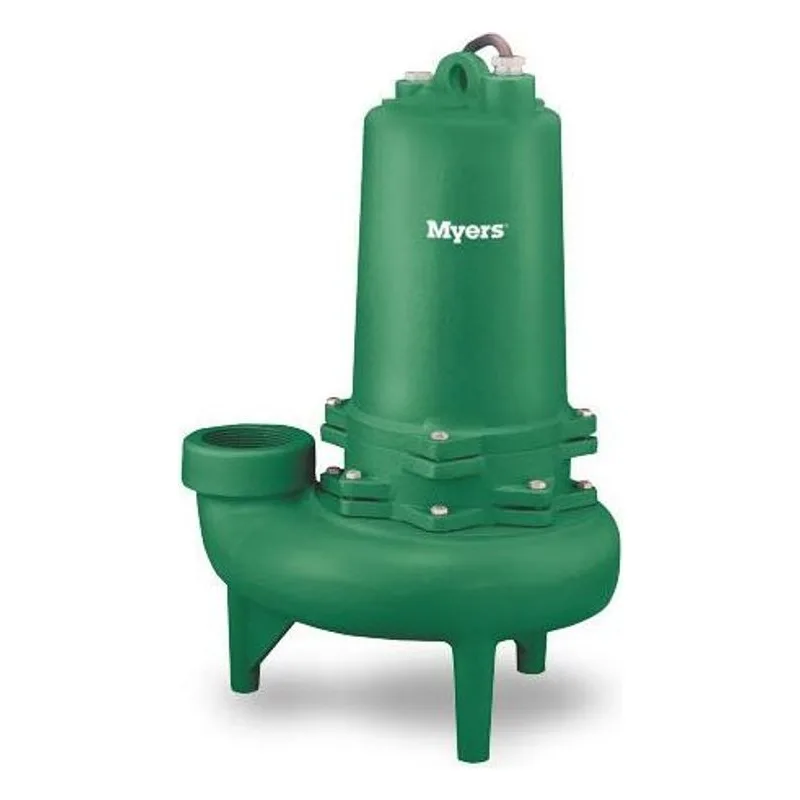

3MW15M2

Myers 3MW Series Solids Handling Features And Benefits:
Two-vaned rounded port impellers.
Offered in two speeds
Hydraulic end virtually maintenance- free
Volute seal ring replaceable in minutes
Oil-filled motor for constant bearing lubrication
High torque, permanent split capacitor (PSC), single-phase motors; no starting switches or relays
Optional seal leak probe (dual seal motors only)
Current and temperature overload (single phase only)

Myers 3MW Series Solids Handling General Specifications:
BODY CONSTRUCTION: Cast Iron
HORSEPOWER: Available in 1 to 3 HP
MAXIMUM HEAD: 92'
MAXIMUM CAPACITY: 330 GPM
FLOW at 10' LIFT: n/a 10' Head is Below Recommended Performance Curve
SWITCH TYPE:
MINIMUM SUMP DIAMETER: Duplex: 48"
DISCHARGE PIPE SIZE: 3" NPT (vertical)
MAXIMUM SOLIDS HANDLING SIZE: 1750 RPM: 2-1/2" 3450 RPM: 2"
AMP DRAW (full load): Motor and Voltage Dependent
CORD LENGTH: 25'
VOLTAGE: Available in 208v/230v 1-phase OR 208v/230v/460v/575v 3-phase
MAXIMUM LIQUID TEMPERATURE: 140 degrees F (60 deg C)
