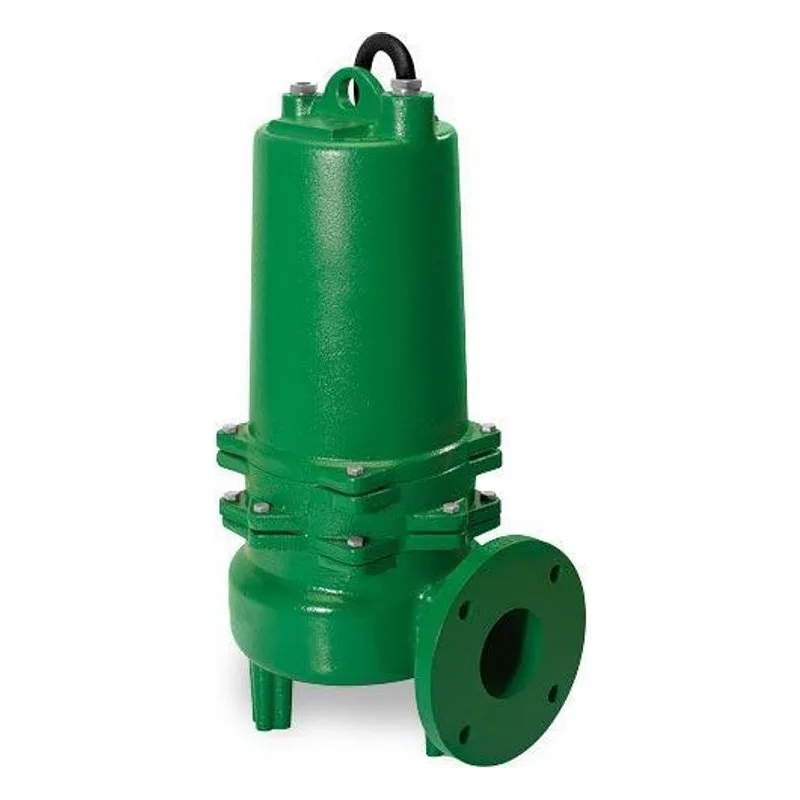

3RMW15M2

Myers 3RMW Series Submersible Wastewater Vortex Pumps Features And Benefits:
Recessed impeller design has completely open passage in volute
Operates without vibration or cavitation over entire performance curve
Operates near shutoff without harming pump
Oil-filled motor for maximum heat dissipation and constant bearing lubrication.
Heat sensor thermostats embedded in windings protect motor from overheat conditions.
Seal leak probes warn of moisture entry; helps prevent costly motor burnout (dual seal only).

Myers 3RMV Series Submersible Wasewater Votex Pumps General Specifications:
HORSEPOWER: Available in 1 to 3 HP models
MAXIMUM HEAD: 51 ft. (15.5m)
MAXIMUM CAPACITY: 280 GPM (17.6 LPM)
BODY CONSTRUCTION: Cast Iron, Class 30,ASTM A48
IMPELLER: Recessed, Ductile Iron, Class 65, ASTM A536
MECHANICAL SEAL (STANDARD): Carbon and Ceramic
MECHANICAL SEAL (OPTIONAL): Tungsten Carbide
PUMP, MOTOR SHAFT: 416 Stainless Steel
FASTENERS: 300 series Stainless Steel
MAX SOLIDS HANDLING SIZE: 1750 RPM: 2-1/2" (63.5mm) / 3450 RPM: 2" (50.6mm)
MAX INTERMITTENT LIQUID TEMP: 140ºF (60ºC)
DISCHARGE: 3" Flanged, Horizontal
MINIMUM SUMP DIAMETER (DUPLEX): 48 in. (1.2m)
