3WHV20M4

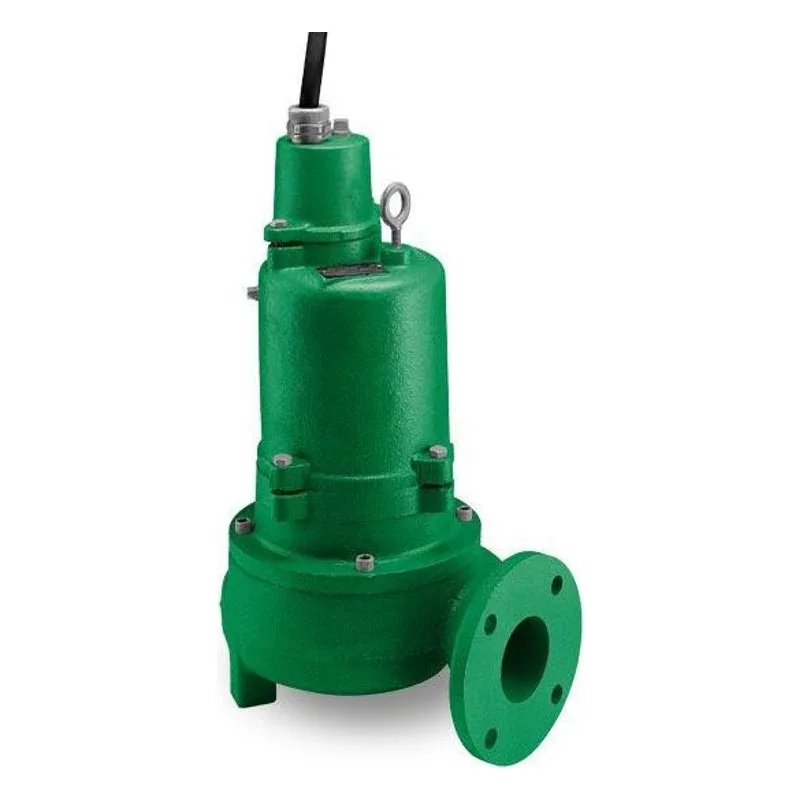

Myers 3WHV Series Solids Handling Pumps Features And Benefits:
High-volume capacity for commercial use
Durable motor for long-lasting performance
Offered in 1-1/2, 2, 3 & 5 HP models
Available with horizontal discharge (3WHV) or vertical discharge (V3WHV)
Oil-filled for maximum heat dissipation and constant bearing lubrication
On-winding overload (1Ø) protects motor
High-efficiency hydraulics
Two-vane rounded port impellers pass 2-1/2” solids wit

Myers 3WHV Series Solids Handling Pumps General Specifications:
BODY CONSTRUCTION: Cast Iron
HORSEPOWER: Available in 1-1/2, 2, 3, and 5 HP
MAXIMUM HEAD: 48' (14.6 m)
MAXIMUM CAPACITY: 400 GPM (1,511 LPM)
FLOW at 10' LIFT: Model and Horsepower Dependent
MINIMUM SUMP DIAMETER: Duplex: 60"
DISCHARGE PIPE SIZE: 3" (flanged)
DISCHARGE ORIENTATION: Horizontal (model 3WHV) or Vertical (model V3WHV)
MAXIMUM SOLIDS HANDLING SIZE: 2-1/2"
CORD LENGTH: 25'
VOLTAGE: Available in 230v 1-phase OR 208v/230v/460v/575v 3-phase
MAXIMUM LIQUID TEMPERATURE: 140 degrees F (60 deg C)
