200B

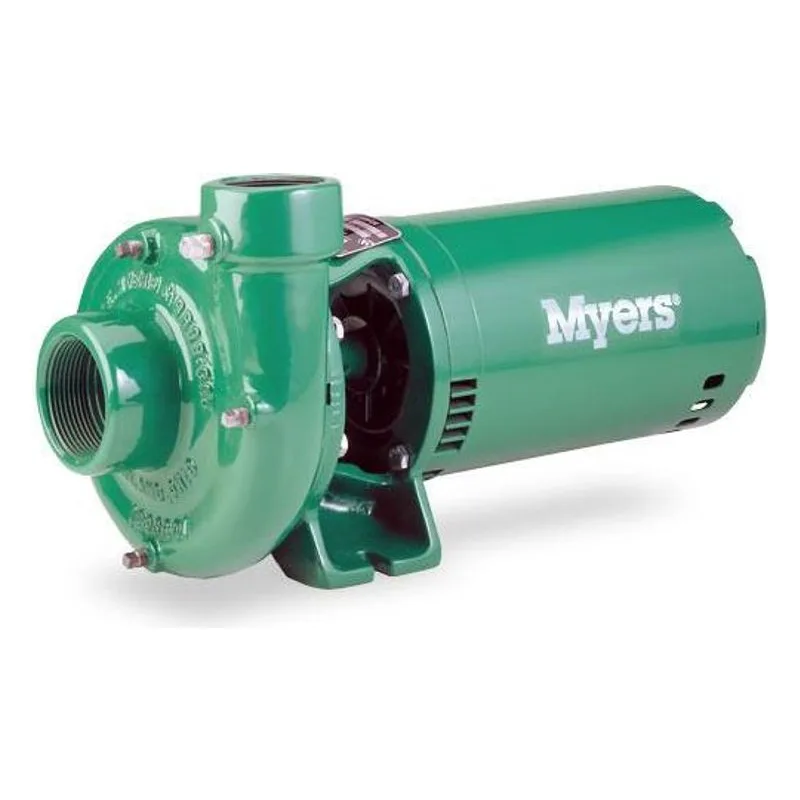

Myers Centri-Thrift Series Features And Benefits:
Features And BenefitsMyers Centri-Thrift Series
High head capabilities to 140 feet Flow capacities to 240 GPM
Available with 1-1/4", 1-1/2", and 2" discharge sizes
Choice of complete unit or pump end assembly

Myers Centri-Thrift Series General SpecificationS:
BODY CONSTRUCTION: High Density Gray Iron
HORSEPOWER: Available in 2, 3, 5, and 7-1/2 HP
MAXIMUM CAPACITY: 240 GPM (model 200M)
FLOW at 10' LIFT and 30 PSI: approx 125 GPM
MAX LIFT: 25'
MAXIMUM DISCHARGE PRESSURE: 60 PSI
MAXIMUM INLET PRESSURE:
MAXIMUM TOTAL PRESSURE:
SUCTION SIZE: 125M: 1-1/2" 150M: 2" 200M: 2-1/2" (all NPT)
DISCHARGE SIZE: 125M: 1-1/4" 150M 1-1/2" 200M: 2" (all NPT)
AMP DRAW (full load): Voltage and Model Dependent
VOLTAGE: 230v/1115v AC 1-phase OR 230v/460v AC 3-phase (model dependent)
MAXIMUM WATER TEMPERATURE:
IMPELLER: Brass
SHAFT SEAL: Carbon/Ceramic Mechanical w/ Stainless Steel Parts
VOLUTE CASE: High Tensile Gray Iron
BRACKET: High Tensile Gray Iron
