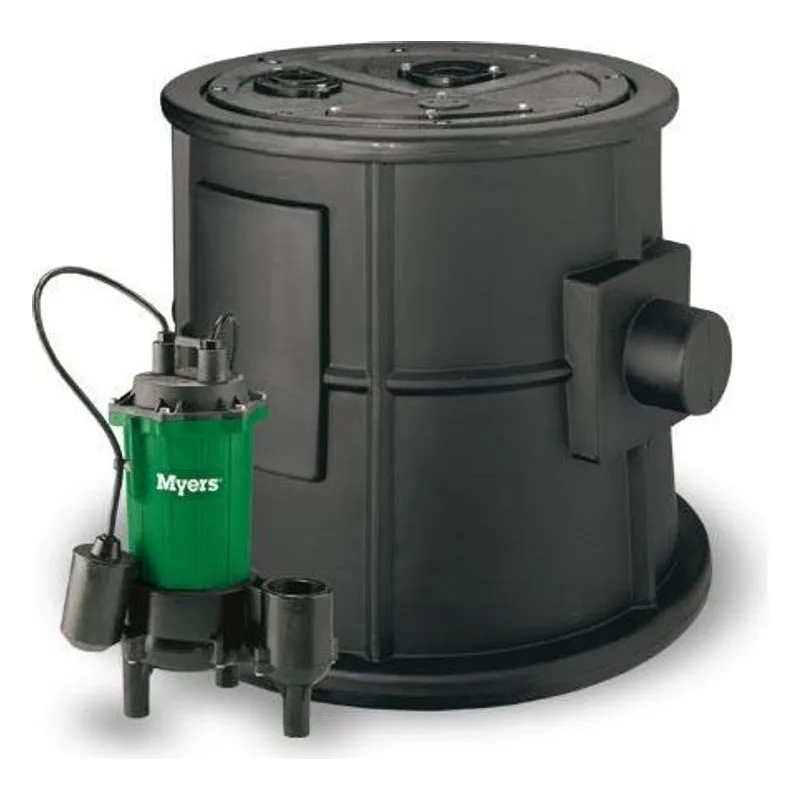

CMV-BP

Myers CMV Sewage Basin Pro Package Features And Benefits:
Pump is pre-installed in basin, with integral torque stops to ensure stability
Oil-filled motor for maximum heat dissipation and continuous bearing lubrication
Recessed vortex impeller provides minimal radial loading for long bearing life
Engineered for many years of maintenance-free operation
Wide-angle, mercury-free mechanical float switch for maximum drawdown
Recessed vortex impeller operates completely out of volute and provides free flow through passage for solids and liquids
Durable motor will deliver many years of reliable service
Available with alarm, optional

Myers CMV Sewage Basin Pro Package General Specifications:
BODY CONSTRUCTION: Pump: Thermoplastic Basin: Structural Foam
HORSEPOWER: 1/2 HP
MAXIMUM HEAD: 18'
MAXIMUM CAPACITY: 95 GPM
FLOW at 10' LIFT: 60 GPM
SWITCH TYPE: Tethered
DISCHARGE PIPE SIZE: 2" NPT
MAXIMUM SOLIDS HANDLING SIZE: 2"
AMP DRAW (full load): 12 Amps
CORD LENGTH: 20'
VOLTAGE: 115v AC, 60 Hz
MAX INTERMITTENT LIQUID TEMP: 140 degrees F (60 deg C)
