Home Myers CMV5 Sewage PumpsCMV5A-11

Image shown may not be actual product

CMV5A-11

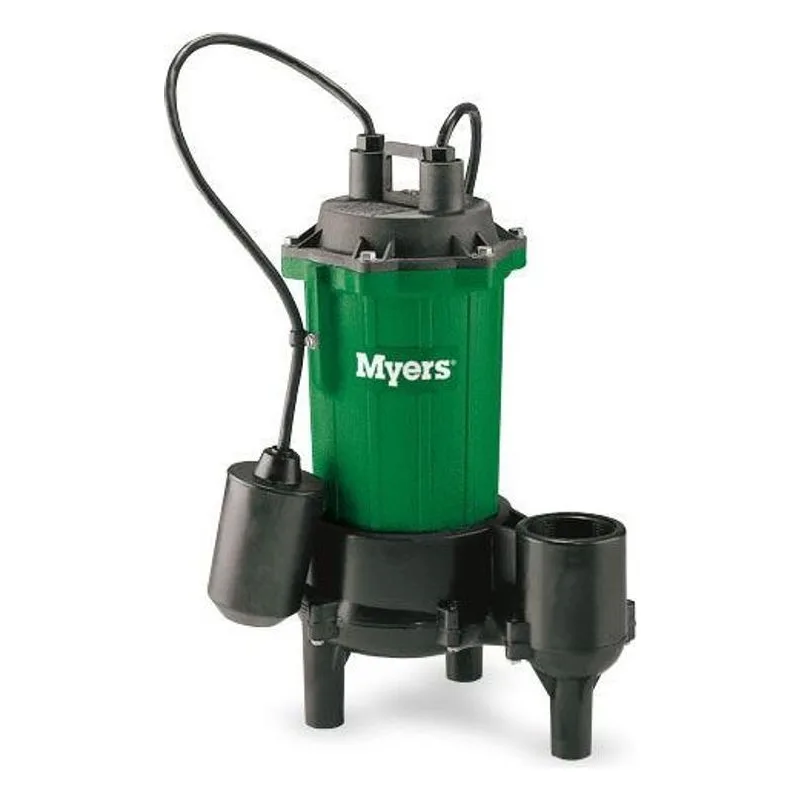

Myers Pumps CMV5A-11 Solids Handling Sewage Pump, 1/2 HP, 115 Volts, 1 Phase, 2" Discharge, 2" Solids

Brand: Myers

Series:

CMV5 Sewage Pumps

Item: CMV5A-11Model #: 24682D100

Retail Price: $744.80

Ships within 1 business day (in-stock items). Delivery typically 1-5 business days.

Returns accepted within 30 days. View Returns Policy

Estimate Shipping

Zip Code

Overview

Myers Pumps CMV5A-11 Solids Handling Sewage Pump, 1/2 HP, 115 Volts, 1 Phase, 2" Discharge, 2" Solids

Literature & Manuals

Find the manuals, product sheets and all the information you need

Type	Title	Link
Data Sheets	CMV5 Series Sewage Specification	View
Installation & Operation Manuals	CMV5 Series Sewage Manual	View

Series Information

CMV5 Sewage Pumps Information

Features & Benefits
Myers CMV5 Series (2" Solids) Sewage Features and Benefits: Wide-angle, mercury-free mechanical float switch for maximum drawdown Recessed vortex impeller operates completely out of volute and provides free flow through passage for solids and liquids Oil-filled motor for maximum heat dissipation and continuous bearing lubrication Recessed vortex impeller provides minimal radial loading for long bearing life
General Description
Myers CMV5 Series (2" Solids) Sewage General Specifications: BODY CONSTRUCTION: Cast Iron HORSEPOWER: 1/2 HP MAXIMUM HEAD: 18' MAXIMUM CAPACITY: 95 GPM FLOW at 10' LIFT: 60 GPM SWITCH TYPE: Tethered MINIMUM SUMP DIAMETER: Simplex: 18" Duplex: 30" DISCHARGE PIPE SIZE: 2" NPT MAXIMUM SOLIDS HANDLING SIZE: 2" AMP DRAW (full load): 12 Amps CORD LENGTH: 20' (16/3 SJTW) VOLTAGE: 115V AC, 60 Hz MAX INTERMITTENT LIQUID TEMP: 140 degrees F (60 deg C)

Popular Series

Series associated to this product and brand
