ED-MS33PV10

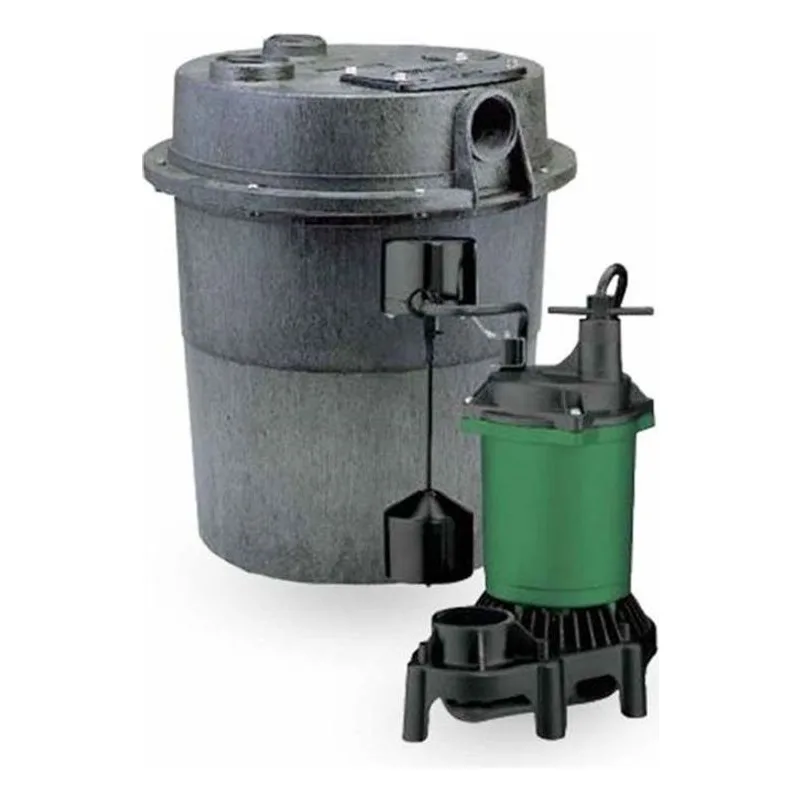

ED-MS33PV10 Myers Sink Pump System - Package includes: 14x16 structural foam basin and lid, PVC discharge pipe and the MS33PV10 sump pump 1/3 HP, 115 Volts, 60Hz, Single Phase, 1-1/2" NPT Discharge, Solids to 3/16", Basin= 14-1/2" W x 16" H, 5 Gal, 10' Cord, Piggy Back Vertical Float Switch. Manufactured by Pentair.

Brand: Myers

Series:

ED33 Sink Pump System

Item: ED-MS33PV10

Retail Price: $580.00

Ships within 1 business day (in-stock items). Delivery typically 1-5 business days.

Returns accepted within 30 days. View Returns Policy

Estimate Shipping

Zip Code

Overview

Literature & Manuals

Find the manuals, product sheets and all the information you need

Type	Title	Link
Data Sheets	ED33 Sink Pump System Specification	View
Installation & Operation Manuals	ED33 Sink Pump System Manual	View

Series Information

ED33 Sink Pump System Information

Features & Benefits
Myers ED33 Sink Pump System Features And Benefits: 1/3 HP Pre-packaged sink/pump system is ready for quick application Basin Features: High-impact engineered resin, exterior hardware and stainless steel construction Pump is Model MDC33V1 1-1/2" (38 mm) NPT discharge Carbon/ceramic shaft seal Piggyback-style float for automatic or manual operation Oil-filled motor with automatic reset overload provides safe operation Octagonal shape, compact size, 6-gallon useable capacity Easily replaceable power cord with optional lengths available Molded reuseable PNC gasket lid seal Basin dimensions are 15-1/16" W x 13-3/8" H (11-9/16" from floor to center of inlet)
General Description
Myers ED33 Sink Pump System General Specifications: BODY CONSTRUCTION: Pump: Cast Iron & Thermoplastic / Basin: Polyethylene HORSEPOWER: 1/3 HP MAXIMUM CAPACITY: 48 GPM FLOW at 10' LIFT: 40 GPM MAXIMUM HEAD: 24' DISCHARGE SIZE: 1-1/2" NPT AMP DRAW (full load): 9.8 Amps VOLTAGE: 115v AC, 60 Hz CORD LENGTH: 10' MAXIMUM WATER TEMPERATURE: 130°F (54°C) SWITCH OPERATION: On: 6.5" Off: 2" MAXIMUM SOLIDS HANDLING SIZE: 1/2"

Related Products and Parts

Popular Series

Series associated to this product and brand

ED-MS33PV10

Type

Title

Link

ED33 Sink Pump System Specification

View

ED33 Sink Pump System Manual

View

Features & Benefits

Myers ED33 Sink Pump System Features And Benefits:
1/3 HP
Pre-packaged sink/pump system is ready for quick application
Basin Features: High-impact engineered resin, exterior hardware and stainless steel construction
Pump is Model MDC33V1 1-1/2" (38 mm) NPT discharge
Carbon/ceramic shaft seal
Piggyback-style float for automatic or manual operation
Oil-filled motor with automatic reset overload provides safe operation
Octagonal shape, compact size, 6-gallon useable capacity
Easily replaceable power cord with optional lengths available
Molded reuseable PNC gasket lid seal
Basin dimensions are 15-1/16" W x 13-3/8" H (11-9/16" from floor to center of inlet)

General Description

Myers ED33 Sink Pump System General Specifications:
BODY CONSTRUCTION: Pump: Cast Iron & Thermoplastic / Basin: Polyethylene
HORSEPOWER: 1/3 HP
MAXIMUM CAPACITY: 48 GPM
FLOW at 10' LIFT: 40 GPM
MAXIMUM HEAD: 24'
DISCHARGE SIZE: 1-1/2" NPT
AMP DRAW (full load): 9.8 Amps
VOLTAGE: 115v AC, 60 Hz
CORD LENGTH: 10'
MAXIMUM WATER TEMPERATURE: 130°F (54°C)
SWITCH OPERATION: On: 6.5" Off: 2"
MAXIMUM SOLIDS HANDLING SIZE: 1/2"
