ED33V1

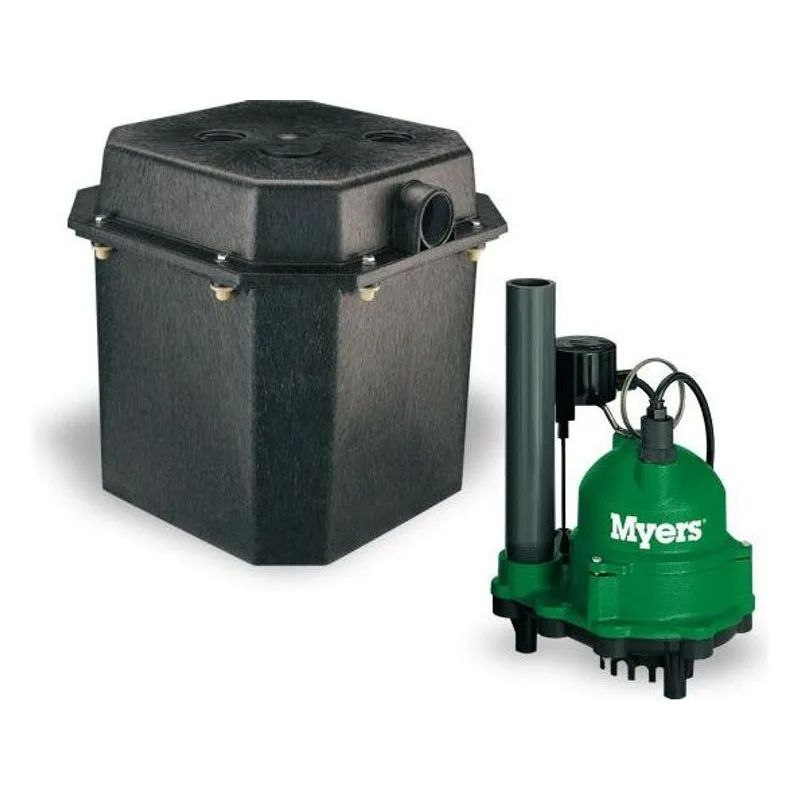

Myers ED33 Sink Pump System Features And Benefits:
1/3 HP
Pre-packaged sink/pump system is ready for quick application
Basin Features: High-impact engineered resin, exterior hardware and stainless steel construction
Pump is Model MDC33V1 1-1/2" (38 mm) NPT discharge
Carbon/ceramic shaft seal
Piggyback-style float for automatic or manual operation
Oil-filled motor with automatic reset overload provides safe operation
Octagonal shape, compact size, 6-gallon useable capacity
Easily replaceable power cord with optional lengths available
Molded reuseable PNC gasket lid seal
Basin dimensions are 15-1/16" W x 13-3/8" H (11-9/16" from floor to center of inlet)

Myers ED33 Sink Pump System General Specifications:
BODY CONSTRUCTION: Pump: Cast Iron & Thermoplastic / Basin: Polyethylene
HORSEPOWER: 1/3 HP
MAXIMUM CAPACITY: 48 GPM
FLOW at 10' LIFT: 40 GPM
MAXIMUM HEAD: 24'
DISCHARGE SIZE: 1-1/2" NPT
AMP DRAW (full load): 9.8 Amps
VOLTAGE: 115v AC, 60 Hz
CORD LENGTH: 10'
MAXIMUM WATER TEMPERATURE: 130°F (54°C)
SWITCH OPERATION: On: 6.5" Off: 2"
MAXIMUM SOLIDS HANDLING SIZE: 1/2"
