MCI033

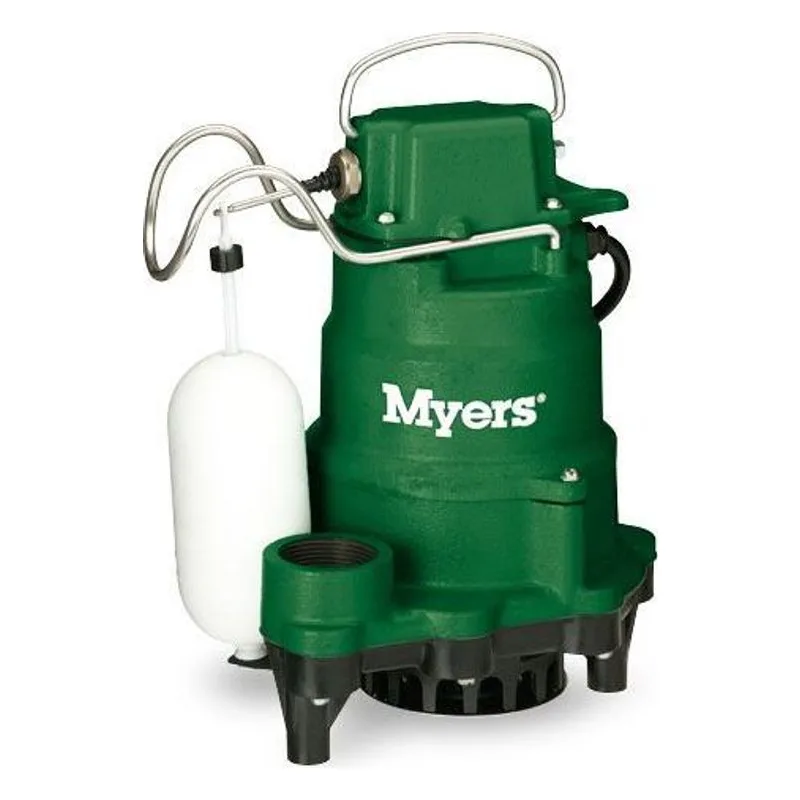

Myers MCI033 MCI050 Sump Pump Features and Benefits:
2-pole switch design allows for operation in sump diameters of 10" or more
Also available with no siwtch for control panel or manual operation
Rugged, oil-cooled motor provides continuous bearing lubrication and maximizes heat dissipation
Lubricated ball bearings and shaft seal for longer service life
Shaded pole motor eliminates failure-prone switches and relays
Long-life carbon/ceramic seal protects motor against water leakage
Heat sensor overload protection with automatic reset when motor cools to safe operating temperature
Anti-airlock hole in base reduces added labor
Pump, intake screen volute base, switch and power cord are serviceable

Myers MCI033 MCI050 Sump Pump General Specifications:
BODY CONSTRUCTION: Cast Iron with Fiberglass Reinforced Polypropylene Base
HORSEPOWER: MCI033 Series: 1/3 HP MCI050 Series: 1/2 HP
MAXIMUM HEAD: MCI033 Series: 24' MCI050 Series: 32'
MAXIMUM CAPACITY: MCI033 Series: 47' MCI050 Series: 60 GPM
FLOW at 10' LIFT: MCI033 Series: 40 GPM MCI050 Series: 54 GPM
SWITCH TYPE: Available w/ Vertical Float or No Float (Manual or Control Panel operation)
SWITCH 'ON' LEVEL: 9"
SWITCH 'OFF' LEVEL: 4"
MINIMUM SUMP DIAMETER: 10"
DISCHARGE PIPE SIZE: 1-1/2" NPT
MAXIMUM SOLIDS HANDLING SIZE: 1/2"
AMP DRAW (full load): MCI033 Series: 9.8 Amps MCI050 Series: 12 Amps
CORD LENGTH: 10' or 20'
VOLTAGE: 115v AC, 60 Hz
MAXIMUM WATER TEMPERATURE: 130F (54C)
