ME3F-11-01

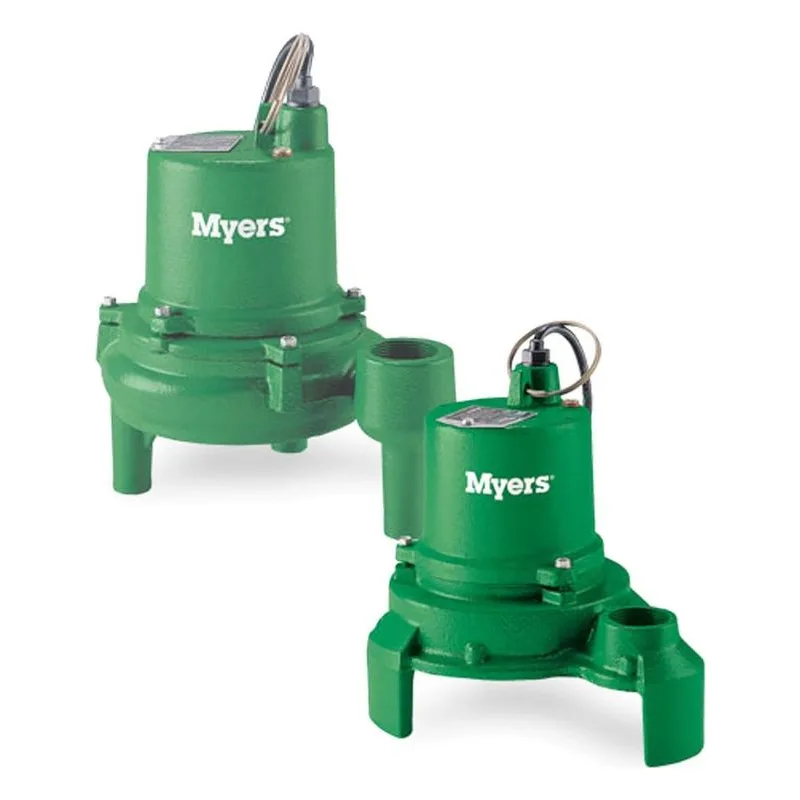

Myers ME3 Elluent Pump Features and Benefits:
Oil-filled motor for maximum heat dissipation and continuous bearing lubrication
Overload protected, shaded pole motor eliminates starting switches and relays which are prone to fail
Heavy cast iron motor housing and volute case dissipate heat, allow motor to run cooler for extended life
Field-tested, wide-angle, mercury-free mechanical float switch for maximum drawdown (automatic piggyback models only)
Automatic pump models can be operated manually by unplugging piggyback switch and plugging pump directly into outlet
Passes full 3/4” solids

Myers ME3 Elluent Pump General Specifications:
BODY CONSTRUCTION: Heavy Cast Iron
HORSEPOWER: Available in 1/3 or 1/2 HP
MAXIMUM HEAD: ME3H: 35' (10.7m) ME3F: 31' (9.5m)
MAXIMUM CAPACITY: ME3H: 36 GPM (136 LPM) ME3F: 66GPM (349 LPM)
FLOW at 10' LIFT: ME3H: 32 GPM ME3F: 59 GPM
SWITCH TYPE: Wide-Angle Mercury-Free Mechanical Float
MINIMUM SUMP DIAMETER: Simplex: 24" Duplex: 36"
DISCHARGE PIPE SIZE: 1-1/2" NPT
MAXIMUM SOLIDS HANDLING SIZE: 3/4"
AMP DRAW (full load): 6 Amps on 230v / 12 Amps on 115v
CORD LENGTH: 20'
VOLTAGE: Available in 230v or 115v AC, 60 Hz
MAXIMUM LIQUID TEMPERATURE: 140F (60C)
