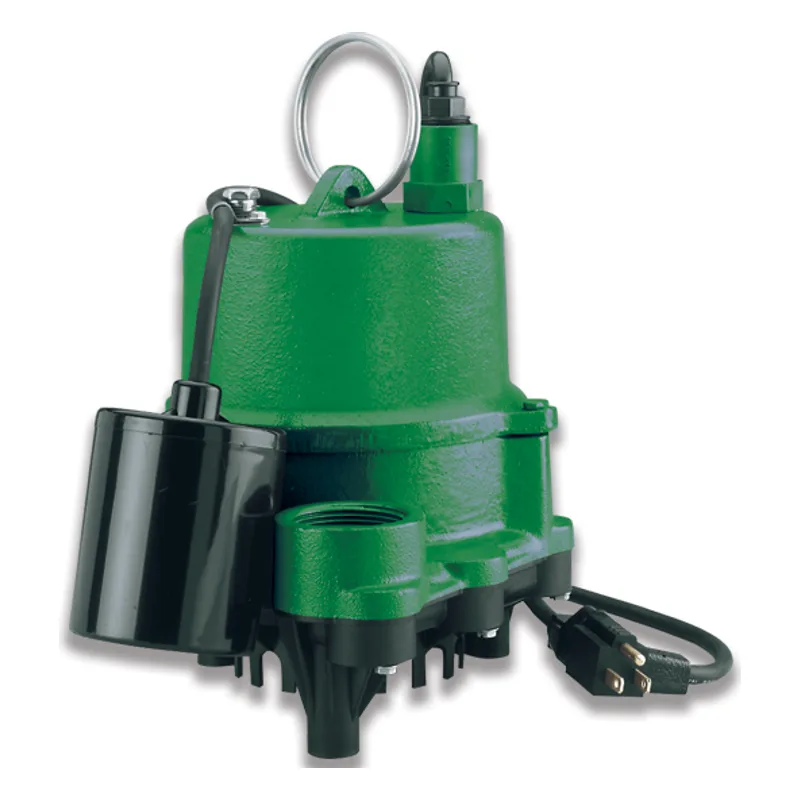

ME40110M

Myers ME4 Features & Benefits:
Construction – Heavy-duty cast iron motor housing and upper volute. Corrosion-resistant composite base ideal for effluent applications.
Bearings and Mechanical Seal – Permanently lubricated for long life.
Cord Seal – Prevents oil loss from and protection for motor if cord is damaged.
Overload Protection – Built-in thermal overload with automatic reset.
Intake – Built-in suction screen.

Myers ME4 General Specifications:
Applications: Septic Tank Effluent Removal, Sump Drainage, and Circulation
Capacities: 62 GPM 235 LPM
Shut-off head: 32’ 9.8 m
Operation: Tethered: On: 14” 355.6 mm | Off: 5” 127.0 mm
Solids handling: 1/2” spherical capability 12.7 mm
Intermittent liquid temp: 130°F 55°C
Motor: 4/10 HP, 1550 RPM, 115 Volt, 60 Hz. Class B insulation. Oil-filled shaded pole containing built-in thermal overload protection with automatic reset.
Electrical data: 115 V, 60 Hz, single phase
Acceptable pH range: 6-8
Shaft seal: Mechanical carbon/ceramic
Motor housing: Cast iron
Upper volute case: Thermoplastic
Lower volute case: Thermoplastic Vortex
Power cord: 10’ or 20’ water resistant 16-3 gauge, type SJTW-A/SJTW with integrally grounded 3-prong plug.
Discharge, NPT: 1-1/2” 38 mm
Min. sump diameter: Simplex 18” 457 mm | Duplex 30” 762mm
