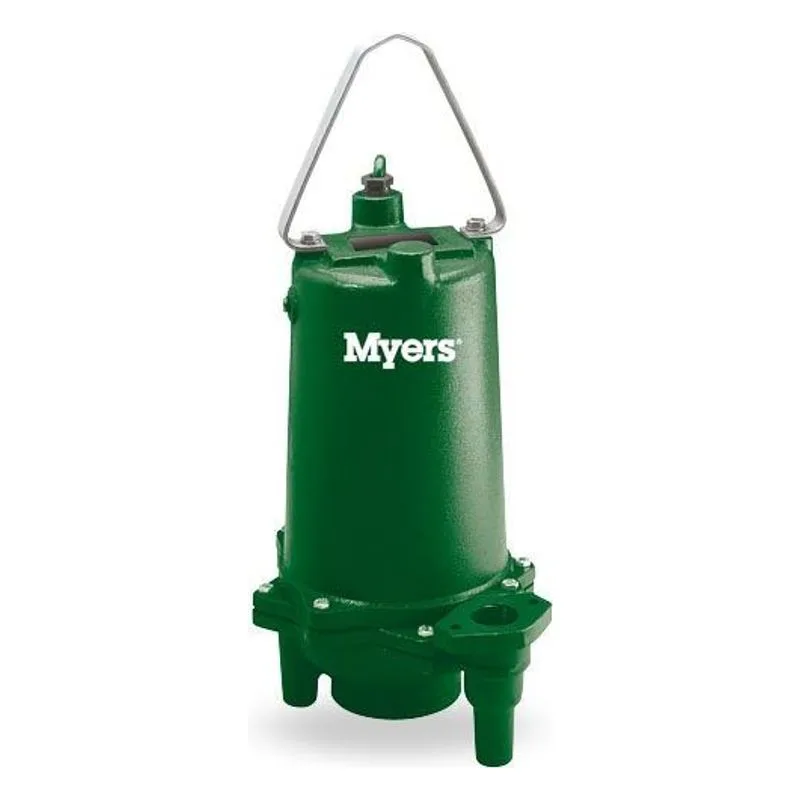

MRG20-21

Myers Residential Grinder Pumps Features And Benefits:
Oil-filled motor for maximum heat dissipation and constant bearing lubrication
Recessed impeller reduces radial bearing loads and increases bearing life
High-torque capacitor starts single-phase motor for assured starting under heavy load; no external capacitor needed
Heavy-duty 2 HP listed, wide-angle float switch
On-Winding current and temperature-sensitive overload
Designed for easy maintenance
Shredding ring and grinder impeller are replaceable without dismantling pump or motor (440 Stainless Steel, 58-60 Rockwell)
300 Series Stainless Steel fasteners

Myers Residential Grinder Pumps General Specications:
BODY CONSTRUCTION: Cast Iron
HORSEPOWER: 2 HP
MAXIMUM HEAD: 105' (32 m)
MAXIMUM CAPACITY: 45 GPM (170 LPM)
FLOW at 10' LIFT: n/a 10' Lift is Below Recommended Performance Curve
SWITCH TYPE:
MINIMUM SUMP DIAMETER: Simplex: 24" Duplex: 36"
DISCHARGE PIPE SIZE: 1-1/4" NPT
MAXIMUM SOLIDS HANDLING SIZE: n/a
AMP DRAW (full load): 15 Amps
CORD LENGTH: 20'
VOLTAGE: 230v AC 1-phase 60 Hz
MAXIMUM LIQUID TEMPERATURE: 140 degrees F (60 deg C)
