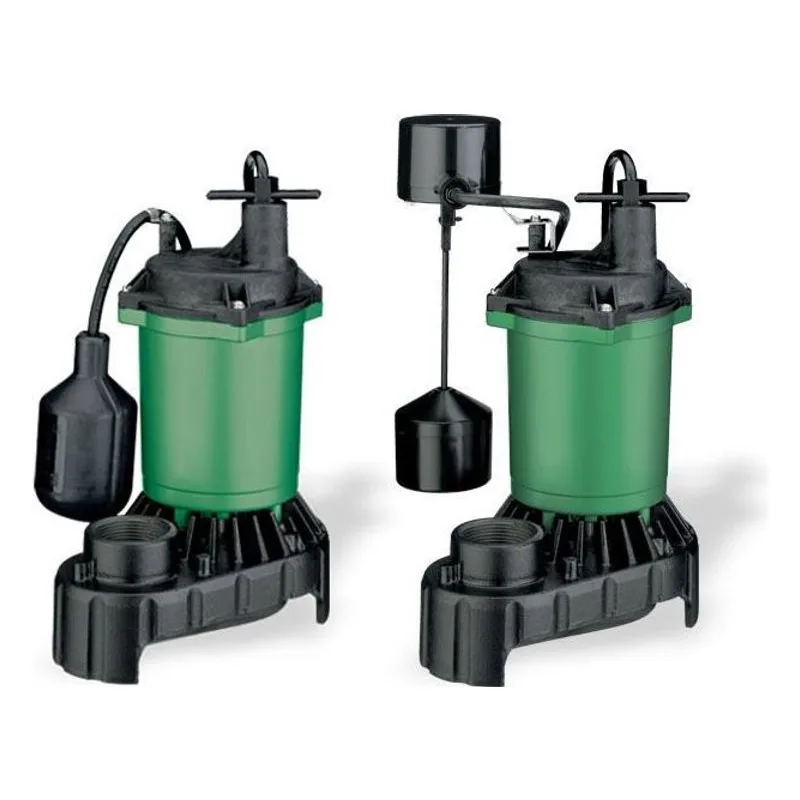

Image shown may not be actual product

MS33D20

MS33D20 Myers MS Series - Zinc And Cast Iron Sump Pump - 1/3 HP, 115 Volts, 60 Hz, Single Phase, 3000 RPM, 1-1/2" Discharge, Solids to: 1/4", Piggy Back Diaphragm Float Switch, 20' Cord, Minimum Recommended Sump Diameter: Tethered Switch: 14" (356mm) / Vertical Switch: 10" (254mm).

Brand: Myers

Series:

MS33 MS50 Sump Pumps

Item: MS33D20

Request a Quote

Ships within 1 business day (in-stock items). Delivery typically 1-5 business days.

Returns accepted within 30 days. View Returns Policy

Estimate Shipping

Zip Code

Overview

Literature & Manuals

Find the manuals, product sheets and all the information you need

Type	Title	Link
Data Sheets	MS33 MS50 MS Series Sump Pump Datasheet	View
Installation & Operation Manuals	MS33 MS50 MS Series Sump Pump Manual	View

Series Information

MS33 MS50 Sump Pumps Information

Features & Benefits
Meyers MS33 / MS50 Sump Pump Features and Benefits: Maintenance-free operation Wide-angle or vertical mechanical switch for small 10" diameter sumps Dual ball-bearing motor and additional lip seal for durability and longer pump life Durable PSC motor for years of service Oil-filled PSC motor for maximum heat dissipation and continuous bearing lubrication Thermal overload protection with automatic reset Piggy-back style float for automatic or manual operation CSA Listed
General Description
Meyers MS33 / MS50 Sump Pump General Specifications: HORSEPOWER: Available in 1/3 or 1/2 HP MAX CAPACITY: 66 GPM (250 LPM) SHUT-OFF HEAD: 25' (7.6 m) VERTICAL FLOAT SWITCH SETTINGS: On: 8" (203 mm) / 3.5" (89 mm) TETHERED FLOAT SWITCH SETTINGS: On: 14" (356 mm) / Off: 6" (52 mm) INTERMITTENT LIQUID TEMP: Up To 140°F (60°C) 1/3 HP MOTOR SPECS: 115V AC, 60 Hz, 3.9 FLA; Shaded Pole Motor 3000 RPM with Thermal Overload protection 1/2 HP MOTOR SPECS: 115V AC, 60 Hz, 4.1 FLA PSC Motor 3000 RPM with Thermal Overload Protection POWER CORD: 8', SJTW (2.4 m) MAX SOLIDS HANDLING CAPACITY: 1/4" (6.4 mm) DISCHARGE SIZE: 1-1/2" MINIMUM SUMP DIAMETER: Tethered Switch: 14" (356mm) / Vertical Switch: 10" (254mm)
Engineering Data - Tech
*

Related Products and Parts

Popular Series

Series associated to this product and brand

MS33D20

Type

Title

Link

MS33 MS50 MS Series Sump Pump Datasheet

View

MS33 MS50 MS Series Sump Pump Manual

View

Features & Benefits

Meyers MS33 / MS50 Sump Pump Features and Benefits:
Maintenance-free operation
Wide-angle or vertical mechanical switch for small 10" diameter sumps
Dual ball-bearing motor and additional lip seal for durability and longer pump life
Durable PSC motor for years of service
Oil-filled PSC motor for maximum heat dissipation and continuous bearing lubrication
Thermal overload protection with automatic reset
Piggy-back style float for automatic or manual operation
CSA Listed

General Description

Meyers MS33 / MS50 Sump Pump General Specifications:
HORSEPOWER: Available in 1/3 or 1/2 HP
MAX CAPACITY: 66 GPM (250 LPM)
SHUT-OFF HEAD: 25' (7.6 m)
VERTICAL FLOAT SWITCH SETTINGS: On: 8" (203 mm) / 3.5" (89 mm)
TETHERED FLOAT SWITCH SETTINGS: On: 14" (356 mm) / Off: 6" (52 mm)
INTERMITTENT LIQUID TEMP: Up To 140°F (60°C)
1/3 HP MOTOR SPECS: 115V AC, 60 Hz, 3.9 FLA; Shaded Pole Motor 3000 RPM with Thermal Overload protection
1/2 HP MOTOR SPECS: 115V AC, 60 Hz, 4.1 FLA PSC Motor 3000 RPM with Thermal Overload Protection
POWER CORD: 8', SJTW (2.4 m)
MAX SOLIDS HANDLING CAPACITY: 1/4" (6.4 mm)
DISCHARGE SIZE: 1-1/2"
MINIMUM SUMP DIAMETER: Tethered Switch: 14" (356mm) / Vertical Switch: 10" (254mm)

Engineering Data - Tech
