MS33V10UP

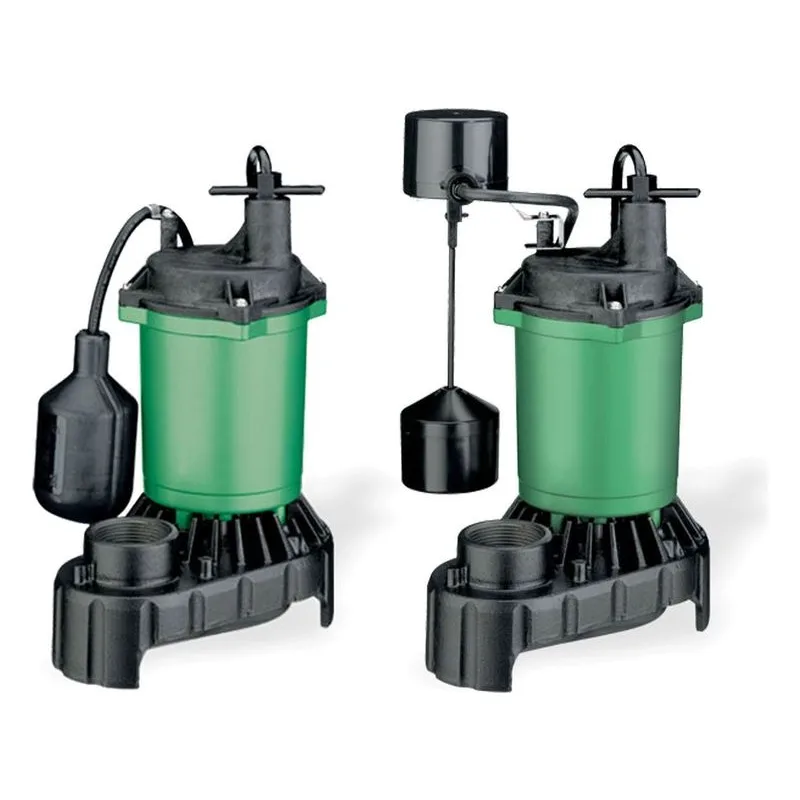

Meyers MS33 / MS50 Sump Pump Features and Benefits:
Maintenance-free operation
Wide-angle or vertical mechanical switch for small 10" diameter sumps
Dual ball-bearing motor and additional lip seal for durability and longer pump life
Durable PSC motor for years of service
Oil-filled PSC motor for maximum heat dissipation and continuous bearing lubrication
Thermal overload protection with automatic reset
Piggy-back style float for automatic or manual operation
CSA Listed

Meyers MS33 / MS50 Sump Pump General Specifications:
HORSEPOWER: Available in 1/3 or 1/2 HP
MAX CAPACITY: 66 GPM (250 LPM)
SHUT-OFF HEAD: 25' (7.6 m)
VERTICAL FLOAT SWITCH SETTINGS: On: 8" (203 mm) / 3.5" (89 mm)
TETHERED FLOAT SWITCH SETTINGS: On: 14" (356 mm) / Off: 6" (52 mm)
INTERMITTENT LIQUID TEMP: Up To 140°F (60°C)
1/3 HP MOTOR SPECS: 115V AC, 60 Hz, 3.9 FLA; Shaded Pole Motor 3000 RPM with Thermal Overload protection
1/2 HP MOTOR SPECS: 115V AC, 60 Hz, 4.1 FLA PSC Motor 3000 RPM with Thermal Overload Protection
POWER CORD: 8', SJTW (2.4 m)
MAX SOLIDS HANDLING CAPACITY: 1/4" (6.4 mm)
DISCHARGE SIZE: 1-1/2"
MINIMUM SUMP DIAMETER: Tethered Switch: 14" (356mm) / Vertical Switch: 10" (254mm)

*
