M118A

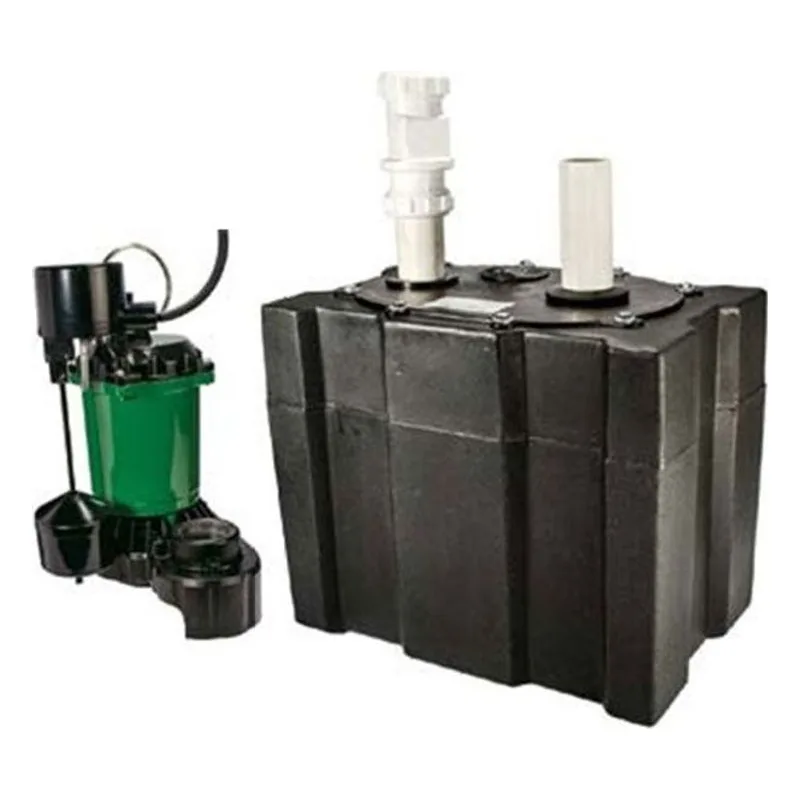

M118A Myers Packaged Above-Floor Pump System - Package includes: 18x22 structural foam basin and lid, PVC discharge pipe, check valve and the MS33V10 sump pump 1/3 HP, 115 Volts, 60Hz, Single Phase, 1-1/2" NPT Discharge, Solids to 1/4", Basin= 17" W x 11" H x 14" H, 10 Gal, 10' Cord, Piggy Back Vertical Float Switch. Manufactured by Pentair.

Brand: Myers

Series:

MW Sewage Basin Pro Package

Item: M118AModel #: 519320007

Request a Quote

Ships within 1 business day (in-stock items). Delivery typically 1-5 business days.

Returns accepted within 30 days. View Returns Policy

Estimate Shipping

Zip Code

Overview

Literature & Manuals

Find the manuals, product sheets and all the information you need

Type	Title	Link
Data Sheets	MW Sewage Basin Pro Package Specifications	View
Installation & Operation Manuals	MW Sewage Basin Pro Package Manual	View

Series Information

MW Sewage Basin Pro Package Information

Features & Benefits
Myers MW Sewage Basin Pro Package Features And Benefits: Pump is pre-installed in basin, with integral torque stops to ensure stability Oil-filled motor for maximum heat dissipation and continuos bearing lubrication Recessed vortex impeller for free flow of liquids, solids up to 2" diameter Anti-floatation features include concrete splash lip and unique basin shape to keep the system from floating or becoming "un-installed" Integral 360° top grip for easy lifting and handling in tight spaces Stackable design allows fo compact inventory E-Z Switch Rod allows for removal of float switch without disassembling basin lid, or handling pump or plumbing. Additional clip for secondary float included; float sold separately Basin is a 24" x 24" structural foam construction; 45-gallon capacity Shallow 24"-deep basin reduces installation time for digging pit Concrete-proof cover insert protects the system from damage during rough-in and masonry work Available with alarm, optional
General Description
Myers MW Sewage Basin Pro Package General Specifications: BODY CONSTRUCTION: Pump: Class 30 Cast Iron Basin: Structural Foam HORSEPOWER: 1/2 HP MAXIMUM HEAD: 27' MAXIMUM CAPACITY: 135 GPM FLOW at 10' LIFT: 130 GPM DISCHARGE PIPE SIZE: 2" NPT MAXIMUM SOLIDS HANDLING SIZE: 2" AMP DRAW (full load): 9 Amps on 115v CORD LENGTH: 20' VOLTAGE: 115v AC, 60 Hz MAX INTERMITTENT LIQUID TEMP: 140 degrees F (60 deg C)

Related Products and Parts

Popular Series

Series associated to this product and brand

M118A

Type

Title

Link

MW Sewage Basin Pro Package Specifications

View

MW Sewage Basin Pro Package Manual

View

Features & Benefits

Myers MW Sewage Basin Pro Package Features And Benefits:
Pump is pre-installed in basin, with integral torque stops to ensure stability
Oil-filled motor for maximum heat dissipation and continuos bearing lubrication
Recessed vortex impeller for free flow of liquids, solids up to 2" diameter
Anti-floatation features include concrete splash lip and unique basin shape to keep the system from floating or becoming "un-installed"
Integral 360° top grip for easy lifting and handling in tight spaces
Stackable design allows fo compact inventory
E-Z Switch Rod allows for removal of float switch without disassembling basin lid, or handling pump or plumbing. Additional clip for secondary float included; float sold separately
Basin is a 24" x 24" structural foam construction; 45-gallon capacity
Shallow 24"-deep basin reduces installation time for digging pit
Concrete-proof cover insert protects the system from damage during rough-in and masonry work
Available with alarm, optional

General Description

Myers MW Sewage Basin Pro Package General Specifications:
BODY CONSTRUCTION: Pump: Class 30 Cast Iron Basin: Structural Foam
HORSEPOWER: 1/2 HP
MAXIMUM HEAD: 27'
MAXIMUM CAPACITY: 135 GPM
FLOW at 10' LIFT: 130 GPM
DISCHARGE PIPE SIZE: 2" NPT
MAXIMUM SOLIDS HANDLING SIZE: 2"
AMP DRAW (full load): 9 Amps on 115v
CORD LENGTH: 20'
VOLTAGE: 115v AC, 60 Hz
MAX INTERMITTENT LIQUID TEMP: 140 degrees F (60 deg C)
