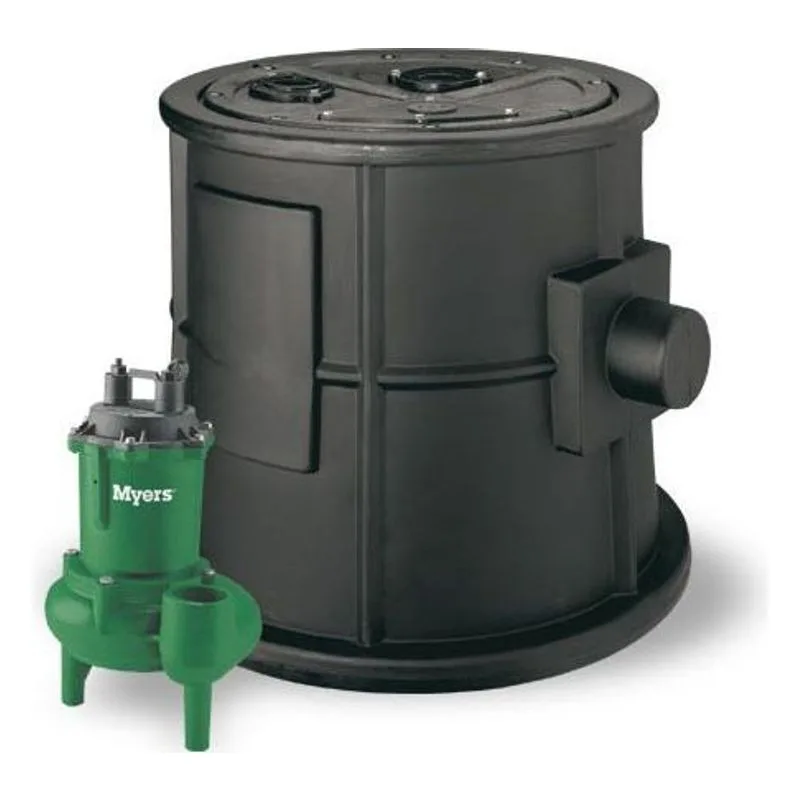

MW-BP

Myers MW Sewage Basin Pro Package Features And Benefits:
Pump is pre-installed in basin, with integral torque stops to ensure stability
Oil-filled motor for maximum heat dissipation and continuos bearing lubrication
Recessed vortex impeller for free flow of liquids, solids up to 2" diameter
Anti-floatation features include concrete splash lip and unique basin shape to keep the system from floating or becoming "un-installed"
Integral 360° top grip for easy lifting and handling in tight spaces
Stackable design allows fo compact inventory
E-Z Switch Rod allows for removal of float switch without disassembling basin lid, or handling pump or plumbing. Additional clip for secondary float included; float sold separately
Basin is a 24" x 24" structural foam construction; 45-gallon capacity
Shallow 24"-deep basin reduces installation time for digging pit
Concrete-proof cover insert protects the system from damage during rough-in and masonry work
Available with alarm, optional

Myers MW Sewage Basin Pro Package General Specifications:
BODY CONSTRUCTION: Pump: Class 30 Cast Iron Basin: Structural Foam
HORSEPOWER: 1/2 HP
MAXIMUM HEAD: 27'
MAXIMUM CAPACITY: 135 GPM
FLOW at 10' LIFT: 130 GPM
DISCHARGE PIPE SIZE: 2" NPT
MAXIMUM SOLIDS HANDLING SIZE: 2"
AMP DRAW (full load): 9 Amps on 115v
CORD LENGTH: 20'
VOLTAGE: 115v AC, 60 Hz
MAX INTERMITTENT LIQUID TEMP: 140 degrees F (60 deg C)
