MW50-21P-01

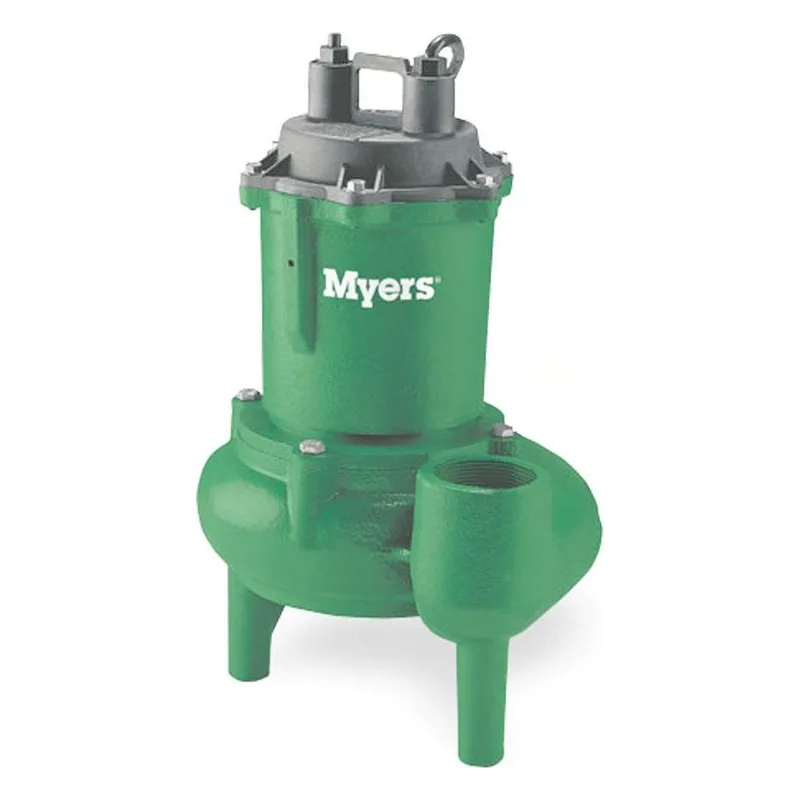

Myers MW50 Series Sewage Pumps Features And Benefits:
Enclosed design for high-efficiency pumping
Eliminates possibility of jamming between impeller and volute
Passes full 2" solids
Original performance can be restored if wear occurs by replacing volute seal ring
Oil-filled motor for maximum heat dissipation and continuous bearing lubrication
High-torque, permanent split capacitor (PSC) motors; no starting switches or relays to wear out
Field-tested, wide-angle, mercury-free piggyback mechanical float switch provides maximum drawdown (automatic models only)
Long, flexible type 6 seal provides high-pressure sealing with improved seal face protection by location
Lower ball bearing eliminates sleeve bearing wear and significantly reduces motor wear
Low-amp draw from the efficient PSC motor means less heat build-up

Myers MW50 Series Sewage Pumps General Specifications:
BODY CONSTRUCTION: Class 30 Cast Iron
HORSEPOWER: 1/2 HP
MAXIMUM HEAD: 27'
MAXIMUM CAPACITY: 135 GPM
FLOW at 10' LIFT: 130 GPM
SWITCH TYPE: Wide-Angle Mercury-Free Piggyback Mechanical Float
MINIMUM SUMP DIAMETER: Simplex: 24" Duplex: 36"
DISCHARGE PIPE SIZE: 2" NPT
MAXIMUM SOLIDS HANDLING SIZE: 2"
AMP DRAW (full load): 4.5 Amps on 230v / 9 Amps on 115v
CORD LENGTH: 20' (16/3 SJTW)
VOLTAGE: Available in 230v 1-phase or 115v, 60 Hz
MAX INTERMITTENT LIQUID TEMP: 140 degrees F (60 deg C)
