P52

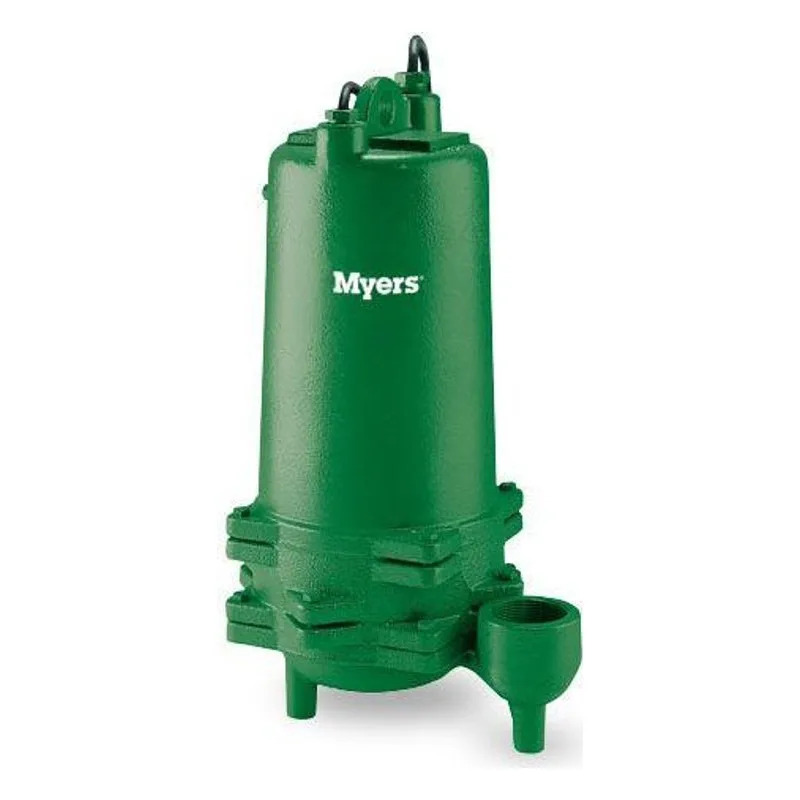

Myers P50 / P100 Effluent Pump Features and Benefits:
P Series effluent pumps are designed for years of maintenance-free operation
Single-vane, enclosed impeller provides steep, non-overloading performance curve for pressure collection and ST.E.P. systems; outperforms most pumps in its class
Enclosed impeller eliminates the possibility of jamming or corrosion between impeller and volute
Passes 3/4" spherical solids
Durable motor will deliver many years of reliable service
Oil-filled motor for maximum heat dissipation and continuous bearing lubrication
High-torque, permanent split capacitor (PSC), single-phase motors; no starting switches or relays to wear out
Double tandem seal configuration for extra motor protection, tough effluent pumping applications
Optional seal leak probes warn of seal leak condition; helps prevent costly motor damage
On-winding current and temperature-sensitive overload to protect against costly burnout
Volute seal ring is replaceable; restores pump to original performance if wear should occur
Motor is held in place by 4 screws; easily removed if service is ever needed

Myers P50 / P100 Effluent Pump General Specifications:
BODY CONSTRUCTION: Cast Iron
HORSEPOWER: 1/2 HP (P50) or 1 HP (P100)
MAXIMUM HEAD: 124' (P100)
MAXIMUM CAPACITY: 60 GPM (P100)
FLOW at 10' LIFT: 10' is Just Below Minimum Head Recommended
MINIMUM SUMP DIAMEER: Simplex: 24" Duplex: 36"
DISCHARGE PIPE SIZE: 1-1/2" NPT
MAXIMUM SOLIDS HANDLING SIZE: 3/4"
AMP DRAW (full load): Model and Voltage Dependent
CORD LENGTH: 20'
VOLTAGE: P50: 115v or 230v P100: 230v, 1-phase, 60 Hz
MAXIMUM LIQUID TEMPERATURE: 140 F (60 C)
