27400A245

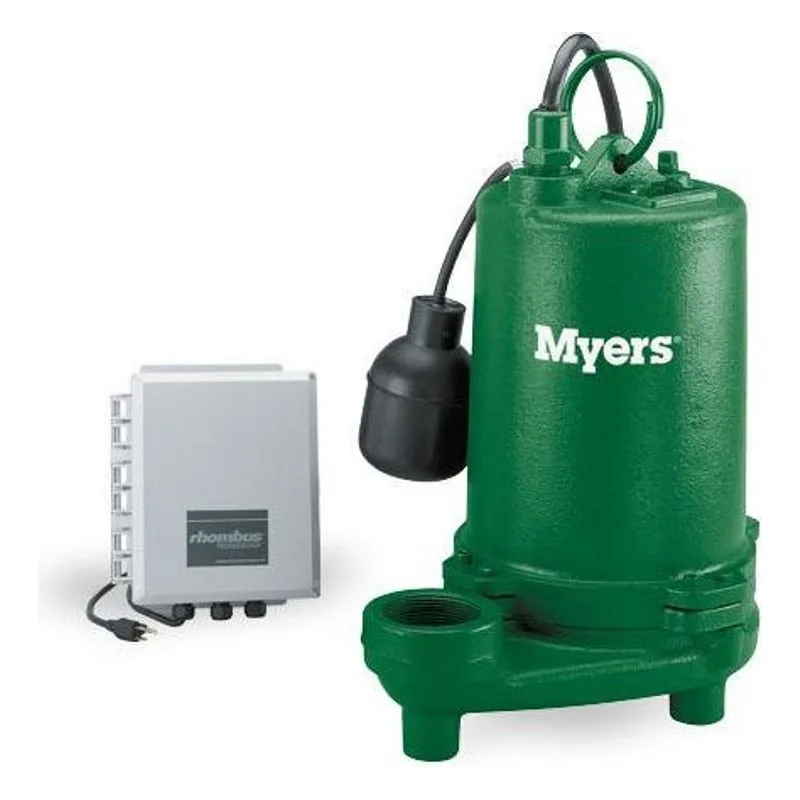

Myers S40HT Effluent Pump Features and Benefits:

All cast iron housing, volute case, and impeller resists the most extreme corrosive environments
Rugged-built, oil-filled motor for continuous bearing lubrication and maximum heat dissipation
Heat sensor overload protection with automatic reset when motor cools to a safe operating temperature
Lower ball bearing eliminates sleeve bearing wear and reduces motor wear
Non-clog vortex style, ejector vanes for seal protection
Allows easy disassembly after extended service
Prevents oil loss from - and moisture protection for - motor
Permanently lubricated for long life
Heavy-duty lift-out ring

Myers S50HT Effluent Pump Features and Benefits:
1/2 HP
Class 30 cast iron construction
2" (50.8 mm) NPT discharge
Silicon carbide shaft seals
Oil-filled motor with automatic reset overload provides safe operation
Ball-bearing construction for long life
600V jacketed lead for added durability
Easily replaceable power cord with optional lengths available
NOTE: Control Panel #PW217-280 (sold separately) is required for this pump to function. See your dealer for details.

Myers S40HT Efluent Pump General Specifications:
BODY CONSTRUCTION: Cast Iron
HORSEPOWER: 1/3 HP
MAXIMUM HEAD: 21'
MAXIMUM CAPACITY: 45 GPM
FLOW at 10' LIFT: 43 GPM
SWITCH TYPE: Tethered Float w/ Piggyback Plug
SWITCH 'ON' LEVEL: 13.5"
SWITCH 'OFF' LEVEL: 4.5"
MINIMUM SUMP DIAMETER: Sinplex: 18" Duplex: 30"
DISCHARGE PIPE SIZE: 1-1/2" NPT
MAXIMUM SOLIDS HANDLING SIZE: 3/4"
AMP DRAW (full load): 12 Amps
CORD LENGTH: 20'
VOLTAGE: 115v AC, 60 Hz
MAXIMUM LIQUID TEMPERATURE: S40HT-11P: 194F (90C) S40HT-11: 200F (93C)

Myers S50HT Efluent Pump General Specifications:
BODY CONSTRUCTION: Cast Iron
HORSEPOWER: 1/2 HP
MAXIMUM HEAD: 50'
MAXIMUM CAPACITY: 100 GPM
FLOW at 10' LIFT: 92 GPM
SWITCH TYPE: Tethered Float Connected To Control Panel
MAXIMUM SUMP DIAMETER: Simplex: 24" Duplex: 36"
DISCHARGE PIPE SIZE: 2" NPT
MAXIMUM SOLIDS HANDLING SIZE: 3/4"
AMP DRAW (full load): 12 Amps
CORD LENGTH: 20'
VOLTAGE: 115v AC, 60 Hz
MAXIMUM LIQUID TEMPERATURE: 200F (93C)
