Home Myers SR1830 Packaged Sewage SystemsSR1830SA2X2

Image shown may not be actual product

SR1830SA2X2

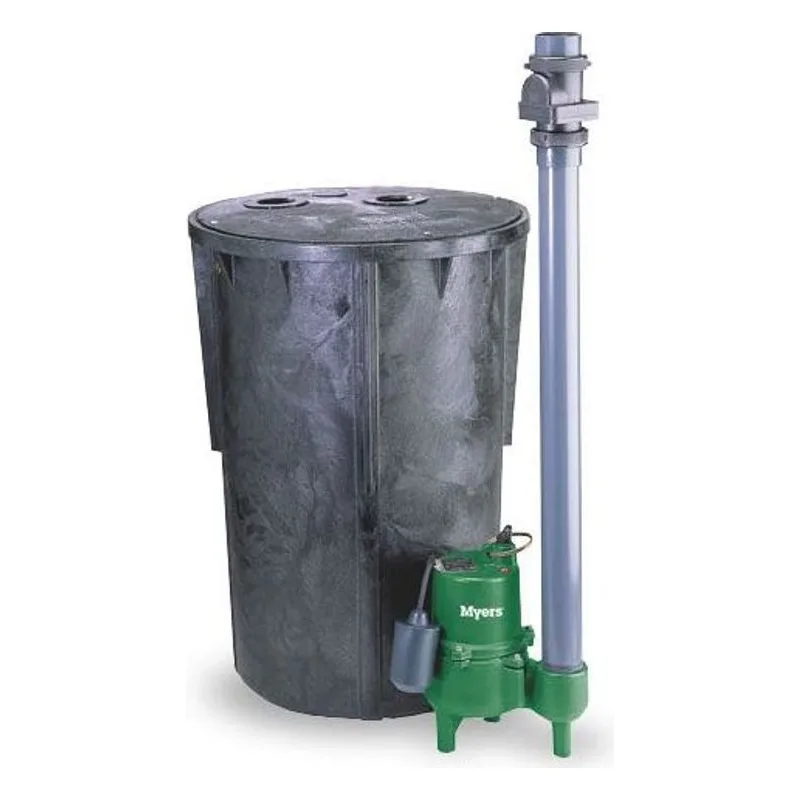

Myers Pump SR1830SA2X2 Packaged Sewage Basin System, 2" Discharge

Series:

SR1830 Packaged Sewage Systems

Item: SR1830SA2X2Model #: 25195D012

Request a Quote

1

Ships within 1 business day (in-stock items). Delivery typically 1-5 business days.

Returns accepted within 30 days. View Returns Policy

Estimate Shipping

Zip Code

Overview

Myers Pump SR1830SA2X2 Packaged Sewage Basin System, 2" Discharge

Literature & Manuals

Find the manuals, product sheets and all the information you need

Type	Title	Link
Installation & Operation Manuals	SR1830 CMV1830 Sewage Pump Manual	View
Installation & Operation Manuals	SR1830 Packaged Sewage Pump System Manual	View

Series Information

SR1830 Packaged Sewage Systems Information

Features & Benefits
Myers SR1830 Packaged Sewage System Features and Benefits: 4/10 HP, 115V, 12A, 1Ø, 60Hz motor Oil-filled motor for maximum heat dissipation and continuous bearing lubrication Residential septic tank sewage Large sumps Recessed vortex impeller for free flow of solids up to 2" diameter Rotary shaft seal has carbon and ceramic faces for positive seal Thermal overload protection with automatic reset 2" diameter discharge
General Description
Myers SR1830 Packaged Sewage Systems General Specifications: BODY CONSTRUCTION: Pump: Cast Iron Basin: Structural Foam HORSEPOWER: 4/10 HP MAXIMUM HEAD: 19' MAXIMUM CAPACITY: 95 GPM FLOW at 10' LIFT: 60 GPM SWITCH TYPE: Tethered DISCHARGE PIPE SIZE: 2" MAXIMUM SOLIDS HANDLING SIZE: 2" AMP DRAW (full load): 12 Amps CORD LENGTH: 10' (20' optional) VOLTAGE: 115v AC, 60 Hz MAX INTERMITTENT LIQUID TEMP: 140 degrees F (60 deg C)
