Home Manufacturers Neptune Metering PumpsNeptune 500-S Hydraulic Simplex Metering Pumps

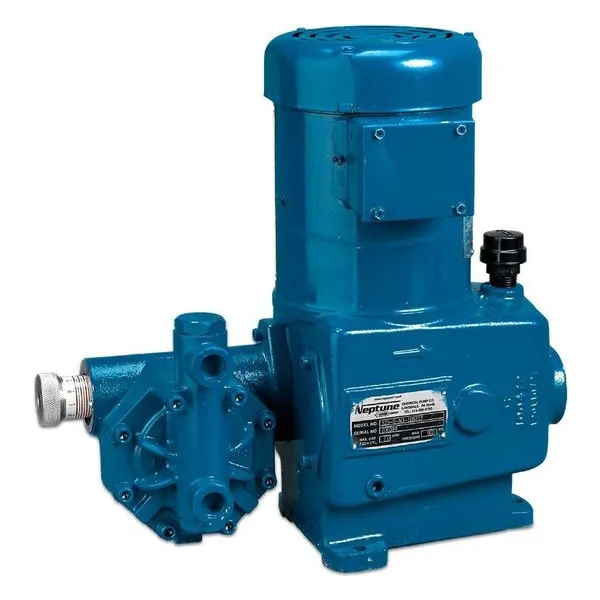

Neptune 500-S Hydraulic Simplex Metering Pumps

About Neptune 500-S Hydraulic Simplex Metering Pumps

500-S Series Hydraulic Metering Pumps come standard in Neptune's Simplex design, but can be converted to Neptune's Duplex design - 500-D Series. Each pump comes with a variable Oil ByPass™ stroke adjustment feature which allows for better valve performance than variable linkage designs. The valve checks have extra time to seat even with heavy liquids since they are idle during the by-pass part of the suction / discharge strokes. Comes standard with 1/3 HP, 1ph, 115 VAC, 60C, TEFC motor with other options available. Materials of construction options include: 316 Stainless Steel, Carpenter-20, PVC or PVDF Liquid Heads & PTFE Diaphragms. Capacities range from 0.80 gph (3.03 L/h) to 34 gph (128 L/h). 3,000 psi (206.8 bar) maximum pressure on certain configurations. Maximum Temperatures: 316SS & C-20 - 200°F (93°C); PVC & PVDF- 125°F (52°C).

Filters

No filters available

426 products

Neptune Metering Pumps

500-S-N3

500-S-N3 Neptune Pumps Simplex Hydraulic Metering Pumps, Series 500-S. 0.8 GPH at 100 psi, 1000 psi Max Pressure. 316SS, FKM O-Rings, PTFE Diaphragm. 0.33 HP, 115 Volts, 60 Hz, 1 Ph (Single Phase), TEFC - (Totally Enclosed Fan Cooled) Motor Enclosure. Model 500SN3. PSG, A Dover Company.

$4,032.00

Neptune Metering Pumps

500-S-N3-2

500-S-N3-2 Neptune Pumps Simplex Hydraulic Metering Pumps, Series 500-S. 0.8 GPH at 100 psi, 3000 psi Max Pressure. 316SS, FKM O-Rings, PTFE Diaphragm. 0.5 HP, 115 Volts, 60 Hz, 1 Ph (Single Phase), TEFC - (Totally Enclosed Fan Cooled) Motor Enclosure. Model 500SN32. PSG, A Dover Company.

$4,251.00

Neptune Metering Pumps

500-S-N3-3

500-S-N3-3 Neptune Pumps Simplex Hydraulic Metering Pumps, Series 500-S. 0.8 GPH at 100 psi, 3000 psi Max Pressure. 316SS, FKM O-Rings, PTFE Diaphragm. 0.5 HP, 230/460 Volts, 60 Hz, 3 Ph (Three Phase), TEFC - (Totally Enclosed Fan Cooled) Motor Enclosure. Model 500SN33. PSG, A Dover Company.

$4,282.00

Neptune Metering Pumps

500-S-N3-AM

500-S-N3-AM Neptune Pumps Simplex Hydraulic Metering Pumps, Series 500-S. 0.8 GPH at 100 psi, 1000 psi Max Pressure. 316SS, FKM O-Rings, PTFE Diaphragm. 0.33 HP Air Motor. Model 500SN3AM. PSG, A Dover Company.

$4,537.00

Neptune Metering Pumps

500-S-N3-C50

500-S-N3-C50 Neptune Pumps Simplex Hydraulic Metering Pumps, Series 500-S. 0.8 GPH at 100 psi, 1000 psi Max Pressure. 316SS, FKM O-Rings, PTFE Diaphragm. 0.33 HP, 110-220 Volts, 50 Hz, 1 Ph (Single Phase), TEFC - (Totally Enclosed Fan Cooled) Motor Enclosure. Model 500SN3C50. PSG, A Dover Company.

Price not available

Neptune Metering Pumps

500-S-N3-EX1

500-S-N3-EX1 Neptune Pumps Simplex Hydraulic Metering Pumps, Series 500-S. 0.8 GPH at 100 psi, 1000 psi Max Pressure. 316SS, FKM O-Rings, PTFE Diaphragm. 0.33 HP, 115/230 Volts, 60 Hz, 1 Ph (Single Phase), XP - (Explosion Proof) Motor Enclosure. Model 500SN3EX1. PSG, A Dover Company.

$4,889.00

Neptune Metering Pumps

500-S-N3-EX3

500-S-N3-EX3 Neptune Pumps Simplex Hydraulic Metering Pumps, Series 500-S. 0.8 GPH at 100 psi, 1000 psi Max Pressure. 316SS, FKM O-Rings, PTFE Diaphragm. 0.33 HP, 230/460 Volts, 60 Hz, 3 Ph (Three Phase), XP - (Explosion Proof) Motor Enclosure. Model 500SN3EX3. PSG, A Dover Company.

$5,024.00

Neptune Metering Pumps

500-S-N3-FA

500-S-N3-FA Neptune Pumps Simplex Hydraulic Metering Pumps, Series 500-S. 0.8 GPH at 100 psi. 316SS, FKM O-Rings, PTFE Diaphragm. Model 500SN3FA. PSG, A Dover Company.

$4,144.00

Neptune Metering Pumps

500-S-N3-FA12

500-S-N3-FA12 Neptune Pumps Simplex Hydraulic Metering Pumps, Series 500-S. 0.8 GPH at 100 psi, 1000 psi Max Pressure. 316SS, FKM O-Rings, PTFE Diaphragm. 0.33 HP, 12 VDC Volts. Model 500SN3FA12. PSG, A Dover Company.

Price not available

Neptune Metering Pumps

500-S-N3-FALP

500-S-N3-FALP Neptune Pumps Simplex Hydraulic Metering Pumps, Series 500-S. 0.8 GPH at 100 psi. 316SS, FKM O-Rings, PTFE Diaphragm. Model 500SN3FALP. PSG, A Dover Company.

$4,149.00

Neptune Metering Pumps

500-S-N3-SXT1

500-S-N3-SXT1 Neptune Pumps Simplex Hydraulic Metering Pumps, Series 500-S. 0.8 GPH at 100 psi, 3000 psi Max Pressure. 316SS, FKM O-Rings, PTFE Diaphragm. 0.5 HP, 115/230 Volts, 60 Hz, 1 Ph (Single Phase), WD - (Wash Down) Motor Enclosure. Model 500SN3SXT1. PSG, A Dover Company.

$4,944.00

Neptune Metering Pumps

500-S-N3-SXT3

500-S-N3-SXT3 Neptune Pumps Simplex Hydraulic Metering Pumps, Series 500-S. 0.8 GPH at 100 psi, 3000 psi Max Pressure. 316SS, FKM O-Rings, PTFE Diaphragm. 0.5 HP, 230/460 Volts, 60 Hz, 3 Ph (Three Phase), Severe Duty Motor Enclosure. Model 500SN3SXT3. PSG, A Dover Company.

$5,066.00

Neptune Metering Pumps

500-S-N3-TE1

500-S-N3-TE1 Neptune Pumps Simplex Hydraulic Metering Pumps, Series 500-S. 0.8 GPH at 100 psi, 1000 psi Max Pressure. 316SS, FKM O-Rings, PTFE Diaphragm. 0.33 HP, 115/230 Volts, 60 Hz, 1 Ph (Single Phase), TEFC - (Totally Enclosed Fan Cooled) Motor Enclosure. Model 500SN3TE1. PSG, A Dover Company.

$4,477.00

Neptune Metering Pumps

500-S-N3-TE3

500-S-N3-TE3 Neptune Pumps Simplex Hydraulic Metering Pumps, Series 500-S. 0.8 GPH at 100 psi, 1000 psi Max Pressure. 316SS, FKM O-Rings, PTFE Diaphragm. 0.33 HP, 230/460 Volts, 60 Hz, 3 Ph (Three Phase), TEFC - (Totally Enclosed Fan Cooled) Motor Enclosure. Model 500SN3TE3. PSG, A Dover Company.

$4,463.00

Neptune Metering Pumps

500-S-N4

500-S-N4 Neptune Pumps Simplex Hydraulic Metering Pumps, Series 500-S. 0.8 GPH at 100 psi, 1000 psi Max Pressure. Carpenter 20, FKM O-Rings, PTFE Diaphragm. 0.33 HP, 115 Volts, 60 Hz, 1 Ph (Single Phase), TEFC - (Totally Enclosed Fan Cooled) Motor Enclosure. Model 500SN4. PSG, A Dover Company.

$4,709.00

Neptune Metering Pumps

500-S-N4-2

500-S-N4-2 Neptune Pumps Simplex Hydraulic Metering Pumps, Series 500-S. 0.8 GPH at 100 psi. Carpenter 20, FKM O-Rings, PTFE Diaphragm. 0.5 HP, 115 Volts, 60 Hz, 1 Ph (Single Phase), TEFC - (Totally Enclosed Fan Cooled) Motor Enclosure. Model 500SN42. PSG, A Dover Company.

$4,928.00

Neptune Metering Pumps

500-S-N4-3

500-S-N4-3 Neptune Pumps Simplex Hydraulic Metering Pumps, Series 500-S. 0.8 GPH at 100 psi. Carpenter 20, FKM O-Rings, PTFE Diaphragm. 0.5 HP, 230/460 Volts, 60 Hz, 3 Ph (Three Phase), TEFC - (Totally Enclosed Fan Cooled) Motor Enclosure. Model 500SN43. PSG, A Dover Company.

$4,959.00

Neptune Metering Pumps

500-S-N4-AM

500-S-N4-AM Neptune Pumps Simplex Hydraulic Metering Pumps, Series 500-S. 0.8 GPH at 100 psi, 1000 psi Max Pressure. Carpenter 20, FKM O-Rings, PTFE Diaphragm. 0.33 HP Air Motor. Model 500SN4AM. PSG, A Dover Company.

$5,214.00

Neptune Metering Pumps

500-S-N4-C50

500-S-N4-C50 Neptune Pumps Simplex Hydraulic Metering Pumps, Series 500-S. 0.8 GPH at 100 psi, 1000 psi Max Pressure. Carpenter 20, FKM O-Rings, PTFE Diaphragm. 0.33 HP, 110-220 Volts, 50 Hz, 1 Ph (Single Phase), TEFC - (Totally Enclosed Fan Cooled) Motor Enclosure. Model 500SN4C50. PSG, A Dover Company.

Price not available

Neptune Metering Pumps

500-S-N4-EX1

500-S-N4-EX1 Neptune Pumps Simplex Hydraulic Metering Pumps, Series 500-S. 0.8 GPH at 100 psi, 1000 psi Max Pressure. Carpenter 20, FKM O-Rings, PTFE Diaphragm. 0.33 HP, 115/230 Volts, 60 Hz, 1 Ph (Single Phase), XP - (Explosion Proof) Motor Enclosure. Model 500SN4EX1. PSG, A Dover Company.

$5,566.00

Neptune Metering Pumps

500-S-N4-EX3

500-S-N4-EX3 Neptune Pumps Simplex Hydraulic Metering Pumps, Series 500-S. 0.8 GPH at 100 psi, 1000 psi Max Pressure. Carpenter 20, FKM O-Rings, PTFE Diaphragm. 0.33 HP, 230/460 Volts, 60 Hz, 3 Ph (Three Phase), XP - (Explosion Proof) Motor Enclosure. Model 500SN4EX3. PSG, A Dover Company.

$5,701.00

Neptune Metering Pumps

500-S-N4-FA

500-S-N4-FA Neptune Pumps Simplex Hydraulic Metering Pumps, Series 500-S. 0.8 GPH at 100 psi. Carpenter 20, FKM O-Rings, PTFE Diaphragm. Model 500SN4FA. PSG, A Dover Company.

$4,821.00

Neptune Metering Pumps

500-S-N4-FA12

500-S-N4-FA12 Neptune Pumps Simplex Hydraulic Metering Pumps, Series 500-S. 0.8 GPH at 100 psi, 1000 psi Max Pressure. Carpenter 20, FKM O-Rings, PTFE Diaphragm. 0.33 HP, 12 VDC Volts. Model 500SN4FA12. PSG, A Dover Company.

Price not available

Neptune Metering Pumps

500-S-N4-FALP

500-S-N4-FALP Neptune Pumps Simplex Hydraulic Metering Pumps, Series 500-S. 0.8 GPH at 100 psi. Carpenter 20, FKM O-Rings, PTFE Diaphragm. Model 500SN4FALP. PSG, A Dover Company.

$4,826.00
