Neptune 500-VS High Viscosity Hydraulic Metering Pumps

About Neptune 500-VS High Viscosity Hydraulic Metering Pumps

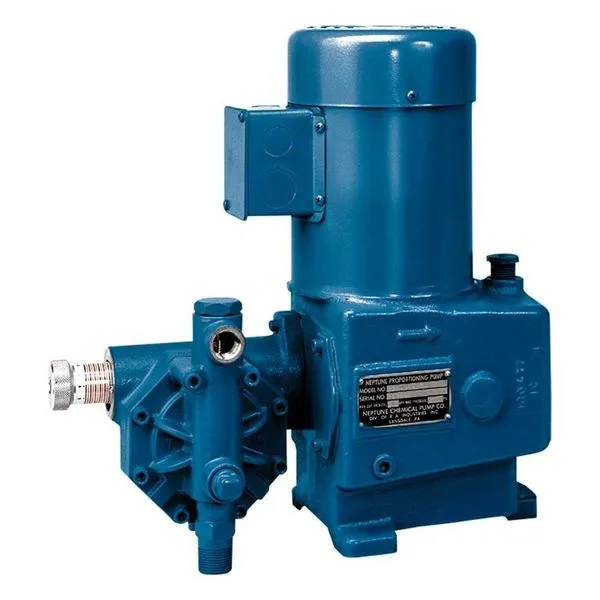

Neptune's 500-VS Series High Viscosity Hydraulic Metering Pumps are engineered for precisely metering viscous liquids to 5,000 cP like polymers and other thick fluids. These pumps come standard in Simplex, but may be converted to Duplex. Variable Oil By-pass™ stroke adjustment permits an adjustable time delay from the end of the suction stroke to the start of the discharge stroke, allowing the ball to fully seat before pumping continues. This way even in the heaviest liquids, accuracy stays very high. Comes standard with 1/3 HP, 1ph, 115 VAC, 60C, TEFC motor with other options available. 316 Stainless Steel & PTFE Diaphragms. Capacities range from 2 gph (7.50 L/h) to 29 gph (110 L/h). 900 psi (62 bar) maximum pressure on certain configurations. Maximum Temperature is 200°F (93°C).

Filters

No filters available

126 products

Neptune Metering Pumps

515-VS-N3

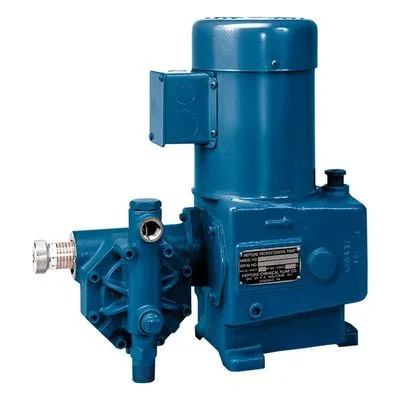

515-VS-N3 Neptune Pumps High Viscosity Hydraulic Metering Pump, Series 500-VS. 3 GPH at 100 psi, 900 psi Max Pressure. 316SS Head, Valve Balls & Check Valve Body; FKM O-Ring, PTFE Diaphragm. 0.33 HP, 115 Volts, 60 Hz, 1 Ph (Single Phase), TEFC - (Totally Enclosed Fan Cooled) Motor Enclosure. Model 515VSN3. PSG, A Dover Company.

$3,876.00

Neptune Metering Pumps

515-VS-N3-2

515-VS-N3-2 Neptune Pumps High Viscosity Hydraulic Metering Pump, Series 500-VS. 3 GPH at 100 psi, 900 psi Max Pressure. 316SS Head, Valve Balls & Check Valve Body; FKM O-Ring, PTFE Diaphragm. 0.5 HP, 115 Volts, 60 Hz, 1 Ph (Single Phase), TEFC - (Totally Enclosed Fan Cooled) Motor Enclosure. Model 515VSN32. PSG, A Dover Company.

$4,095.00

Neptune Metering Pumps

515-VS-N3-3

515-VS-N3-3 Neptune Pumps High Viscosity Hydraulic Metering Pump, Series 500-VS. 3 GPH at 100 psi, 900 psi Max Pressure. 316SS Head, Valve Balls & Check Valve Body; FKM O-Ring, PTFE Diaphragm. 0.5 HP, 230/460 Volts, 60 Hz, 3 Ph (Three Phase), TEFC - (Totally Enclosed Fan Cooled) Motor Enclosure. Model 515VSN33. PSG, A Dover Company.

$4,126.00

Neptune Metering Pumps

515-VS-N3-AM

515-VS-N3-AM Neptune Pumps High Viscosity Hydraulic Metering Pump, Series 500-VS. 3 GPH at 100 psi, 900 psi Max Pressure. 316SS Head, Valve Balls & Check Valve Body; FKM O-Ring, PTFE Diaphragm. 0.33 HP Air Motor. Model 515VSN3AM. PSG, A Dover Company.

$4,381.00

Neptune Metering Pumps

515-VS-N3-C50

515-VS-N3-C50 Neptune Pumps High Viscosity Hydraulic Metering Pump, Series 500-VS. 3 GPH at 100 psi, 900 psi Max Pressure. 316SS Head, Valve Balls & Check Valve Body; FKM O-Ring, PTFE Diaphragm. 0.33 HP, 110-220 Volts, 50 Hz, 1 Ph (Single Phase), TEFC - (Totally Enclosed Fan Cooled) Motor Enclosure. Model 515VSN3C50. PSG, A Dover Company.

Price not available

Neptune Metering Pumps

515-VS-N3-EX1

515-VS-N3-EX1 Neptune Pumps High Viscosity Hydraulic Metering Pump, Series 500-VS. 3 GPH at 100 psi, 900 psi Max Pressure. 316SS Head, Valve Balls & Check Valve Body; FKM O-Ring, PTFE Diaphragm. 0.33 HP, 115/230 Volts, 60 Hz, 1 Ph (Single Phase), XP - (Explosion Proof) Motor Enclosure. Model 515VSN3EX1. PSG, A Dover Company.

$4,733.00

Neptune Metering Pumps

515-VS-N3-EX3

515-VS-N3-EX3 Neptune Pumps High Viscosity Hydraulic Metering Pump, Series 500-VS. 3 GPH at 100 psi, 900 psi Max Pressure. 316SS Head, Valve Balls & Check Valve Body; FKM O-Ring, PTFE Diaphragm. 0.33 HP, 230/460 Volts, 60 Hz, 3 Ph (Three Phase), XP - (Explosion Proof) Motor Enclosure. Model 515VSN3EX3. PSG, A Dover Company.

$4,868.00

Neptune Metering Pumps

515-VS-N3-FA

515-VS-N3-FA Neptune Pumps High Viscosity Hydraulic Metering Pump, Series 500-VS. 3 GPH at 100 psi, 900 psi Max Pressure. 316SS Head, Valve Balls & Check Valve Body; FKM O-Ring, PTFE Diaphragm. Model 515VSN3FA. PSG, A Dover Company.

$3,988.00

Neptune Metering Pumps

515-VS-N3-FA12

515-VS-N3-FA12 Neptune Pumps High Viscosity Hydraulic Metering Pump, Series 500-VS. 3 GPH at 100 psi, 900 psi Max Pressure. 316SS Head, Valve Balls & Check Valve Body; FKM O-Ring, PTFE Diaphragm. 0.33 HP, 12 VDC Volts. Model 515VSN3FA12. PSG, A Dover Company.

Price not available

Neptune Metering Pumps

515-VS-N3-FALP

515-VS-N3-FALP Neptune Pumps High Viscosity Hydraulic Metering Pump, Series 500-VS. 3 GPH at 100 psi, 900 psi Max Pressure. 316SS Head, Valve Balls & Check Valve Body; FKM O-Ring, PTFE Diaphragm. Model 515VSN3FALP. PSG, A Dover Company.

$3,993.00

Neptune Metering Pumps

515-VS-N3-SXT1

515-VS-N3-SXT1 Neptune Pumps High Viscosity Hydraulic Metering Pump, Series 500-VS. 3 GPH at 100 psi, 900 psi Max Pressure. 316SS Head, Valve Balls & Check Valve Body; FKM O-Ring, PTFE Diaphragm. 0.5 HP, 115/230 Volts, 60 Hz, 1 Ph (Single Phase), WD - (Wash Down) Motor Enclosure. Model 515VSN3SXT1. PSG, A Dover Company.

$4,788.00

Neptune Metering Pumps

515-VS-N3-SXT3

515-VS-N3-SXT3 Neptune Pumps High Viscosity Hydraulic Metering Pump, Series 500-VS. 3 GPH at 100 psi, 900 psi Max Pressure. 316SS Head, Valve Balls & Check Valve Body; FKM O-Ring, PTFE Diaphragm. 0.5 HP, 230/460 Volts, 60 Hz, 3 Ph (Three Phase), Severe Duty Motor Enclosure. Model 515VSN3SXT3. PSG, A Dover Company.

$4,910.00

Neptune Metering Pumps

515-VS-N3-TE1

515-VS-N3-TE1 Neptune Pumps High Viscosity Hydraulic Metering Pump, Series 500-VS. 3 GPH at 100 psi, 900 psi Max Pressure. 316SS Head, Valve Balls & Check Valve Body; FKM O-Ring, PTFE Diaphragm. 0.33 HP, 115/230 Volts, 60 Hz, 1 Ph (Single Phase), TEFC - (Totally Enclosed Fan Cooled) Motor Enclosure. Model 515VSN3TE1. PSG, A Dover Company.

$4,321.00

Neptune Metering Pumps

515-VS-N3-TE3

515-VS-N3-TE3 Neptune Pumps High Viscosity Hydraulic Metering Pump, Series 500-VS. 3 GPH at 100 psi, 900 psi Max Pressure. 316SS Head, Valve Balls & Check Valve Body; FKM O-Ring, PTFE Diaphragm. 0.33 HP, 230/460 Volts, 60 Hz, 3 Ph (Three Phase), TEFC - (Totally Enclosed Fan Cooled) Motor Enclosure. Model 515VSN3TE3. PSG, A Dover Company.

$4,307.00

Neptune Metering Pumps

520-VS-N3

520-VS-N3 Neptune Pumps High Viscosity Hydraulic Metering Pump, Series 500-VS. 2 GPH at 100 psi, 400 psi Max Pressure. 316SS Head, Valve Balls & Check Valve Body; FKM O-Ring, PTFE Diaphragm. 0.33 HP, 115 Volts, 60 Hz, 1 Ph (Single Phase), TEFC - (Totally Enclosed Fan Cooled) Motor Enclosure. Model 520VSN3. PSG, A Dover Company.

$3,876.00

Neptune Metering Pumps

520-VS-N3-2

520-VS-N3-2 Neptune Pumps High Viscosity Hydraulic Metering Pump, Series 500-VS. 2 GPH at 100 psi, 400 psi Max Pressure. 316SS Head, Valve Balls & Check Valve Body; FKM O-Ring, PTFE Diaphragm. 0.5 HP, 115 Volts, 60 Hz, 1 Ph (Single Phase), TEFC - (Totally Enclosed Fan Cooled) Motor Enclosure. Model 520VSN32. PSG, A Dover Company.

$4,095.00

Neptune Metering Pumps

520-VS-N3-3

520-VS-N3-3 Neptune Pumps High Viscosity Hydraulic Metering Pump, Series 500-VS. 2 GPH at 100 psi, 400 psi Max Pressure. 316SS Head, Valve Balls & Check Valve Body; FKM O-Ring, PTFE Diaphragm. 0.5 HP, 230/460 Volts, 60 Hz, 3 Ph (Three Phase), TEFC - (Totally Enclosed Fan Cooled) Motor Enclosure. Model 520VSN33. PSG, A Dover Company.

$4,126.00

Neptune Metering Pumps

520-VS-N3-AM

520-VS-N3-AM Neptune Pumps High Viscosity Hydraulic Metering Pump, Series 500-VS. 2 GPH at 100 psi, 400 psi Max Pressure. 316SS Head, Valve Balls & Check Valve Body; FKM O-Ring, PTFE Diaphragm. 0.33 HP Air Motor. Model 520VSN3AM. PSG, A Dover Company.

$4,381.00

Neptune Metering Pumps

520-VS-N3-C50

520-VS-N3-C50 Neptune Pumps High Viscosity Hydraulic Metering Pump, Series 500-VS. 2 GPH at 100 psi, 400 psi Max Pressure. 316SS Head, Valve Balls & Check Valve Body; FKM O-Ring, PTFE Diaphragm. 0.33 HP, 110-220 Volts, 50 Hz, 1 Ph (Single Phase), TEFC - (Totally Enclosed Fan Cooled) Motor Enclosure. Model 520VSN3C50. PSG, A Dover Company.

Price not available

Neptune Metering Pumps

520-VS-N3-EX1

520-VS-N3-EX1 Neptune Pumps High Viscosity Hydraulic Metering Pump, Series 500-VS. 2 GPH at 100 psi, 400 psi Max Pressure. 316SS Head, Valve Balls & Check Valve Body; FKM O-Ring, PTFE Diaphragm. 0.33 HP, 115/230 Volts, 60 Hz, 1 Ph (Single Phase), XP - (Explosion Proof) Motor Enclosure. Model 520VSN3EX1. PSG, A Dover Company.

$4,733.00

Neptune Metering Pumps

520-VS-N3-EX3

520-VS-N3-EX3 Neptune Pumps High Viscosity Hydraulic Metering Pump, Series 500-VS. 2 GPH at 100 psi, 400 psi Max Pressure. 316SS Head, Valve Balls & Check Valve Body; FKM O-Ring, PTFE Diaphragm. 0.33 HP, 230/460 Volts, 60 Hz, 3 Ph (Three Phase), XP - (Explosion Proof) Motor Enclosure. Model 520VSN3EX3. PSG, A Dover Company.

$4,868.00

Neptune Metering Pumps

520-VS-N3-FA

520-VS-N3-FA Neptune Pumps High Viscosity Hydraulic Metering Pump, Series 500-VS. 2 GPH at 100 psi, 400 psi Max Pressure. 316SS Head, Valve Balls & Check Valve Body; FKM O-Ring, PTFE Diaphragm. Model 520VSN3FA. PSG, A Dover Company.

$3,988.00

Neptune Metering Pumps

520-VS-N3-FA12

520-VS-N3-FA12 Neptune Pumps High Viscosity Hydraulic Metering Pump, Series 500-VS. 2 GPH at 100 psi, 400 psi Max Pressure. 316SS Head, Valve Balls & Check Valve Body; FKM O-Ring, PTFE Diaphragm. 0.33 HP, 12 VDC Volts. Model 520VSN3FA12. PSG, A Dover Company.

Price not available

Neptune Metering Pumps

520-VS-N3-FALP

520-VS-N3-FALP Neptune Pumps High Viscosity Hydraulic Metering Pump, Series 500-VS. 2 GPH at 100 psi, 400 psi Max Pressure. 316SS Head, Valve Balls & Check Valve Body; FKM O-Ring, PTFE Diaphragm. Model 520VSN3FALP. PSG, A Dover Company.

$3,993.00
