MP7007-DN5

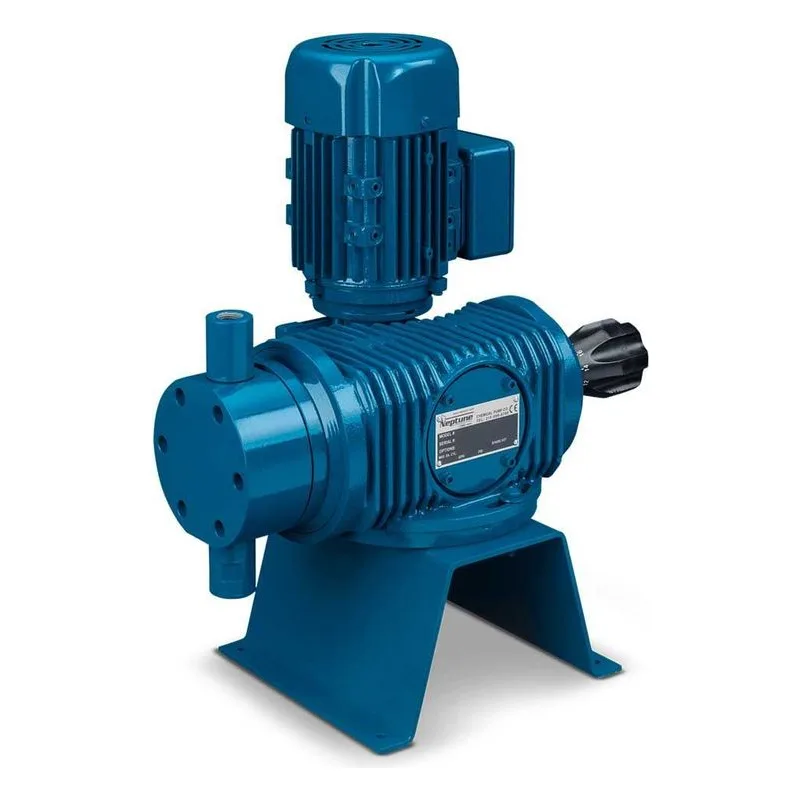

MP7007-DN5 Neptune Pumps Mechanically-Actuated Diaphragm Metering Pump, Series MP7000. 27 GPH at 1/4 HP, 50 psi Max Pressure. PVC Head & Check Valve Body, Ceramic Valve Balls; FKM O-Rings, PTFE Diaphragm. 0.25 HP, 115 Volts, 60 Hz, 1 Ph (Single Phase), TEFC - (Totally Enclosed Fan Cooled) Motor Enclosure. Model MP7007DN5. PSG, A Dover Company.

Brand: Neptune Metering Pumps

Series:

Neptune MP7000 Mechanical Diaphragm Metering Pumps

Item: MP7007-DN5

Price on request

Ships within 1 business day (in-stock items). Delivery typically 1-5 business days.

Returns accepted within 30 days. View Returns Policy

Estimate Shipping

Zip Code

Overview

Series Information

Neptune MP7000 Mechanical Diaphragm Metering Pumps Information

Product Type
Chemical Metering, Diaphragm Pumps, Injection / Dosing, Mechanically Actuated, Metering, Wastewater Treatment
Features & Benefits
Features and Benefits • Heavy-duty, corrosion-resistant aluminum gearbox • Finned gearbox design dissipates heat more efficiently than other designs • Rugged bronze gears are quiet-running and provide long service life • Oversize check valves improve performance and minimize friction losses • Short stroke length reduces diaphragm stress and promotes longer diaphragm life • 10:1 turndown via micrometer-type knob with high-contrast, easy-to-read scale • Repeatable accuracy is ±2% at full scale (at constant hydraulic conditions) • All models include standard 63 IEC motor adapter • Superior performance when pumping chemicals such as sodium hypochlorite, which can off-gas • Max capacity up to 27 gph (102 L/h) • Max pressure up to 235 psi (16 bar) • Automatic speed control with variable frequency or SCR drive options available • Sodium Hypochlorite Gas Bleed head option that allows venting of accumulated gas • Sodium Hypochlorite Gas Bleed option designed with an automatic air-release valve to allow venting of gas produced by chemicals

Popular Series

Series associated to this product and brand

MP7007-DN5

Product Type

Chemical Metering, Diaphragm Pumps, Injection / Dosing, Mechanically Actuated, Metering, Wastewater Treatment

Features & Benefits

Features and Benefits
• Heavy-duty, corrosion-resistant aluminum gearbox
• Finned gearbox design dissipates heat more efficiently than other designs
• Rugged bronze gears are quiet-running and provide long service life
• Oversize check valves improve performance and minimize friction losses
• Short stroke length reduces diaphragm stress and promotes longer diaphragm life
• 10:1 turndown via micrometer-type knob with high-contrast, easy-to-read scale
• Repeatable accuracy is ±2% at full scale (at constant hydraulic conditions)
• All models include standard 63 IEC motor adapter
• Superior performance when pumping chemicals such as sodium hypochlorite, which can off-gas
• Max capacity up to 27 gph (102 L/h)
• Max pressure up to 235 psi (16 bar)
• Automatic speed control with variable frequency or SCR drive options available
• Sodium Hypochlorite Gas Bleed head option that allows venting of accumulated gas
• Sodium Hypochlorite Gas Bleed option designed with an automatic air-release valve to allow venting of gas produced by chemicals
