PD36PV-E

Accessories

Features And Benefits

Agitators
• Motor description: 1/4 HP-1-115-TEFC, 1,725 RPM. Other motors available
• Shaft and propeller: 316SS
• PVC-coated shaft and propeller available
• Available with bracket or clamp mounting

Back Pressure Valves
• Broad range of valve body materials
• Long life Teflon® diaphragm
• Field adjustable to a maximum back pressure of 50 psi
• Low maintenance

Relief Valves
• Broad range of valve body materials
• Long life Teflon® diaphragm
• Field adjustable to a maximum pressure of 150 psi
• Low maintenance
• Right angle, three port design eliminates the need for a separate "T" fitting in the piping.

Calibration Columns
• Rugged PVC construction with slip on top caps for top filling and easy cleaning
• Shielded glass models available for acids and strong chemicals
• Calibration scales are protected from harsh chemical by Mylar lamination

Corporation Stops with Injections Quills
• Available with choice of brass or 316SS valves
• Max pressure up to 150 psi (10.3 bar)
• Materials of construction: CPVC, PVDF, 316SS and C-20
• Standard sizes include 1/2", 3/4" or 1" process connections

HIGH-PRESSURE INJECTION QUILLS
• Spring-loaded check valve
• Max pressure up to 3,000 psi (207 bar)
• Materials of Construction: PVC, PVDF, 316SS and C-20

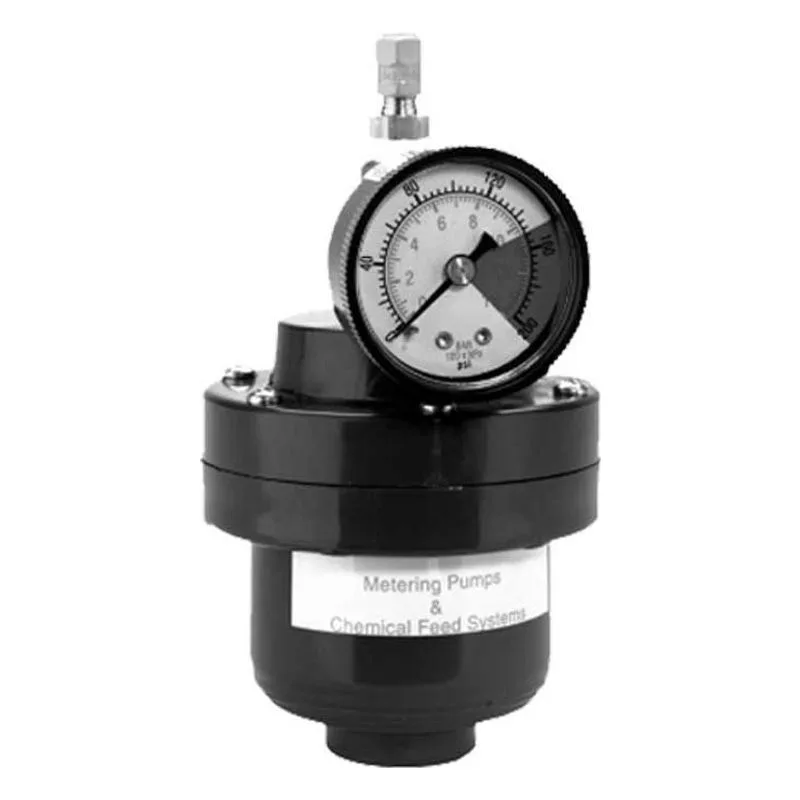

Pulsation Dampeners
• Lightweight, compact design
• Equipped with pressure gauge and charging valve
• Easy in-line maintenance
• Pressure ratings to 1000 psi with 4:1 safety margin
• Extensive range of plastics, metals and elastomers
