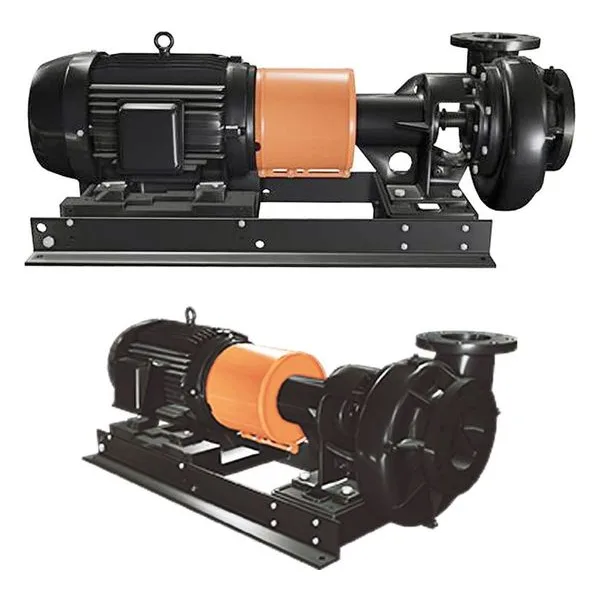

LF (Frame Mounted End Suction)

Industry Standard for Performance, Quality & Durability

PACO's LF frame mounted end suction pump serves as the industry standard in performance, quality, and durability. Advanced features and benefits incorporated as standard, as well as optional features that meet specialized needs, set this high efficiency, end suction pumps apart as the broadest line offered to the marketplace. The LF includes a double volute design to increase efficiency, lowers lifecycle costs, and prolongs seal and bearing life. NSF61/50 certification available.

Key Benefits & Features

• Double Volute Design: Increased efficiency, lower life cycle costs, & prolonged seal and bearing life.

• Back Pull-Out Design: Enables maintenance without disturbing piping.

• Footed Bearing Frame: Ease of maintenance.

• Footless Volute: Permits discharge orientation flexibility.

• Permanently Sealed for Life Bearings: Reduces environmental contaminants and maintenance.

• Machined Mounting Surfaces and Fabricated Base Plate: Aid in alignment.

• NSF61/50 Certifications (available upon request).

Applications

• District Heating

• Cooling

• Industrial Heating

• Process Liquids Transfer

• Industrial Process Water Treatment

• Municipal Surface Water

• Municipal Water Transportation

LF frame mounted centrifugal pumps Max Flow of 6,000 GPM. Head Maximum 400Feet. 275°F max liquid temperature. Horsepower range from 1/3 HP to 300 HP. Discharge sizes range from 1" to 10".
