LD02E2-PTC1-IS1

Dual Manual Control: Stroke frequency and stroke length are manually adjustable. 100:1 max turndown.

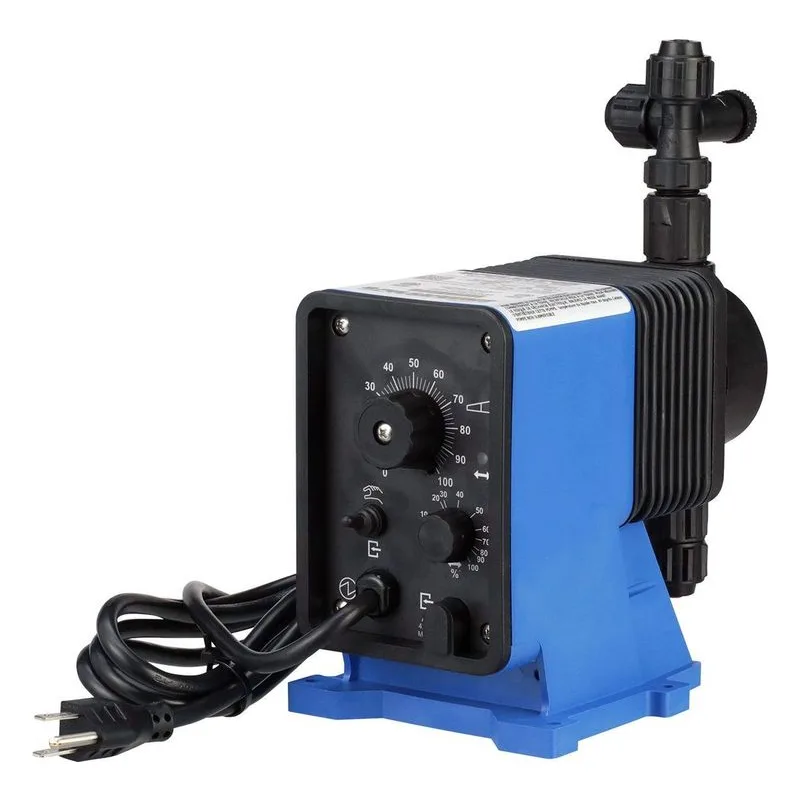

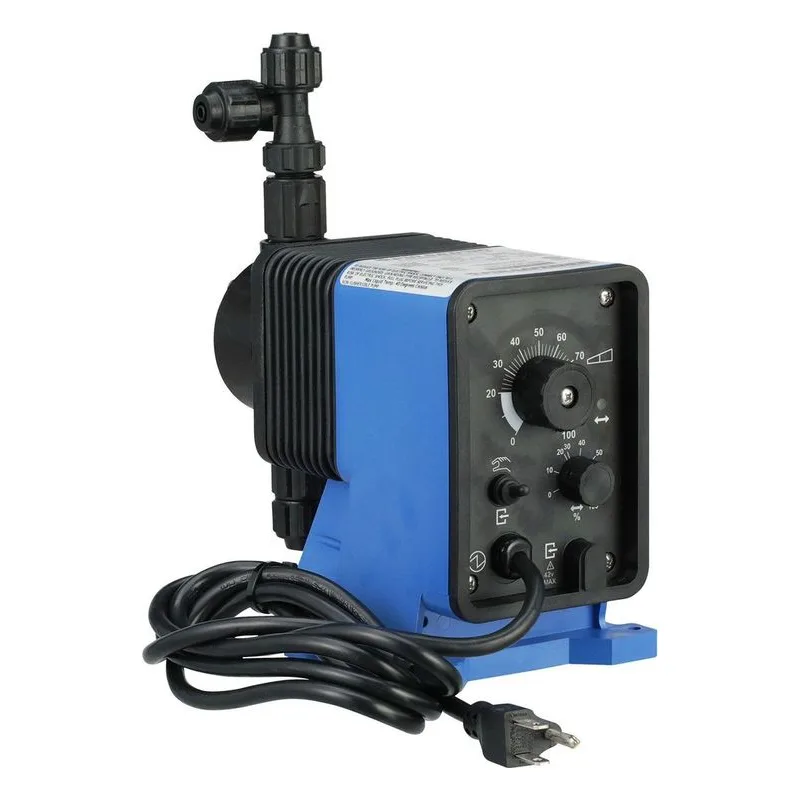

Pulsatron Series C Plus (C+) Chemical Metering Pump by Pulsafeeder

• Manual Control by on-line adjustable stroke rate and stroke length.
• Highly Reliable timing circuit.
• Circuit Protection against voltage and current upsets.
• Solenoid Protection by thermal overload with auto-reset.
• Water Resistant, for outdoor and indoor applications.
• Internally Dampened To Reduce Noise.
• Guided Ball Check Valve Systems, to reduce back flow and enhance outstanding priming characteristics.
• Few Moving Parts and Wall Mountable.
• Safe & Easy Priming with durable leak-free bleed valve assembly (standard).
• Reliable metering performance.
• Rated "hot" for continuous duty.

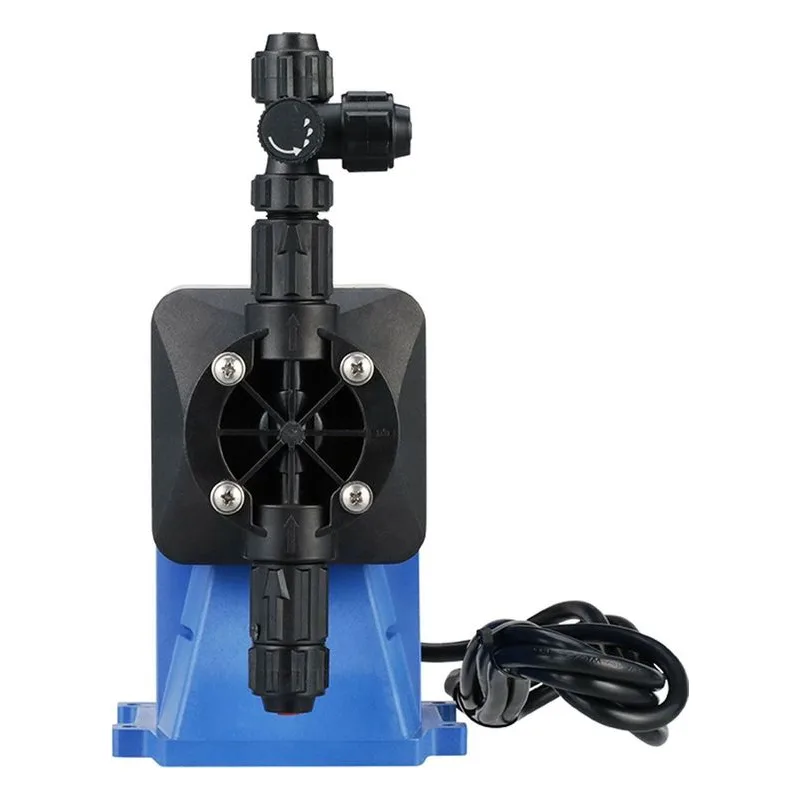

• Leak-free, sealless, liquid end.

Pulsafeeder PULSAtron Series C Plus chemical metering pumps are positive displacement, diaphragm type pumps. Output volume is adjustable while pumps are in operation from zero to maximum capacity.

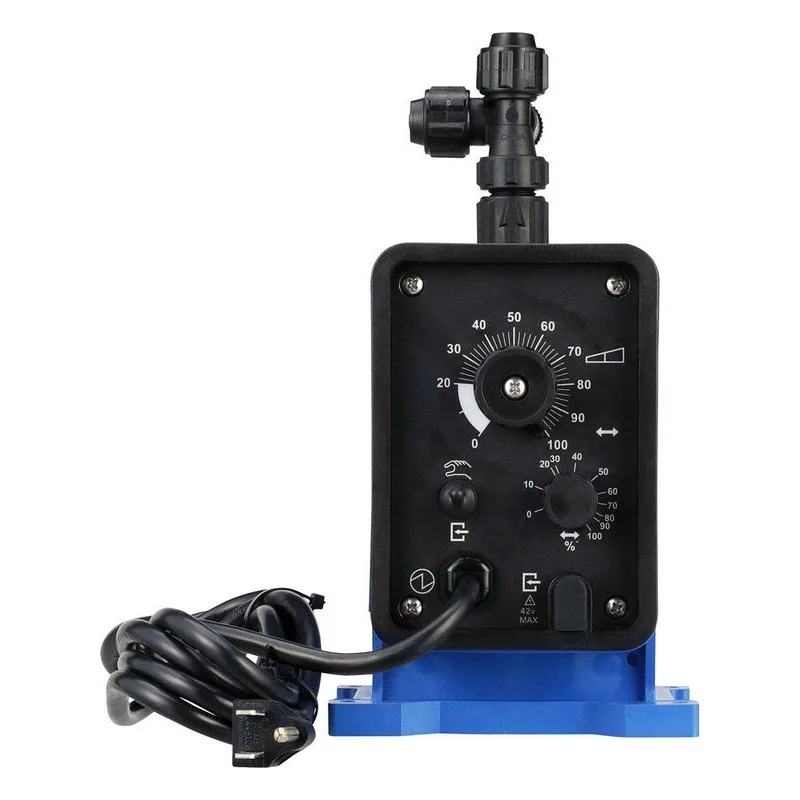

Adjustment is by means of readily accessible dial knobs, one for changing stroke length and the other for changing stroke frequency. Both knobs are located opposite the liquid handling end.

The pump drive is totally enclosed with no exposed moving parts. Electronics are housed in chemical resistant enclosure at the rear of the pump for maximum protection against chemical spillage. Average electrical power consumption is 50 Watts.

Chemical metering pump housing shall be of chemically resistant PBT thermoplastic. All exposed fasteners are stainless steel. Valve seat and seal ring are renewable by replacing the cartridge valve assembly.

Pump Head Materials: GFPPL, PVC, PVDF, 316 SS
Diaphragm: PTFE-faced CSPE-backed
Available Seat O-Rings: PTFE, CSPE, Viton
Available Ball Types: Ceramic, PTFE, 316 SS, Alloy C
Available Fitting Material: GFPPL, PVC, PVDF
Bleed Valve: Same as fitting and check valve selected (except 316 SS)
Available Tubing: Clear PVC, White PE

Important Material Codes:
GFPPL = Glass-filled Polypropylene
PVC = Polyvinyl Chloride
PE = Polyethylene
PVDF = Polyvinylidene Fluoride
PTFE = Polytetrafluoroethylene
CSPE = Generic formulation of Hypalon, a registered trademark of E.I. DuPont Company.
Viton is a registered trademark of E.I. DuPont Company.
PVC wetted end recommended for sodium hypochlorite.

• Manual Stroke Rate
• Manual Stroke Length
• External Pacing - Optional

Available Control Options:

• Manual
• External Pacing with Auto/Manual Switch
• External Pacing with Prime Button
• Stop Function Option

*Check Model Number Codes and Configuration Options

Reproducibility: +/- 3% at maximum capacity
Viscosity Max CPS: 1000 CPS
Stroke Frequency Max SPM: 125
Stroke Frequency Turn-Down Ratio: 10:1
Stroke Length Turn-Down Ratio: 10:1

Power Input:
115 VAC / 50-60 HZ / 1 Phase
230 VAC / 50-60 HZ / 1 Phase

Average Current Draw:
@ 115 VAC / Amps: 0.6 Amps
@ 230 VAC / Amps: 0.3 Amps

Peak Input Power: 130 Watts
Average Input Power @ Max SPM: 50 Watts

Liquid End Code / Chemical

PHC - AMMONIA, 10%, CITRIC ACID, 10 - 20%, SODIUM HYDROXIDE, 0 - 50%, SODIUM SILICATE, SODIUM SULFATE, SODIUM SULFIDE
ATS - DEAE - Steamline Treatment
PTC - FERRIC SULFATE, HYDROCHLORIC ACID, 0 - 37%, LACTIC ACID, POTASSIUM CHLORIDE, POTASSIUM PERMANGANATE SODIUM BI-CARBONATE, SODIUM BI-SULFATE, SODIUM CARBONATE, SODIUM NITRATE, SULFURIC ACID, 0 - 10%, SULFURIC ACID, 10 - 75%
PTT - FLUOSILICIC ACID, HYDROFLUOSILICIC ACID, 20%
KTT - HYDROCHLORIC ACID, 37 - 100%
PVC - NITRIC ACID, 0 - 20%,
VVC - SODIUM HYPOCHLORITE
KTC - PHOSPHORIC ACID, 0 - 100%, SULFURIC ACID, 95 - 100%
