CJ90F-MS2

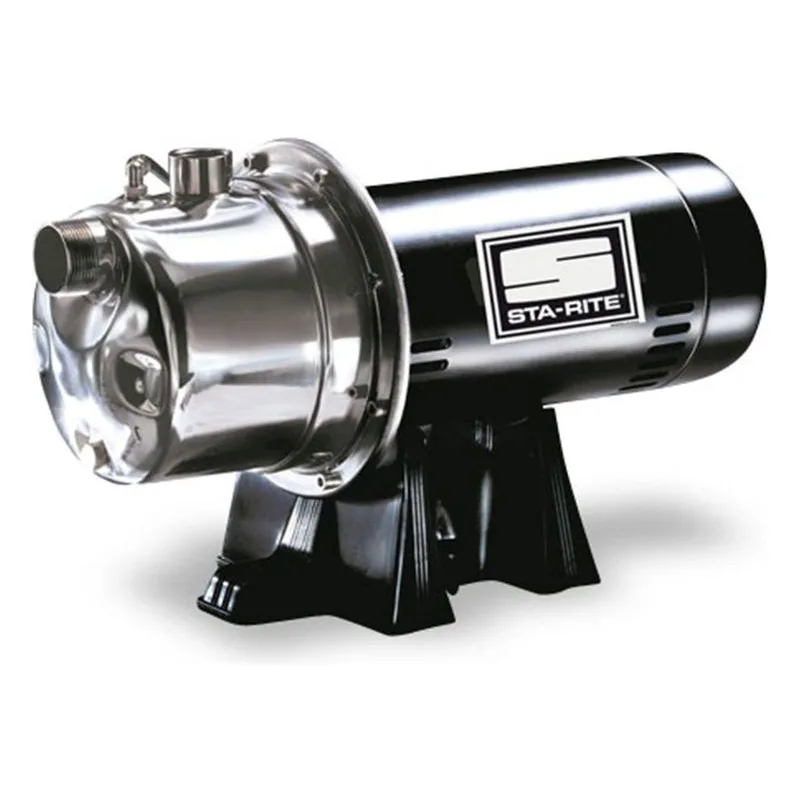

Sta-Rite CJ90F-MS2 CJ Series Stainless Steel, Self-Priming Shallow Well Jet Pump. 1-1/2 HP, 115/230 Volts, Noryl Impeller, 1-1/4" Suction, 1" Discharge, Manufactured by Pentair.

Brand: STA-RITE

Series:

CJ Shallow Well Jet Pumps

Item: CJ90F-MS2

Retail Price: $1,928.00

Ships within 1 business day (in-stock items). Delivery typically 1-5 business days.

Returns accepted within 30 days. View Returns Policy

Estimate Shipping

Zip Code

Overview

Sta-Rite CJ90F-MS2 CJ Series Stainless Steel, Self-Priming Shallow Well Jet Pump. 1-1/2 HP, 115/230 Volts, Noryl Impeller, 1-1/4" Suction, 1" Discharge, Manufactured by Pentair.

Literature & Manuals

Find the manuals, product sheets and all the information you need

Type	Title	Link
Brochures	CJ Shallow Well Jet Pump Brochure	View
Installation & Operation Manuals	CJ Shallow Well Jet Pump Manual	View
Installation & Operation Manuals	CJ Shallow Well Jet Pump Manual	View

Series Information

CJ Shallow Well Jet Pumps Information

Features & Benefits
Sta-Rite CJ Series Shallow Well Jet Pump Features And Benefits: Corrosion Free - Stainless steel pump body provides maximum resistance to corrosion Built-in Jet - High strength thermoplastic components are corrosion resistant. Mechanical Shaft Seal - Highly polished carbon-ceramic and stainless steel construction. Motor Windings - Superior insulation materials protect against excessive moisture and contaminants --assure prolonged motor life.
General Description
Sta-Rite CJ Series Shallow Well Jet Pump General Specifications: BODY CONSTRUCTION: Stainless Steel HORSEPOWER: Available in 1 or 1-1/2 HP MAXIMUM CAPACITY: 18.6 GPM (CJ90F) FLOW at 10' LIFT and 40 PSI: 16.4 GPM (CJ90F) MAX LIFT: 25' MAX SHUT-OFF PRESSURE: 80 psi (CJ90F) MAXIMUM INLET PRESSURE: 50 PSI PRESSURE SWITCH SETTING: 30-50 SUCTION SIZE: 1-1/4" NPT DRIVE SIZE: n/a DISCHARGE SIZE: 1" NPT AMP DRAW (full load): Highest: CJ90F at 19.2 amps on 115v / Lowest: CJ90E at 7.4 amps on 230v VOLTAGE: 230v / 115v switchable RECOMMENDED BREAKER: Voltage & Model Dependent MAXIMUM LIQUID TEMPERATURE: 122°F (50°C)

Popular Series

Series associated to this product and brand

Type

Title

Link

Brochures

CJ Shallow Well Jet Pump Brochure

View

Installation & Operation Manuals

CJ Shallow Well Jet Pump Manual

View

Installation & Operation Manuals

CJ Shallow Well Jet Pump Manual

View

Features & Benefits

Sta-Rite CJ Series Shallow Well Jet Pump Features And Benefits:
Corrosion Free - Stainless steel pump body provides maximum resistance to corrosion
Built-in Jet - High strength thermoplastic components are corrosion resistant.
Mechanical Shaft Seal - Highly polished carbon-ceramic and stainless steel construction.
Motor Windings - Superior insulation materials protect against excessive moisture and contaminants --assure prolonged motor life.

General Description

Sta-Rite CJ Series Shallow Well Jet Pump General Specifications:
BODY CONSTRUCTION: Stainless Steel
HORSEPOWER: Available in 1 or 1-1/2 HP
MAXIMUM CAPACITY: 18.6 GPM (CJ90F)
FLOW at 10' LIFT and 40 PSI: 16.4 GPM (CJ90F)
MAX LIFT: 25'
MAX SHUT-OFF PRESSURE: 80 psi (CJ90F)
MAXIMUM INLET PRESSURE: 50 PSI
PRESSURE SWITCH SETTING: 30-50
SUCTION SIZE: 1-1/4" NPT
DRIVE SIZE: n/a
DISCHARGE SIZE: 1" NPT
AMP DRAW (full load): Highest: CJ90F at 19.2 amps on 115v / Lowest: CJ90E at 7.4 amps on 230v
VOLTAGE: 230v / 115v switchable
RECOMMENDED BREAKER: Voltage & Model Dependent
MAXIMUM LIQUID TEMPERATURE: 122°F (50°C)
