DHE3-HVS

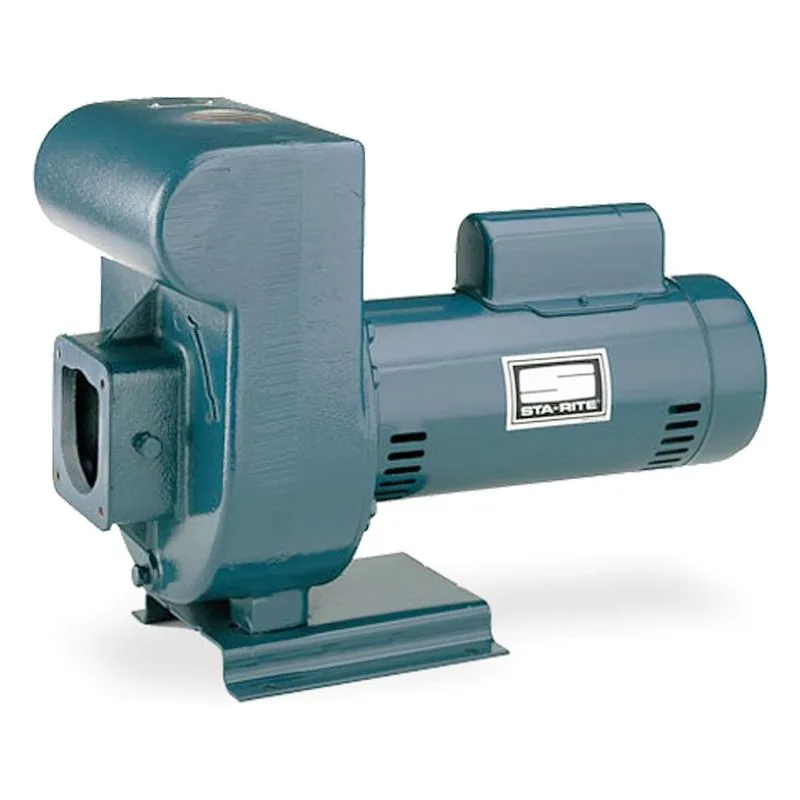

Sta-Rite DHE3-HVS D Series High Head, Self-Priming Centrifugal Pump. 1 HP, 208-230/460 Volts, 60 Hz, 3 Ph (Three Phase) Motor, Noryl Impeller, Top & Side: 1-1/2" Discharge, Manufactured by Pentair.

Brand: STA-RITE

Series:

D High Head Centrifugal Pumps

Item: DHE3-HVS

Retail Price: $1,859.20

Ships within 1 business day (in-stock items). Delivery typically 1-5 business days.

Returns accepted within 30 days. View Returns Policy

Estimate Shipping

Zip Code

Overview

Sta-Rite DHE3-HVS D Series High Head, Self-Priming Centrifugal Pump. 1 HP, 208-230/460 Volts, 60 Hz, 3 Ph (Three Phase) Motor, Noryl Impeller, Top & Side: 1-1/2" Discharge, Manufactured by Pentair.

Literature & Manuals

Find the manuals, product sheets and all the information you need

Type	Title	Link
Brochures	D High Head Centrifugal Pumps Brochure	View
Installation & Operation Manuals	D High Head Centrifugal Pumps Manual	View
Installation & Operation Manuals	D High Head Pump Manual	View

Series Information

D High Head Centrifugal Pumps Information

Features & Benefits
Sta-Rite D Series High Head Centrifugal Pumps Features And Benefits: Drain port provided for easy winterizing Normal wear parts are easily accessible for service and replacement without disturbing piping or mounting heavy-duty motors are designed for continuous operation
General Description
Sta-Rite D Series High Head Centrifugal Pumps General Specifications: BODY CONSTRUCTION: Cast Iron HORSEPOWER: Available in 1, 1.5, 2, 2.5, 3, qnd 5 HP MAXIMUM CAPACITY: 46 GPM (model DHJ) FLOW at 10' LIFT and 30 PSI: 42 GPM (model DHF) MAX LIFT: 25' MAX OUTPUT PRESSURE: 60 PSI (model DHJ) MAX TOTAL PRESSURE (Inlet + Pump Pressure): DHE: 115 PSI / HF: 120 PSI / DHG: 135 PSI / DHHG: 140 PSI / DHH: 150 PSI / DHJ: 160 PSI SUCTION SIZE: Order separate flange (1-1/2", 2", 2-1/2", or 3") DISCHARGE SIZE: Depends Upon Specific Model. See Spec Sheet under "RESOURCES" Tab VOLTAGE: Available in 115v/230v 1-phase, OR 208v-230v/460v 3-phase, all 60 Hz MAXIMUM LIQUID TEMPERATURE: 140 F (60 C)

Related Products and Parts

Popular Series

Series associated to this product and brand

Type

Title

Link

Brochures

D High Head Centrifugal Pumps Brochure

View

Installation & Operation Manuals

D High Head Centrifugal Pumps Manual

View

Installation & Operation Manuals

D High Head Pump Manual

View

Features & Benefits

Sta-Rite D Series High Head Centrifugal Pumps Features And Benefits:
Drain port provided for easy winterizing
Normal wear parts are easily accessible for service and replacement without disturbing piping or mounting
heavy-duty motors are designed for continuous operation

General Description

Sta-Rite D Series High Head Centrifugal Pumps General Specifications:
BODY CONSTRUCTION: Cast Iron
HORSEPOWER: Available in 1, 1.5, 2, 2.5, 3, qnd 5 HP
MAXIMUM CAPACITY: 46 GPM (model DHJ)
FLOW at 10' LIFT and 30 PSI: 42 GPM (model DHF)
MAX LIFT: 25'
MAX OUTPUT PRESSURE: 60 PSI (model DHJ)
MAX TOTAL PRESSURE (Inlet + Pump Pressure): DHE: 115 PSI / HF: 120 PSI / DHG: 135 PSI / DHHG: 140 PSI / DHH: 150 PSI / DHJ: 160 PSI
SUCTION SIZE: Order separate flange (1-1/2", 2", 2-1/2", or 3")
DISCHARGE SIZE: Depends Upon Specific Model. See Spec Sheet under "RESOURCES" Tab
VOLTAGE: Available in 115v/230v 1-phase, OR 208v-230v/460v 3-phase, all 60 Hz
MAXIMUM LIQUID TEMPERATURE: 140 F (60 C)
