Image shown may not be actual product

DS3HE

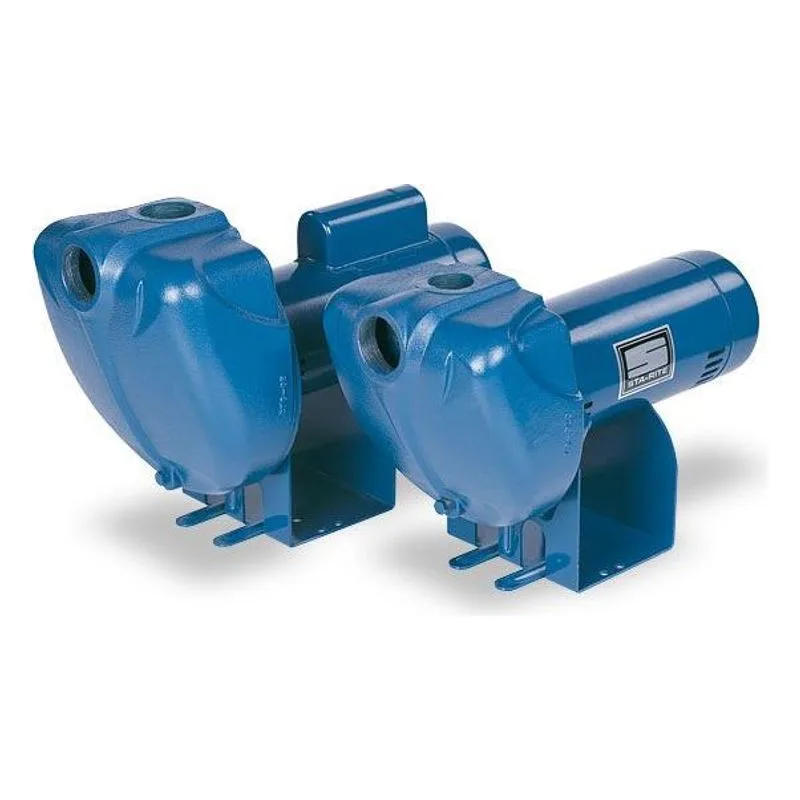

STA-RITE Pumps DS3HE, DS3 Self-Priming Pump, High Head, 1 HP, 115/230 Volts, 1 Phase

Brand: STA-RITE

Series:

DS3 PRO-Storm Centrifugal Pumps

Item: DS3HE

Retail Price: $1,164.00

Returns generally accepted within 30 days; manufacturer terms apply. View Returns Policy

Estimate Shipping

Zip Code

Overview

STA-RITE Pumps DS3HE, DS3 Self-Priming Pump, High Head, 1 HP, 115/230 Volts, 1 Phase

Literature & Manuals

Find the manuals, product sheets and all the information you need

Type	Title	Link
Data Sheets	DS3 PRO Storm Pump Specifications	View
Installation & Operation Manuals	DS3 PRO Storm Pump Manual	View

Series Information

DS3 PRO-Storm Centrifugal Pumps Information

Features & Benefits
Sta-Rite DS3 Series PRO-Storm Centrifugal Pumps Features And Benefits: "single-body-fill" priming to 25-foot lifts, in less than 5 minutes Completely interchangeable with the original STA-Rite DS2 Series Single- and three-phase available
General Description
Sta-Rite DS3 Series PRO-Storm Centrifugal Pumps General Specifications: BODY CONSTRUCTION: Cast Iron HORSEPOWER: Available in 1, 1-1/2, 2, and 2-1/2 HP MAXIMUM CAPACITY: 83 GPM (models DS3HHG & DS3HHG3) FLOW at 10' LIFT and 40 PSI: 30 GPM (models DS3HF & DS3HF3) MAX LIFT: 25' MAXIMUM DISCHARGE PRESSURE: 62 PSI MAXIMUM TOTAL PRESSURE (Inlet + Pump Pressure): DS3HE: 110 PSI / DS3HF: 125 PSI / DS3HG: 135 PSI / DS3HH: 145 PSI SUCTION SIZE: 2" NPT DISCHARGE SIZE: 1-1/2" NPT, 2HP and 2-1/2HP are 2" NPT VOLTAGE: 115v/230v, 1-phase OR 230v/460v 3-phase, 60 Hz MAXIMUM LIQUID TEMPERATURE: 140 F (60 C)
