PLF-2MS2

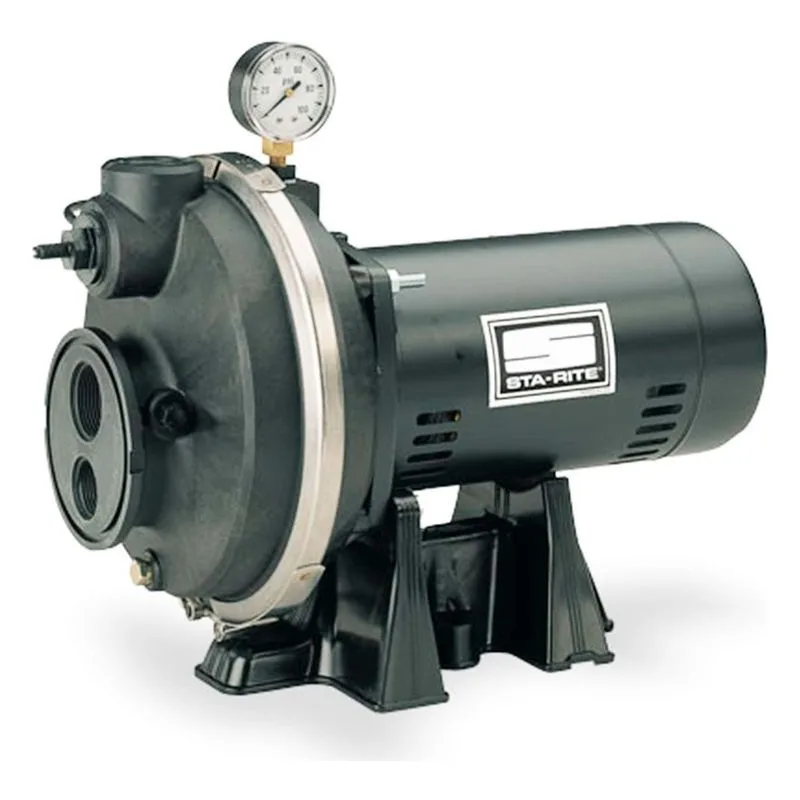

Sta-Rite PLF-2MS2 PL Series Thermoplastic, Convertible Deep Well Jet Pump. 1-1/2 HP, 230/460 Volts, 60 Hz, Noryl Impeller, 1-1/4" Suction, 1" Discharge, Manufactured by Pentair.

Brand: STA-RITE

Series:

PL Convertible Deep Well Jet Pumps

Item: PLF-2MS2

Retail Price: $2,275.20

Ships within 1 business day (in-stock items). Delivery typically 1-5 business days.

Returns accepted within 30 days. View Returns Policy

Estimate Shipping

Zip Code

Overview

Sta-Rite PLF-2MS2 PL Series Thermoplastic, Convertible Deep Well Jet Pump. 1-1/2 HP, 230/460 Volts, 60 Hz, Noryl Impeller, 1-1/4" Suction, 1" Discharge, Manufactured by Pentair.

Literature & Manuals

Find the manuals, product sheets and all the information you need

Type	Title	Link
Data Sheets	PL Deep Well Jet Pump Specifications	View
Installation & Operation Manuals	PL Deep Well Jet Pump Manual	View
Installation & Operation Manuals	PL Deep Well Jet Pump Manual	View
Installation & Operation Manuals	PL Series Deep Well Jet Pump Installation Manual	View

Series Information

PL Convertible Deep Well Jet Pumps Information

Features & Benefits
Sta-Rite PL Series Convertible Deep Well Jet Pump Features And Benefits: Superior Rustproof Construction - Pump body is Dura-Glas fiberglass reinforced thermoplastic - lightweight, rustproof and exceptionally strong. All components in contact with water are resistant to the corrosive and abrasive forces found in the most aggressive water conditions. Heavy-duty Motor - Dustproof canopy completely encloses electrical components and provides dust, dirt and insect protection. Ventilating air cannot contaminate vital switching components. Permanently lubricated, heavy-duty ball bearings ensure smooth, quiet operation and extended motor life. Precision Diffuser - Multi-port, reinforced polypropylene design primes faster and handles more air. Precision Molded Impeller - Precision molded Noryl® gives perfect balance and ultra-smoothness for highest performance and efficiency.
General Description
Sta-Rite PL Series Convertible Deep Well Jet Pump General Specifications: BODY CONSTRUCTION: Thermoplastic HORSEPOWER: Available in 1/2 thru 1-1/2 HP MAXIMUM CAPACITY: 26.3 GPM (Model PLE with Shallow Well Setup) FLOW at 10' LIFT and 40 PSI: 13.8 GPM (Model PLD Shallow Well Setup) MAX LIFT: 25' w/ Shallow Well jet Kit / 60' w/ Deep Well Jet Kit MAX SHUT-OFF PRESSURE: 72 PSI (model PLC in shallow well config) MAXIMUM TOTAL PRESSURE (Inlet + Pump Pressure): PLC: 72 PSI / PLD:62 PSI / PLE: 62 PSI / PLF: 64 PSI PRESSURE SWITCH SETTING: 30-50 PSI SUCTION SIZE: 1-1/4" NPR DRIVE SIZE: 1" NPT (suction-over-drive) DISCHARGE SIZE: 1" NPT AMP DRAW (full load): 6.1 amps on 230v / 12.2 amps on 115v VOLTAGE: 115v/230v AC, 60 Hz, 1-phase MAXIMUM LIQUID TEMPERATURE: 140 F (60 C)

Related Products and Parts

Popular Series

Series associated to this product and brand

Type

Title

Link

PL Deep Well Jet Pump Specifications

View

PL Deep Well Jet Pump Manual

View

PL Deep Well Jet Pump Manual

View

PL Series Deep Well Jet Pump Installation Manual

View

Features & Benefits

Sta-Rite PL Series Convertible Deep Well Jet Pump Features And Benefits:
Superior Rustproof Construction - Pump body is Dura-Glas fiberglass reinforced thermoplastic - lightweight, rustproof and exceptionally strong. All components in contact with water are resistant to the corrosive and abrasive forces found in the most aggressive water conditions.
Heavy-duty Motor - Dustproof canopy completely encloses electrical components and provides dust, dirt and insect protection. Ventilating air cannot contaminate vital switching components. Permanently lubricated, heavy-duty ball bearings ensure smooth, quiet operation and extended motor life.
Precision Diffuser - Multi-port, reinforced polypropylene design primes faster and handles more air.
Precision Molded Impeller - Precision molded Noryl® gives perfect balance and ultra-smoothness for highest performance and efficiency.

General Description

Sta-Rite PL Series Convertible Deep Well Jet Pump General Specifications:
BODY CONSTRUCTION: Thermoplastic
HORSEPOWER: Available in 1/2 thru 1-1/2 HP
MAXIMUM CAPACITY: 26.3 GPM (Model PLE with Shallow Well Setup)
FLOW at 10' LIFT and 40 PSI: 13.8 GPM (Model PLD Shallow Well Setup)
MAX LIFT: 25' w/ Shallow Well jet Kit / 60' w/ Deep Well Jet Kit
MAX SHUT-OFF PRESSURE: 72 PSI (model PLC in shallow well config)
MAXIMUM TOTAL PRESSURE (Inlet + Pump Pressure): PLC: 72 PSI / PLD:62 PSI / PLE: 62 PSI / PLF: 64 PSI
PRESSURE SWITCH SETTING: 30-50 PSI
SUCTION SIZE: 1-1/4" NPR
DRIVE SIZE: 1" NPT (suction-over-drive)
DISCHARGE SIZE: 1" NPT
AMP DRAW (full load): 6.1 amps on 230v / 12.2 amps on 115v
VOLTAGE: 115v/230v AC, 60 Hz, 1-phase
MAXIMUM LIQUID TEMPERATURE: 140 F (60 C)
