SLE

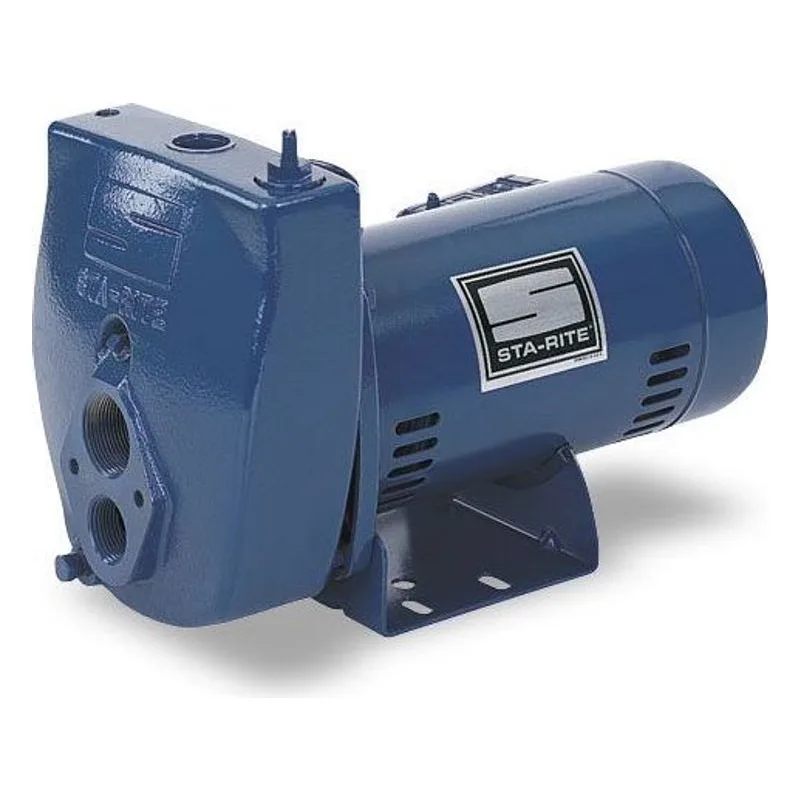

Sta-Rite SL Series ProJet Convertible Jet Pump Features And Benefits:
Quality Construction - Close-grained cast iron pump body is rugged, one-piece unit, specially treated to resist corrosion. Drain port provided for easy winterizing
Precision Molded Diffuser - Pump primes faster, handles more air, with multi-port, precision-molded, reinforced polypropylene diffuser.
Motor Windings - Superior insulation materials protect against excessive moisture and contaminants…assures prolonged motor life.
Heavy-duty Ball Bearings - Shielded, permanently lubricated bearings, extensively tested to ensure extended life and smooth quiet operation.

Sta-Rite SL Series ProJet Convertible Jet Pump General Specifications:
BODY CONSTRUCTION: Cast Iron
HORSEPOWER: Available in 1/2, 3/4, 1, or 1-1/2 HP
MAXIMUM CAPACITY: 26.8 GPM (SLF with Shallow Well Setup)
FLOW at 10' LIFT and 40 PSI: 11.3 GPM (SLD with shallow well setup)
MAX LIFT: 25' w/ Shallow Well Setup / 70' w/ Deep Well Setup
MAX SHUT-OFF PRESSURE: 127 PSI (model SLF in deep well setup drawing from shallow well)
MAXIMUM INLET PRESSURE: 50 PSI
PRESSURE SWITCH SETTINGS: 30-50 PSI
SUCTION SIZE: 1-1/4" NPT
DRIVE SIZE: 1" NPT (suction-over-drive)
DISCHARGE SIZE: 1" NPT
AMP DRAW (full load):
VOLTAGE: 115v/230v 60 Hz, 1-phase
RECOMMENDED BREAKER:
MAXIMUM LIQUID TEMPERATURE: 140°F (60°C)
