Econ FP Series Flow Activated Peristaltic Metering Pumps

Stenner Econ FP Series Flow-Activated Peristaltic Pumps

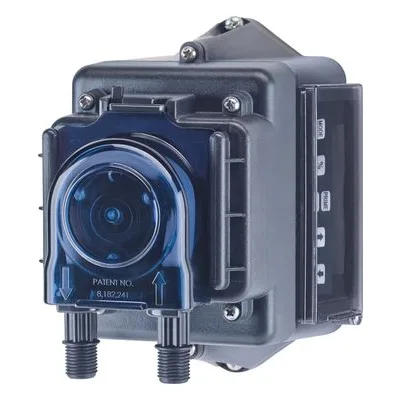

The Stenner Econ FP Series is a flow-activated peristaltic metering pump designed for light-duty water treatment and chemical injection applications. Built for residential private water wells, drinking water disinfection, pH adjustment, and water conditioning systems, the Econ FP combines simple programming, reliable flow-based operation, and easy maintenance in a compact, wall-mountable design.

The Econ FP can be activated by a water meter, control valve, flow switch, or other flow-responsive control equipment. The pump accepts either a dry contact signal or a 12-24 VAC/VDC signal and operates at a programmable speed or run time based on the selected operating mode. A six-button control panel with backlit LCD display makes setup straightforward, while keypad lockout functionality helps prevent unauthorized adjustments.

Key Features

• Flow-activated peristaltic metering pump

• Up to 30 GPD output at 80 PSI

• Three operating modes: Seconds, Flow Switch, and Auxiliary

• Adjustable output from 10% to 100% in 1% increments

• 10:1 turndown capability

• Six-button keypad with backlit LCD display

• Automatic keypad lock after one minute of inactivity

• Enclosed weather-resistant housing

• cULus listed for indoor and outdoor use

• Available in 120V, 230V, and 24VDC configurations

• Continuous-duty operation

• Wall-mountable design

Three Flexible Operating Modes

The Econ FP provides application flexibility through three user-selectable operating modes:

Seconds Mode

• Receives a dry contact signal from a water meter or control valve

• Runs for a programmable amount of time after receiving a signal

• Adjustable from 10% to 100% in 1% increments

Flow Switch Mode

• Accepts a dry contact signal from a two-wire flow switch

• Runs at the programmed speed while flow is detected

Auxiliary Mode

• Accepts a 12-24 VAC/VDC signal from flow-responsive control equipment

• Operates at the programmed speed while the signal is present

Simplified Maintenance

The Econ FP features Stenner's patented quick-release pump head, allowing pump tube replacement without tools. Combined with a solid one-piece tube design and enclosed housing, the pump is engineered to simplify routine service and minimize downtime.

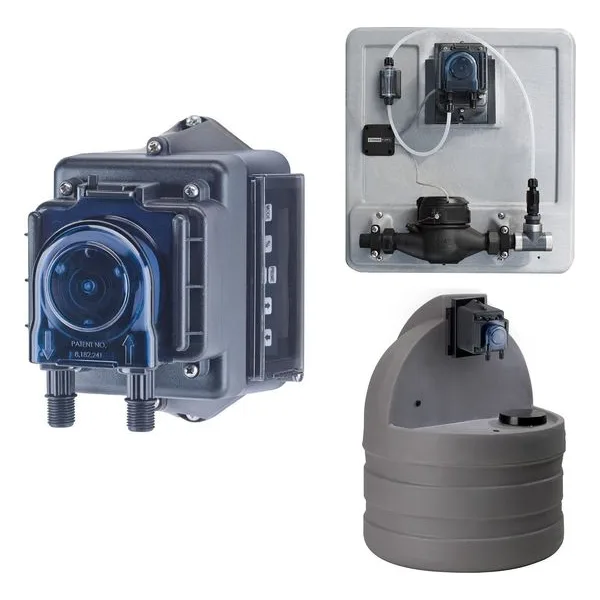

Available System Configurations

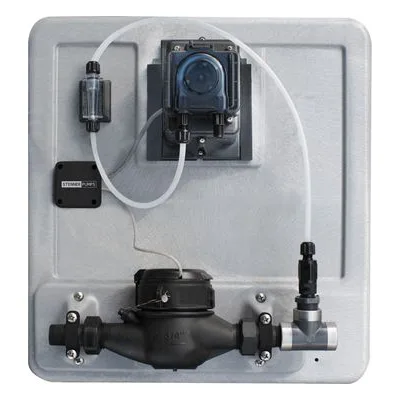

Meter System

• Pre-assembled on a heavy-duty panel

• Includes a 3/4" or 1" dry contact water meter

• Features a flow indicator and integrated junction box

• Designed to reduce installation time

Tank System

• Available with 7.5, 15, or 30-gallon tanks

• UV gray option for outdoor installations

• Translucent white option for indoor applications

• Provides a turnkey chemical feed solution

Typical Applications

• Drinking water disinfection

• Residential well water treatment

• pH adjustment

• Water conditioning systems

• Chemical injection systems

• Homes and farm water systems

With flow-based activation, flexible operating modes, easy programming, and tool-free maintenance, the Stenner Econ FP Series delivers a dependable and cost-effective solution for light-duty chemical metering and water treatment applications.
