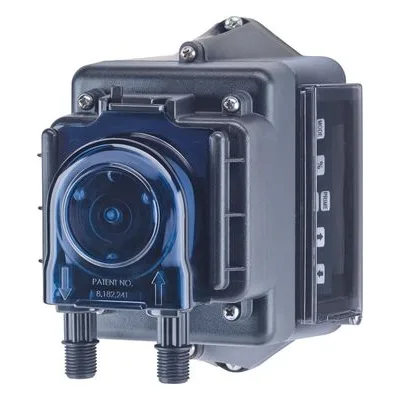

Econ Integrator Series Flow Activated Peristaltic Metering Injector Pumps

Stenner Econ Integrator™ Flow-Activated Proportional Injection Pumps

The Stenner Econ Integrator™ Series is a flow-activated peristaltic metering pump designed for proportional chemical injection applications where accurate dosing and signal integration are critical. Combining three operating modes, adjustable output control, and a built-in repeater relay, the Econ Integrator provides a flexible solution for livestock water treatment, agricultural operations, water conditioning, disinfectant injection, and pH adjustment systems.

Unlike traditional chemical feed pumps, the Econ Integrator can receive a signal from a water meter, flow switch, control valve, or other flow-responsive equipment while simultaneously repeating that signal to another device. This allows multiple pumps or controllers to operate from a single water meter without interrupting water consumption monitoring.

Key Features

• Flow-activated proportional injection pump

• Built-in repeater relay with dry contact output

• Up to 30 GPD output at 80 PSI

• Three operating modes

• Adjustable output from 10% to 100% in 1% increments

• 10:1 turndown capability

• Six-button control pad with backlit LCD display

• Standby mode for easier service and maintenance

• Patented quick-release pump head

• Tool-free tube replacement

• Indoor/outdoor rated design

• Available in 120V, 230V, and 24VDC configurations

• Continuous-duty brushless motor

Built-In Repeater Relay

The defining feature of the Econ Integrator is its internal repeater relay. The relay outputs the same dry contact signal received by the pump, allowing one water meter to activate multiple pumps or communicate simultaneously with monitoring and control equipment.

This feature is especially valuable for livestock and poultry operations where water consumption data is used as an indicator of animal health. The repeater relay allows a flow meter signal to reach both the chemical injection pump and the house controller without requiring an additional meter.

Three Operating Modes

Seconds Mode

• Accepts a dry contact signal

• Runs for a programmable amount of time

• Adjustable from 10% to 100% in 1% increments

Flow Switch Mode

• Accepts a two-wire dry contact flow switch

• Runs at a programmed speed while flow is detected

Auxiliary Mode

• Accepts a 12-24 VAC/VDC signal from compatible control equipment

• Runs at a programmed speed while the signal is present

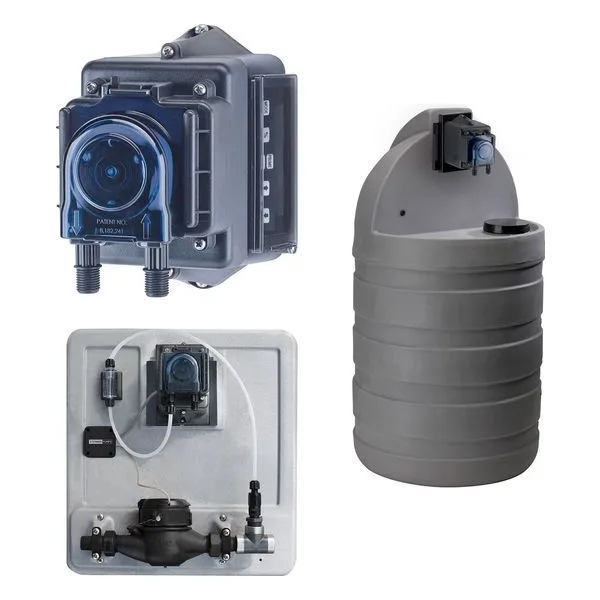

Available System Configurations

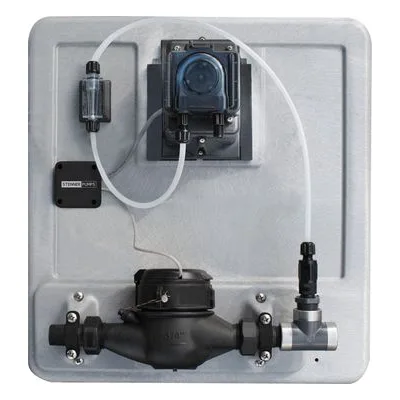

Meter System

• Includes a dry contact 3/4" or 1" water meter

• Mounted on a heavy-duty panel

• Designed for fast installation and turnkey operation

Tank System

• Available with 7.5, 15, or 30-gallon tanks

• UV gray tanks for outdoor installations

• White tanks for indoor applications

Typical Applications

• Livestock water treatment

• Poultry operations

• Drinking water disinfection

• pH adjustment

• Agricultural chemical injection

• Water conditioning systems

With accurate proportional injection, integrated signal repeating capability, and installer-friendly operation, the Stenner Econ Integrator™ Series provides a reliable solution for flow-based chemical feed applications where dosing accuracy and system integration are equally important.
