SE20MH81S340

Reliable Water Treatment for Livestock and Poultry Operations

The Stenner Econ Stennicator® Series was designed specifically for livestock and poultry facilities that depend on accurate water treatment and consistent water delivery. Unlike traditional water-driven medicators, the Stennicator is an electric peristaltic pump that injects treatment solutions directly into the water line at a fixed 1:128 ratio, helping ensure reliable dosing without restricting water flow.

Using signals from a pulsing water meter, the pump automatically injects disinfectants, acids, and other livestock water treatment products as water is being consumed. This makes it a practical solution for maintaining water quality while supporting animal health programs.

Built for Modern Livestock Facilities

One of the most valuable features of the Stennicator is its built-in repeater relay. This allows the water meter signal to be shared with a controller while simultaneously operating the pump. Water consumption can continue to be monitored even when the pump is in standby mode, helping producers maintain visibility into water usage, an important indicator of livestock and poultry health.

The compact footprint also makes the pump easy to integrate into existing facilities using an existing pulse water meter.

Key Benefits

, Injects directly into the water line

, Eliminates bypass systems that can restrict flow

, Accurate fixed-ratio dosing

, Works with existing pulse water meters

, Built-in repeater relay for controllers and monitoring systems

, Compatible with strong acids and disinfectants

, Not affected by scale, solids, or poor water quality

, Indoor and outdoor rated design

, Continuous-duty brushless motor

Easy Maintenance and Operation

The Stennicator incorporates Stenner's patented quick-release pump head, allowing tube replacement without tools. A standby mode lets the pump remain inactive while continuing to pass the water meter signal to the controller, simplifying maintenance without interrupting water monitoring.

Additional features include:

, Self-priming operation up to 25 feet

, Ability to run dry

, No loss of prime from gaseous solutions

, Tool-free servicing

, Compact installation footprint

Available System Configurations

For easier installation, the Stennicator is available as complete Meter System and Tank System packages.

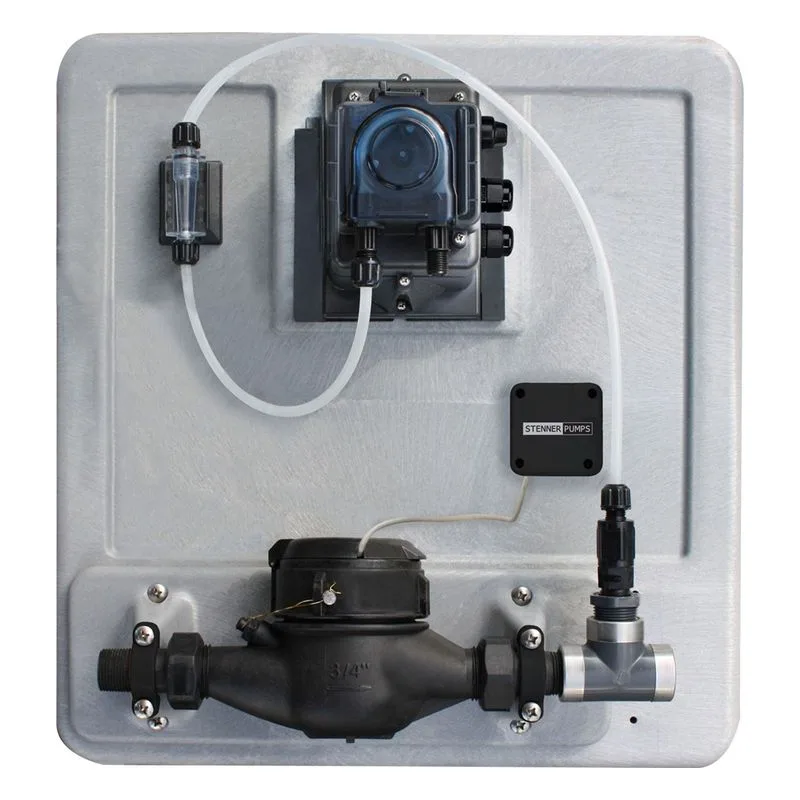

Meter System

, Includes a dry contact 3/4" or 1" water meter

, Available with one or two Stennicator pumps

, Factory-mounted on a heavy-duty panel

Tank System

, 7.5, 15, and 30-gallon capacities

, UV gray tanks for outdoor use

, White tanks for indoor use

Performance Highlights

, Fixed 1:128 dosing ratio

, Up to 2.7 oz/min output

, Up to 80 PSI operating pressure

, Compatible with 1 PPG, 10 PPG, and 1 PPL pulse rates

, Continuous-duty operation

, Available in 120V, 230V, and 24VDC models

For poultry houses, livestock barns, and agricultural water treatment systems, the Stenner Econ Stennicator® Series provides a simple and reliable way to deliver accurate chemical treatment while maintaining uninterrupted water flow and water consumption monitoring.
