Proportional Injection Systems Series

Stenner Proportional Injection Systems

The Stenner Proportional Injection System is a pre-assembled chemical feed package designed to dose solution in direct proportion to water usage. By measuring water volume through a dry contact water meter and automatically adjusting chemical injection accordingly, the system helps maintain accurate treatment across varying flow conditions.

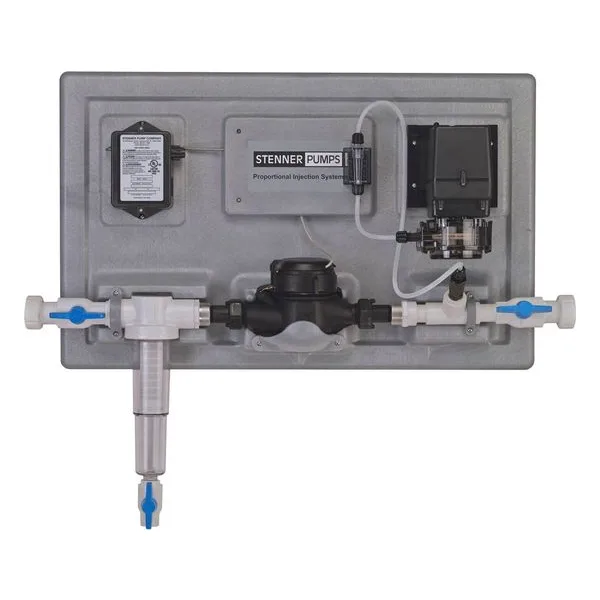

Factory-assembled on a heavy-duty mounting panel, the system combines a Classic Series Single Head Fixed Output Pump, a PCM (Pump Control Module), and a 3/4" dry contact water meter into one convenient package. All major components are pre-mounted for faster installation, simplified service, and a clean, organized appearance.

How the System Works

The water meter monitors system flow and sends a signal to the PCM controller. The PCM then activates the Classic Series metering pump based on water volume, ensuring chemical injection remains proportional to actual water usage.

This approach helps provide consistent treatment across changing flow rates and varying water demands.

Complete Pre-Assembled Package

Each system includes:

• Classic Series Single Head Fixed Output Pump

• PCM (Pump Control Module)

• 3/4" dry contact water meter

• Flow indicator to confirm chemical feed

• Spin-down filter with 30 and 100 mesh screens

• PVC unions for easy installation and removal

• Heavy-duty mounting panel

• Cord and wire management compartment

• Wall mounting bracket

Key Features

• Proportional dosing based on water volume

• Factory pre-assembled system

• Water meter activated operation

• Flow indicator to verify injection

• Enclosed wiring compartment

• Easy-access service design

• Lead-free plastic water meter

• Available with 1, 2, or 4 pulses-per-gallon meters

• Suitable for varying flow applications

Typical Applications

• Well water treatment systems

• Irrigation systems

• Poultry and livestock facilities

• Variable-speed well pump systems

• Systems with fluctuating water demand

• Municipal and commercial water treatment

Proven Classic Series Performance

The system utilizes Stenner's Classic Series fixed output pump, offering:

• Self-priming operation

• Continuous-duty performance

• Up to 100 PSI operating pressure

• 25-foot maximum suction lift

• ±2% reproducibility

• Ability to pump off-gassing solutions

• Tool-free tube replacement

By combining proportional chemical injection, factory-mounted components, and dependable Classic Series pump technology, the Stenner Proportional Injection System provides an efficient solution for water treatment applications where chemical feed must accurately follow water usage.
