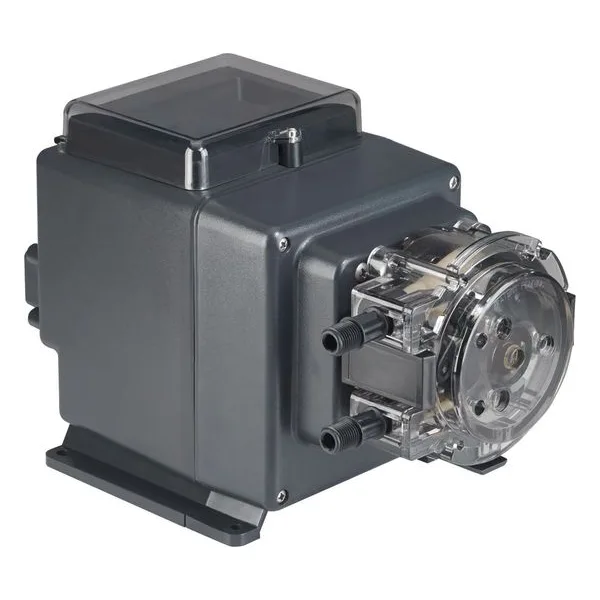

S10P Series Peristaltic Metering Pumps

Stenner S10P Series Flow-Activated Peristaltic Metering Pumps

The Stenner S10P Series is a robust flow-activated peristaltic metering pump designed for water treatment, well water applications, pH correction, disinfection, and other chemical injection systems that require dosing based on water flow. The pump accepts signals from water meters, control valves, flow switches, and other flow-responsive equipment, providing accurate and repeatable chemical feed in a durable, enclosed package.

With outputs up to 30 GPD at 100 PSI, leak detection, signal repeating capability, tube maintenance tracking, and multiple operating modes, the S10P Series combines the flexibility of a programmable pump with the reliability of Stenner's proven peristaltic technology.

Multiple Operating Modes

The S10P can be configured to match a wide variety of flow-activated applications:

10 PPG Mode

• Works with 10 PPG dry contact water meters

• Designed for process flows from 0.1 to 14.0 GPM

• Delivers steady solution distribution

• Adjustable from 50% to 100% output

Flow Switch Mode

• Accepts a dry contact from a two-wire flow switch

• Operates while flow is present

• Adjustable from 10% to 100% speed

Seconds Mode

• Accepts a dry contact pulse

• Runs for a programmed time per signal

• Adjustable from 0.1 to 60 seconds

Auxiliary Mode

• Accepts a 12-24 VAC/VDC signal

• Runs while the signal is received

• Adjustable from 10% to 100% speed

Advanced Monitoring Features

The S10P includes built-in monitoring and maintenance functions that help reduce downtime and simplify service.

Key functions include:

• Leak detection with dedicated relay

• Signal repeater for additional pumps or devices

• Fluid level input capability

• Tube life tracking

• Tube change reminders

• Pump run hour tracking

• Keypad lock function

• LCD display with status indicators

Key Features

• Flow-activated operation

• Up to 30 GPD output

• Operating pressure up to 100 PSI

• Brushless DC motor

• Indoor/outdoor rated housing

• Tool-free tube replacement

• Self-priming performance

• Can run dry

• Handles off-gassing solutions

• ±2% reproducibility

• 2-year warranty

Typical Applications

• Well water treatment

• Chlorination systems

• pH adjustment

• Water softener chemical feed

• Disinfection systems

• Water meter activated injection

• General water treatment applications

The Stenner S10P Series provides a reliable solution for applications requiring flow-based chemical dosing, combining flexible operating modes, leak protection, and maintenance monitoring in one compact pump platform.
