Stenner Econ Vaccinator Series Peristaltic Metering Pumps Brochure

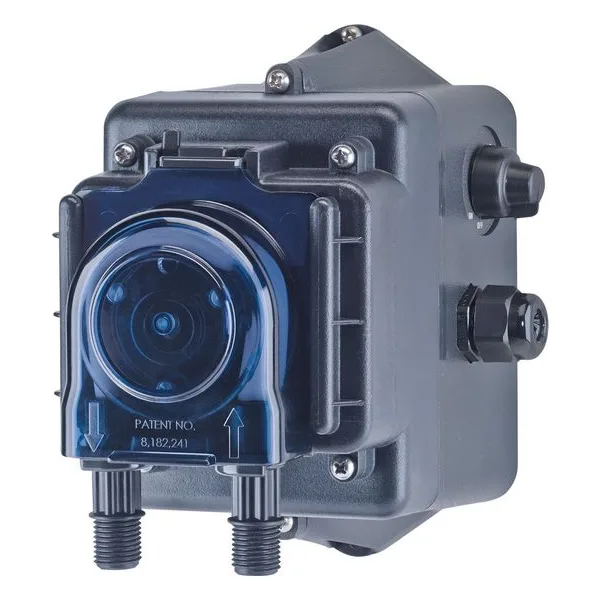

Stenner Econ Vaccinator™ Livestock Waterline Vaccine Injection Pumps

The Stenner Econ Vaccinator™ Series is a specialized peristaltic pump designed to deliver liquid oral vaccines directly into livestock and poultry water lines. Engineered to consistently inject 1 gallon of vaccine over a 6-hour period, the Vaccinator provides accurate dosing while simplifying vaccination programs and reducing labor requirements.

Unlike traditional proportioners that depend on water bypass systems, the Econ Vaccinator injects directly into the water line. This approach helps maintain unrestricted water flow while ensuring vaccine solution is distributed consistently throughout the herd or flock.

Key Features

• Delivers 1 gallon of vaccine over 6 hours

• Factory-programmed 375-minute run cycle

• Built-in timer automatically shuts off the pump

• Direct waterline injection

• Eliminates pre-measuring stock solutions

• Patented quick-release pump head

• Tool-free tube replacement

• Self-priming peristaltic design

• Indoor/outdoor rated construction

• Brushless motor

• Enclosed housing

• Optional mounting accessories available

Designed for Accurate Vaccination

The Econ Vaccinator provides a consistent injection rate over the six-hour dosing period, helping ensure vaccine is distributed throughout the entire water system. Direct injection eliminates the need for mixing stock solutions and reduces the labor traditionally associated with livestock vaccination programs.

Reliable Peristaltic Pump Technology

The pump utilizes a self-priming peristaltic design that offers several operational advantages:

• Maintains prime without a foot valve

• Handles off-gassing solutions without vapor lock

• Can operate reliably in demanding farm environments

• Output reproducibility of ±2%

• 3-point roller design assists with anti-siphon protection

Performance Specifications

• Maximum output: 0.36 oz/min

• Maximum working pressure: 80 PSI

• Maximum suction lift: 25 feet

• Maximum operating temperature: 104°F

• Continuous-duty operation

• Available in 120V 60Hz and 230V 50Hz models

Typical Applications

• Poultry vaccination programs

• Livestock vaccination programs

• Oral vaccine delivery through water lines

• Herd and flock health management systems

By combining direct waterline injection, automatic timer-controlled operation, and dependable peristaltic pump technology, the Stenner Econ Vaccinator™ Series provides an accurate and labor-saving solution for livestock and poultry vaccination applications.
