IX-B030TET-E

Metering

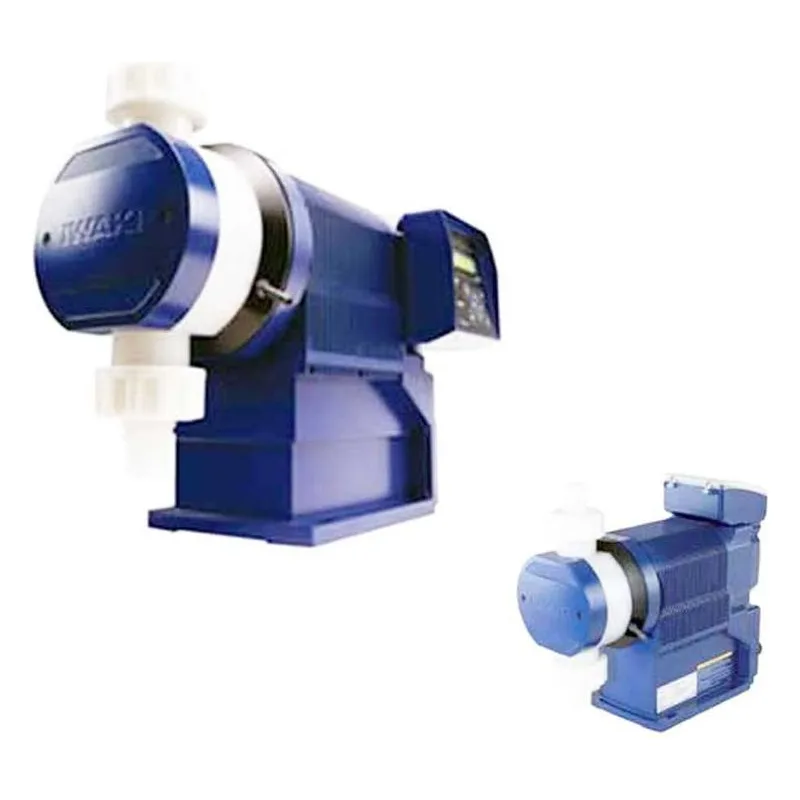

Walchem IX Chemical Metering Pumps Features & Benefits

High Turndown Ratio - Motor control adjusts the discharge and suction speeds to meet a full and accurate turndown ratio of 750:1 (300 l/h to 200 ml/h).

High Accuracy - Combined with precise motor control, an efficient valve design maintains accurate flow rates to allow a low-cost, mechanically-driven diaphragm pump to achieve a high accuracy of ±1%.

Energy Savings - Helical gears and return spring reduce power consumption by up to 70% compared to conventional mechanical diaphragm metering pumps.

High Compression Pump Head Design - A fixed stroke length maintains high compression in each stroke resulting in fast priming and no air-lock at any flow rate up to rated pressures.

Motor control adjusts the discharge and suction speeds to meet a full and accurate turndown ratio of 750:1 (300 L/h to 200 mL/h)

Maintains accurate flow rates allowing a low cost, mechanically-driven diaphragm pump to achieve a high accuracy of ±1%.

Helical gears and return springs reduce power consumption by up to 70% compared to conventional motor-driven mechanical diaphragm metering pumps.

Fixed stroke length maintains a high compression ratio in each stroke resulting in fast priming and no air-lock at any flow rate.

Controller position can be ordered in 6 positions for operator convenience and ease of use after installation.
