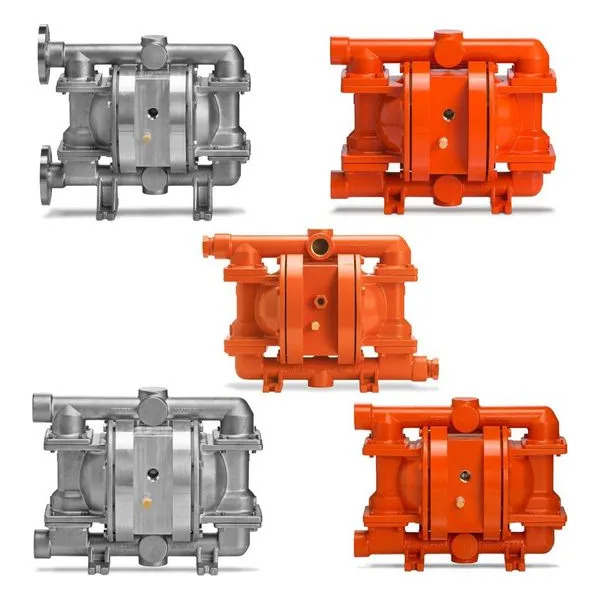

1" (25mm) Bolted Metal Pro-Flo SHIFT (PS220/PS230)

The Wilden® FIT bolted metal pump, 25mm (1") Pro-Flo® SHIFT establishes a fresh benchmark for pump performance. With an enhanced flow path design, these bolted-construction pumps deliver improved flow rates (up to 35% higher than competitive models) and extended diaphragm life. Additionally, Wilden’s bolted pumps are designed for superior containment and share the same bolt-down footprint and inlet/discharge connections as Wilden clamped pumps, ensuring easy replacement.

Features & Benefits
• NPT or BSPT threaded inlet/discharge liquid connections (PS220)
• DIN or ANSI flanged inlet/discharge liquid connections (PS230) that don't require welding or nipple attachment
• Featuring the energy-efficient Pro-Flo® SHIFT ADS
• Greater flow - more gallons pumped per SCFM
• Reduced air consumption and kilowatt usage
• Largest chemical compatibilities
• Portable and submersible
• Large-solids passage
• High suction lift
• Ease of operation and maintenance
• Flexible internal adjustment on manifolds
• Increased on/off reliability
• Longest Mean Time Between Repair (MTBR)

Wetted Housings - Materials
Aluminum - 19 kg (41 lb)
Ductile Iron - 29 kg (64 lb)
Stainless Steel - 31 kg (68 lb)
Alloy C - 36 kg (80 lb)

Non-Wetted Housings - Material
Center Section / Center Block - Aluminum
Air Valve - Aluminum

Diaphragm Pump Specifications:

• Air Inlet: 1/2" FNPT

• Liquid Inlet: 15 mm (1")

• Liquid Discharge: 25 mm (1")

• Connection Type: NPT/BSPT (Threaded) | DIN/ANSI (Flanged)

• Maximum Suction Lift Capability:

  • Rubber – 6.9 m (22.7') Dry, 9.0 m (29.5') Wet

  • TPE – 5.9 m (19.3') Dry, 9.0 m (29.5') Wet

  • Full-Stroke PTFE – 5.2 m (17.0') Dry, 9.0 m (29.5') Wet

• Maximum Flow Rate:

  • Rubber – 204 lpm (54 gpm)

  • TPE – 212 lpm (56 gpm)

• Full-Stroke PTFE – 197 lpm (52 gpm)

• Maximum Pressure: 8.6 bar (125 psi)

• Maximum Diameter Solids: 6.4 mm (1/4")

• *Displacement Per Stroke:

  • Rubber – 0.30 L (0.08 gal)

  • TPE – 0.26 L (0.07 gal)

  • Full-Stroke PTFE – 0.30 L (0.08 gal)

  • * 1 cycle = 2 strokes

Elastomer Options
Buna-N | -12°C to 82°C (10°F to 180°F)
EPDM | -51°C to 138°C (-60°F to 280°F)
FKM | -40°C to 177°C (-40°F to 350°F)
Geolast® | -40°C to 82°C (-40°F to 180°F)
Neoprene | -18°C to 93°C (0°F to 200°F)
PTFE* | 4°C to 104°C (40°F to 220°F)
Polyurethane | -12°C to 66°C (10°F to 150°F)
Saniflex™ | -29°C to 104°C (-20°F to 220°F)
Wil-Flex™ | -40°C to 107°C (-40°F to 225°F)
