3" (76mm) Bolted Metal Pro-Flo SHIFT (PS1520/PS1530)

About 3" (76mm) Bolted Metal Pro-Flo SHIFT (PS1520/PS1530)

Wilden's 3" PS1520 / PS1530 76mm bolted metal pump, also known as FIT, sets the new standard for pump performance. Featuring an optimal flow path design, Wilden's bolted-construction pumps offer improved flow rates (up to 35% over competitive models) as well as improved diaphragm lifespan. Wilden's bolted pumps are also designed for superior containment and have the exact bolt down footprint and inlet / outlet discharge connections as Wilden clamped pumps for easy replacement.

Features & Benefits
• NPT or BSPT threaded inlet/discharge liquid connections (PS1520)
• DIN or ANSI flanged inlet/discharge liquid connections (PS1530) that don't require welding or nipple attachment
• Featuring the energy-efficient Pro-Flo® SHIFT ADS
• Greater flow - more gallons pumped per SCFM
• Reduced air consumption and kilowatt usage
• Largest chemical compatibilities
• Portable and submersible
• Large-solids passage
• High suction lift
• Ease of operation and maintenance
• Flexible internal adjustment on manifolds
• Increased on/off reliability
• Longest Mean Time Between Repair (MTBR)

Wetted Housings - Materials
Aluminum - 69 kg (152 lb) (PS1520) | 101 kg (223 lb) (PS1530)
Stainless Steel - 126 kg (278 lb) (PS1520) | 137 kg (300 lb) (PS1530)
Ductile Iron - 114 kg (251 lb) (PS1520) | 124 kg (272 lb) (PS1530)
Alloy C - 153 kg (337 lb) (PS1530)

Non-Wetted Housings - Materials
Center Section - Aluminum, Polypropylene, Stainless Steel
Air Valve - Aluminum, Polypropylene, Anodized Aluminum, Stainless Steel
Air Chamber - Aluminum, Stainless Steel

Diaphragm Pump Specifications:

Air Inlet: 3/4" FNPT
Liquid Inlet: 76 mm (3")
Liquid Discharge: 76 mm (3")
Connection Type: NPT/BSPT (Threaded) | DIN/ANSI (Flanged)
Maximum Suction Lift Capability:
- Rubber – 7.2 m (23.8') Dry, 9.7 m (31.8’) Wet
- EZ-Install TPE – 6.4 m (21.1') Dry, 9.7 m (31.8’) Wet
- Full-Stroke PTFE – 6.2 m (20.2') Dry, 8.6 m (28.4') Wet
- Full-Stroke PTFE (Ductile Iron) – 5.9 m (19.5') Dry, 9.7 m (31.7') Wet
Maximum Flow Rate:
- Rubber – 1026 lpm (271 gpm)
- EZ-Install TPE – 1026 lpm (271 gpm)
- Full-Stroke PTFE – 992 lpm (262 gpm)
- Full-Stroke PTFE (Ductile Iron) – 874 lpm (231 gpm)
Maximum Pressure: 8.6 bar (125 psi)
Maximum Diameter Solids: 12.7 mm (1/2")
*Displacement Per Stroke:
- Rubber – 5.1 L (1.35 gal)
- EZ-Install TPE – 5.4 L (1.43 gal)
- Full-Stroke PTFE – 5.0 L (1.32 gal)
- Full-Stroke PTFE (Ductile Iron) – 4.8 L (1.26 gal)
- * 1 cycle = 2 strokes

Elastomer Options
Buna-N | -12°C to 82°C (10°F to 180°F)
EPDM | -51°C to 138°C (-60°F to 280°F)
FKM | -40°C to 177°C (-40°F to 350°F)
Geolast® | -40°C to 82°C (-40°F to 180°F)
Neoprene |-18°C to 93°C (0°F to 200°F)
PTFE* | 4°C to 104°C (40°F to 220°F)
Polyurethane | -12°C to 66°C (10°F to 150°F)
Saniflex™ | -29°C to 104°C (-20°F to 220°F)
Wil-Flex™ | -40°C to 107°C (-40°F to 225°F)
* 4°C to 149°C (40°F to 300°F) - 13 mm (1/2") and 25 mm (1") models only

Filters

No filters available

341 products

Wilden

15-13177

Wilden 15-13177 Pro-Flo SHIFT 3" (76mm) Bolted Metal Air Operated Double Diaphragm AODD Pump (PS1530), ATEX Compliant, MODEL: XPS1530/SZAAA/WWL/TF/WF. 76 mm (3") ANSI Flanged Suction & Discharge. Stainless Steel Wetted Parts, Aluminum Air Chamber, Center Block & Air Valve, Wil-Flex Seats & Full Stroke IPD Diaphragms, PTFE Balls. 15-9993-99 ADS Repair Kit, 15-9824-58-217 Wet End Kit, 71-8034 SD Dampener, 79-1003 ISD Dampener, 04-8340-99 FRL/FRC, 65-8115-99 Wil-Gard Available to order. A PSG Dover Brand Product.

$12,813.30

Wilden

15-13178

Wilden 15-13178 Pro-Flo SHIFT 3" (76mm) Bolted Metal Air Operated Double Diaphragm AODD Pump (PS1520), MODEL: PS1520/AAAAA/ZWS/WF/WF/0480. 1,026 lpm (271 gpm) Max Flow, 76 mm (3") NPT Suction & Discharge. Aluminum Wetted Parts, Outer Piston, Air Chamber, Center Block & Air Valve, Wil-Flex Seats, EZ-Install Diaphragms & Balls. 15-9993-99 ADS Repair Kit, 15-9826-58-209 Wet End Kit Available to order. A PSG Dover Brand Product.

$4,078.80

Wilden

15-13179

Wilden 15-13179 Pro-Flo SHIFT 3" (76mm) Bolted Metal Air Operated Double Diaphragm AODD Pump (PS1520), ATEX Compliant, MODEL: XPS1520/SSAAA/FWS/FW/STF. 76 mm (3") NPT Suction & Discharge. Stainless Steel Wetted Parts, Outer Piston & Seats, Aluminum Air Chamber, Center Block & Air Valve, PTFE O-Rings, Wil-Flex Sanitary Diaphragm, Sanitary Wil-Flex Balls. 15-9993-99 ADS Repair Kit Available to order. A PSG Dover Brand Product.

$11,667.60

Wilden

15-13180

Wilden 15-13180 Pro-Flo SHIFT 3" (76mm) Bolted Metal Air Operated Double Diaphragm AODD Pump (XPS1530), ATEX Compliant, MODEL: XPS1530/SZAAA/FWL/FS/FS. 1,026 lpm (271 gpm) Max Flow, 76 mm (3") ANSI Suction & Discharge. Stainless Steel Wetted Parts, Aluminum Air Chamber, Center Block & Air Valve, Saniflex Seats & Balls, Sanitary Wil-Flex (Santoprene) Full Stroke IPD Diaphragms. A PSG Dover Brand Product.

$13,027.50

Wilden

15-13183

Wilden 15-13183 Pro-Flo SHIFT 3" (76mm) Bolted Metal Air Operated Double Diaphragm AODD Pump (PS1520), ATEX Compliant, MODEL: XPS1520/WZAAA/WWL/WF/STF. 76 mm (3") NPT Suction & Discharge. Ductile Iron Wetted Parts, Aluminum Air Chamber, Center Block & Air Valve, Stainless Steel Seat, PTFE O-Rings, Wil-Flex Full Stroke IPD Diaphragms & Balls. 15-9993-99 ADS Repair Kit Available to order. A PSG Dover Brand Product.

$4,785.30

Wilden

15-13185

Wilden 15-13185 Pro-Flo SHIFT 3" (76mm) Bolted Metal Air Operated Double Diaphragm AODD Pump (PS1530), ATEX Compliant, MODEL: XPS1530/AAAAR/TWS/TF/STF. 992 lpm (262 gpm) Max Flow, 76 mm (3") ANSI Flanged Suction & Discharge. Aluminum Wetted Parts, Outer Piston, Air Chamber & Center Block, Anodized-Aluminum Air Valve, Stainless Steel Seat, PTFE O-Rings & Balls, PTFE w/Wil-Flex Backup Full Stroke IPD Diaphragm. 15-9814-55-201 Wet End Kit Available to order. A PSG Dover Brand Product.

$6,822.90

Wilden

15-13187

Wilden 15-13187 Pro-Flo SHIFT 3" (76mm) Bolted Metal Air Operated Double Diaphragm AODD Pump (PS1530), MODEL: PS1530/AZAAA/WWL/TF/WF/0480. 76 mm (3") ANSI Flanged Suction & Discharge. Aluminum Wetted Parts, Air Chamber, Center Block & Air Valve, Wil-Flex Seats & Full Stroke IPD Diaphragms, PTFE Balls. 15-9993-99 ADS Repair Kit Available to order. A PSG Dover Brand Product.

$5,089.50

Wilden

15-13191

Wilden 15-13191 Pro-Flo SHIFT 3" (76mm) Bolted Metal Air Operated Double Diaphragm AODD Pump (PS1520), ATEX Compliant, MODEL: XPS1520/AAAAR/ZWS/NE/NE. 1,026 lpm (271 gpm) Max Flow, 76 mm (3") NPT Suction & Discharge. Aluminum Wetted Parts, Outer Piston, Air Chamber & Center Block, Anodized-Aluminum Air Valve, Neoprene Seats & Balls, Wil-Flex EZ-Install Diaphragms. A PSG Dover Brand Product.

$4,085.10

Wilden

15-13196

Wilden 15-13196 Pro-Flo SHIFT 3" (76mm) Bolted Metal Air Operated Double Diaphragm AODD Pump (PS1530), ATEX Compliant, MODEL: XPS1530/WWAAA/VTS/TF/MTF. 1,026 lpm (271 gpm) Max Flow, 76 mm (3") ANSI Flanged Suction & Discharge. Ductile Iron Wetted Parts & Outer Piston, Aluminum Air Chamber, Center Block & Air Valve, Mild Steel Seat, PTFE O-Rings & Balls, FKM Traditional Diaphragm. 15-9993-99 ADS Repair Kit Available to order. A PSG Dover Brand Product.

$7,191.00

Wilden

15-13200

Wilden 15-13200 Pro-Flo SHIFT 3" (76mm) Bolted Metal Air Operated Double Diaphragm AODD Pump (PS1520), ATEX Compliant, MODEL: XPS1520/AZAAA/SSL/FS/FS. 76 mm (3") NPT Suction & Discharge. Aluminum Wetted Parts, Air Chamber, Center Block & Air Valve, Saniflex Seats, Full Stroke IPD Diaphragms & Balls. 15-9993-99 ADS Repair Kit, 15-9826-46-219 Wet End Kit, 71-8014 SD Dampener, 79-1000 ISD Dampener, 04-8340-99 FRL/FRC, 65-8115-99 Wil-Gard Available to order. A PSG Dover Brand Product.

$4,446.90

Wilden

15-13201

Wilden 15-13201 Pro-Flo SHIFT 3" (76mm) Bolted Metal Air Operated Double Diaphragm AODD Pump (PS1520), ATEX Compliant, MODEL: XPS1520/AZAAA/SSL/FS/FS/0014. 76 mm (3") BSPT Suction & Discharge. Aluminum Wetted Parts, Air Chamber, Center Block & Air Valve, Saniflex Seats, Full Stroke IPD Diaphragms & Balls. 15-9993-99 ADS Repair Kit, 15-9826-46-219 Wet End Kit, 71-8048 SD Dampener, 79-1002 ISD Dampener, 04-8340-99 FRL/FRC, 65-8115-99 Wil-Gard Available to order. A PSG Dover Brand Product.

$4,446.90

Wilden

15-13202

Wilden 15-13202 Pro-Flo SHIFT 3" (76mm) Bolted Metal Air Operated Double Diaphragm AODD Pump (PS1520), ATEX Compliant, MODEL: XPS1520/SZAAA/SSL/FS/FS. 76 mm (3") NPT Suction & Discharge. Stainless Steel Wetted Parts, Aluminum Air Chamber, Center Block & Air Valve, Saniflex Seats, Full Stroke IPD Diaphragms & Balls. 15-9993-99 ADS Repair Kit, 15-9824-46-219 Wet End Kit, 71-8024 SD Dampener, 79-1000 ISD Dampener, 04-8340-99 FRL/FRC, 65-8115-99 Wil-Gard Available to order. A PSG Dover Brand Product.

$11,161.80

Wilden

15-13203

Wilden 15-13203 Pro-Flo SHIFT 3" (76mm) Bolted Metal Air Operated Double Diaphragm AODD Pump (PS1520), ATEX Compliant, MODEL: XPS1520/SZAAA/SSL/FS/FS/0014. 76 mm (3") BSPT Suction & Discharge. Stainless Steel Wetted Parts, Aluminum Air Chamber, Center Block & Air Valve, Saniflex Seats, Full Stroke IPD Diaphragms & Balls. 15-9993-99 ADS Repair Kit, 15-9824-46-219 Wet End Kit, 71-8026 SD Dampener, 79-1002 ISD Dampener, 04-8340-99 FRL/FRC, 65-8115-99 Wil-Gard Available to order. A PSG Dover Brand Product.

$11,161.80

Wilden

15-13204

Wilden 15-13204 Pro-Flo SHIFT 3" (76mm) Bolted Metal Air Operated Double Diaphragm AODD Pump (PS1520), ATEX Compliant, MODEL: XPS1520/WZAAA/SSL/FS/FS. 76 mm (3") NPT Suction & Discharge. Ductile Iron Wetted Parts, Aluminum Air Chamber, Center Block & Air Valve, Saniflex Seats, Full Stroke IPD Diaphragms & Balls. 15-9993-99 ADS Repair Kit, 15-9824-46-219 Wet End Kit, 04-8340-99 FRL/FRC, 65-8115-99 Wil-Gard Available to order. A PSG Dover Brand Product.

$4,550.40

Wilden

15-13205

Wilden 15-13205 Pro-Flo SHIFT 3" (76mm) Bolted Metal Air Operated Double Diaphragm AODD Pump (PS1520), ATEX Compliant, MODEL: XPS1520/WZAAA/SSL/FS/FS/0014. 76 mm (3") BSPT Suction & Discharge. Ductile Iron Wetted Parts, Aluminum Air Chamber, Center Block & Air Valve, Saniflex Seats, Full Stroke IPD Diaphragms & Balls. 15-9993-99 ADS Repair Kit, 15-9824-46-219 Wet End Kit, 04-8340-99 FRL/FRC, 65-8115-99 Wil-Gard Available to order. A PSG Dover Brand Product.

$4,550.40

Wilden

15-13229

Wilden 15-13229 Pro-Flo SHIFT 3" (76mm) Bolted Metal Air Operated Double Diaphragm AODD Pump (XPS1530), ATEX Compliant, MODEL: XPS1530/SZAAA/SSL/TF/FS. 1,026 lpm (271 gpm) Max Flow, 76 mm (3") ANSI Suction & Discharge. Stainless Steel Wetted Parts, Aluminum Air Chamber, Center Block & Air Valve, Saniflex (Hytrel) Full Stroke IPD Diaphragms & Seats, PTFE Balls. A PSG Dover Brand Product.

$13,042.80

Wilden

15-13241

Wilden 15-13241 Pro-Flo SHIFT 3" (76mm) Bolted Metal Air Operated Double Diaphragm AODD Pump (XPS1530), ATEX Compliant, MODEL: XPS1530/SZSSS/WWL/WF/WF. 1,026 lpm (271 gpm) Max Flow, 76 mm (3") ANSI Suction & Discharge. Stainless Steel Wetted Parts, Air Chamber, Center Block & Air Valve, Wil-Flex (Santoprene) Seats, Full Stroke IPD Diaphragms & Balls. A PSG Dover Brand Product.

$17,312.40

Wilden

15-13257

Wilden 15-13257 Pro-Flo SHIFT 3" (76mm) Bolted Metal Air Operated Double Diaphragm AODD Pump (XPS1530), ATEX Compliant, MODEL: XPS1530/AZAAA/WWL/TF/STF. 1,026 lpm (271 gpm) Max Flow, 76 mm (3") ANSI Suction & Discharge. Aluminum Wetted Parts, Air Chambers, Center Block & Air Valve, Wil-Flex (Santoprene) Full Stroke IPD Diaphragms, PTFE Balls & O-Rings, Stainless Steel Seats. A PSG Dover Brand Product.

$5,692.50

Wilden

15-13260

Wilden 15-13260 Pro-Flo SHIFT 3" (76mm) Bolted Metal Air Operated Double Diaphragm AODD Pump (XPS1520), ATEX Compliant, MODEL: XPS1520/SSSSS/FWS/FW/STF. 1,026 lpm (271 gpm) Max Flow, 76 mm (3") NPT Suction & Discharge. Stainless Steel Wetted Parts, Outer Pistons, Air Chamber, Center Block, Air Valve & Seats, Wil-Flex (Santoprene) Sanitary Diaphragms, Sanitary Wil-Flex (Santoprene) Balls, PTFE O-Rings. A PSG Dover Brand Product.

$16,947.00

Wilden

15-13262

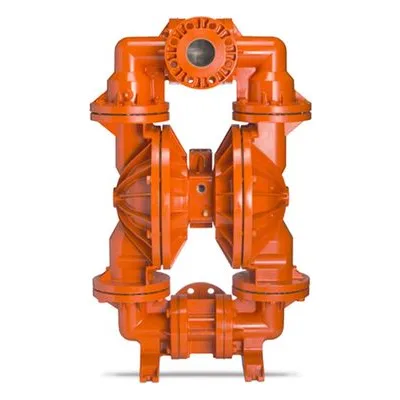

Wilden 15-13262 Pro-Flo SHIFT 3" (76mm) Bolted Metal Air Operated Double Diaphragm AODD Pump (PS1530), ATEX Compliant, MODEL: XPS1530/HHSSS/VTS/VT/HTF/0320. 1,026 lpm (271 gpm) Max Flow, 76 mm (3") ANSI Flanged Suction & Discharge. Alloy C Wetted Parts, Outer Piston & Seats, Stainless Steel Air Chamber, Center Block, Air Valve, PTFE O-Rings, FKM Traditional Diaphragms & Balls. A PSG Dover Brand Product.

$53,955.90

Wilden

15-13264

Wilden 15-13264 Pro-Flo SHIFT 3" (76mm) Bolted Metal Air Operated Double Diaphragm AODD Pump (PS1530), ATEX Compliant, MODEL: XPS1530/HHSSS/TWS/TF/HTF. 992 lpm (262 gpm) Max Flow, 76 mm (3") ANSI Flanged Suction & Discharge. Alloy C Wetted Parts, Outer Piston & Seats, Stainless Steel Air Chamber, Center Block, Air Valve, PTFE O-Rings & Balls, PTFE w/Wil-Flex Backup Full Stroke IPD Diaphragm. A PSG Dover Brand Product.

$49,185.00

Wilden

15-13265

Wilden 15-13265 Pro-Flo SHIFT 3" (76mm) Bolted Metal Air Operated Double Diaphragm AODD Pump (PS1530), ATEX Compliant, MODEL: XPS1530/HHAAA/TWS/TF/HTF. 992 lpm (262 gpm) Max Flow, 76 mm (3") ANSI Flanged Suction & Discharge. Alloy C Wetted Parts, Outer Piston & Seats, Aluminum Air Chamber, Center Block & Air Valve, PTFE O-Rings & Balls, PTFE w/Wil-Flex Backup Full Stroke IPD Diaphragm. A PSG Dover Brand Product.

$44,414.10

Wilden

15-13267

Wilden 15-13267 Pro-Flo SHIFT 3" (76mm) Bolted Metal Air Operated Double Diaphragm AODD Pump (PS1530), ATEX Compliant, MODEL: XPS1530/HHSSS/VTS/VT/HTF. 1,026 lpm (271 gpm) Max Flow, 76 mm (3") ANSI Flanged Suction & Discharge. Alloy C Wetted Parts, Outer Piston & Seats, Stainless Steel Air Chamber, Center Block, Air Valve, PTFE O-Rings, FKM Traditional Diaphragms & Balls. A PSG Dover Brand Product.

$53,955.90

Wilden

15-13269

Wilden 15-13269 Pro-Flo SHIFT 3" (76mm) Bolted Metal Air Operated Double Diaphragm AODD Pump (XPS1530), ATEX Compliant, MODEL: XPS1530/SZAAA/WWL/TF/STF/0504. 1,026 lpm (271 gpm) Max Flow, 76 mm (3") DIN Suction & Discharge. Stainless Steel Wetted Parts & Seats, Aluminum Air Chamber, Center Block & Air Valve, PTFE O-Rings & Balls, Wil-Flex (Santoprene) Full Stroke IPD Diaphragms. A PSG Dover Brand Product.

$13,549.50
