02-12092

Name: 02-12092 PumpCatalog Wilden
Brand: Wilden
SKU: 02-12092
Price: 3874.50 USD
Availability: InStock

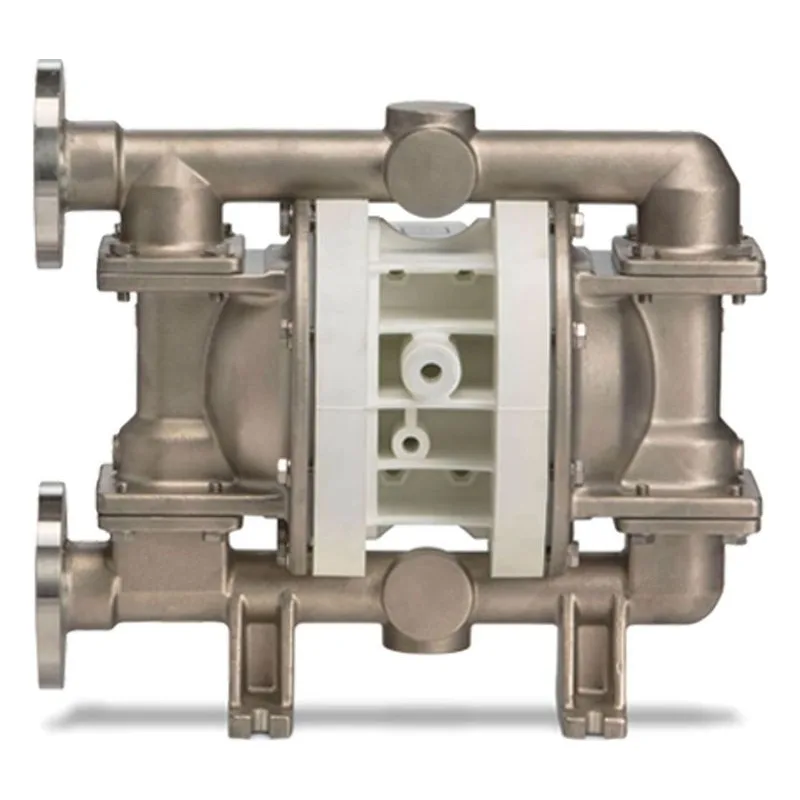

Wilden 02-12092 Accu-Flo Electronic Control 1" Bolted Metal Air Operated Double Diaphragm Pump (A230P), MODEL: A230P/SSPPP/TSU/TF/STF/0155. 25 mm (1") ANSI Flanged Suction & Discharge. Stainless Steel Wetted Parts, Outer Piston & Seats, Polypropylene Air Chamber, Center Block & Air Valve, PTFE O-Rings & Balls, PTFE w/Saniflex Backup Reduced-Stroke Diaphragms. 02-9814-55-203 Wet End Kit, 67-001 SD Dampener, 67-001 ISD Dampener, 04-8340-99 FRL/FRC, 65-8115-99 Wil-Gard Available to order. A PSG Dover Brand Product.

Brand: Wilden

Series:

Accu-Flo Electronic Control Pumps

Item: 02-12092Model #: A230P/SSPPP/TSU/TF/STF/0155

List: ~~$4,305.00~~

$3,874.50

Ships within 1 business day (in-stock items). Delivery typically 1-5 business days.

Returns accepted within 30 days. View Returns Policy

Estimate Shipping

Zip Code

Overview

Literature & Manuals

Find the manuals, product sheets and all the information you need

Type	Title	Link
Brochures	Wilden Accu-Flo Electronic Control Pumps	View
Installation & Operation Manuals	Wilden Pro-Flo 1" Bolted Metal Pump EOM Manual	View

Series Information

Accu-Flo Electronic Control Pumps Information

Product Type
Diaphragm Pumps, Self Priming
Features & Benefits
Accu-Flo™ Series Electronic Control Pumps How It Works The Accu-Flo Air Distribution System (ADS) employs a two-position, four-way solenoid valve that has a single operator and spring return. The valve is internally air-piloted for longer coil and operator life. • Air pressure is utilized to fill air chambers and displace the diaphragms, but electrical impulses dictate the stroke rate. • When the solenoid is unpowered, the air valve piston is held by a spring to the top of the air valve body. • In this position, the air supply is directed to the right side of the pump while the left air chamber is exhausted. • When the solenoid is powered by electricity, air pressure is routed to the top of the air valve piston, which overcomes the tension of the spring and forces the piston down. • In this position, the air valve piston directs the air supply to the left side of the pump and exhausts the right side. • By alternately applying and removing electrical power, the Accu-Flo Series pump reciprocates back and forth in a fashion similar to standard air-operated pumps. ACCU-FLO AIR DISTRIBUTION SYSTEM Uses a two-position, four-way solenoid valve that allows the pump to alternate between air and electricity. ACCU-FLO™ Precisely controls the stroke rate of the pump and more accurately controls the ﬂ ow rate for dosing applications. BORE SEAL The bore-seal design relies on a fastener force that is perpendicular to the seal to optimize the sealing capabilities which eliminates leaks that result from torque decay. DETACHABLE MOUNTING FOOT Featuring the industry’s ﬁ rst detachable mounting foot, the Velocity Series offers adaptable mounting capabilities. Additionally, the Velocity footprint is interchangeable with previous Wilden designs (P.025, P25 and P1, P100). ADAPTABLE MOUNTING CAPABILITIES The Velocity Series can easily be reorientated into avertical or horizontal position with multiple inlet and discharge port options. With this feature, it has been designed with skids and systems in mind to ﬁ t perfectly into restricted spaces.

Related Products and Parts

Popular Series

Series associated to this product and brand

02-12092

Brand: Wilden

Series:

Accu-Flo Electronic Control Pumps

Item: 02-12092Model #: A230P/SSPPP/TSU/TF/STF/0155

Type

Title

Link

Brochures

Wilden Accu-Flo Electronic Control Pumps

View

Installation & Operation Manuals

Wilden Pro-Flo 1" Bolted Metal Pump EOM Manual

View

Product Type

Diaphragm Pumps, Self Priming

Features & Benefits

Accu-Flo™ Series Electronic Control Pumps

How It Works
The Accu-Flo Air Distribution System (ADS) employs a two-position, four-way solenoid valve that has a single operator and spring return. The valve is internally air-piloted for longer coil and operator life.

• Air pressure is utilized to fill air chambers and displace the diaphragms, but electrical impulses dictate the stroke rate.
• When the solenoid is unpowered, the air valve piston is held by a spring to the top of the air valve body.
• In this position, the air supply is directed to the right side of the pump while the left air chamber is exhausted.
• When the solenoid is powered by electricity, air pressure is routed to the top of the air valve piston, which overcomes the tension of the spring and forces the piston down.
• In this position, the air valve piston directs the air supply to the left side of the pump and exhausts the right side.
• By alternately applying and removing electrical power, the Accu-Flo Series pump reciprocates back and forth in a fashion similar to standard air-operated pumps.

ACCU-FLO AIR DISTRIBUTION SYSTEM
Uses a two-position, four-way solenoid valve that allows the pump to alternate between air and electricity.

ACCU-FLO™
Precisely controls the stroke rate of the pump and more accurately controls the ﬂ ow rate for dosing applications.

BORE SEAL
The bore-seal design relies on a fastener force that is perpendicular to the seal to optimize the sealing capabilities which eliminates leaks that result from torque decay.

DETACHABLE MOUNTING FOOT
Featuring the industry’s ﬁ rst detachable mounting foot, the Velocity Series offers adaptable mounting capabilities. Additionally, the Velocity footprint is interchangeable with previous Wilden designs (P.025, P25 and P1, P100).

ADAPTABLE MOUNTING CAPABILITIES
The Velocity Series can easily be reorientated into avertical or horizontal position with multiple inlet and discharge port options. With this feature, it has been designed with skids and systems in mind to ﬁ t perfectly into restricted spaces.
