15-11396

Diaphragm Pumps, Self Priming, Submersible

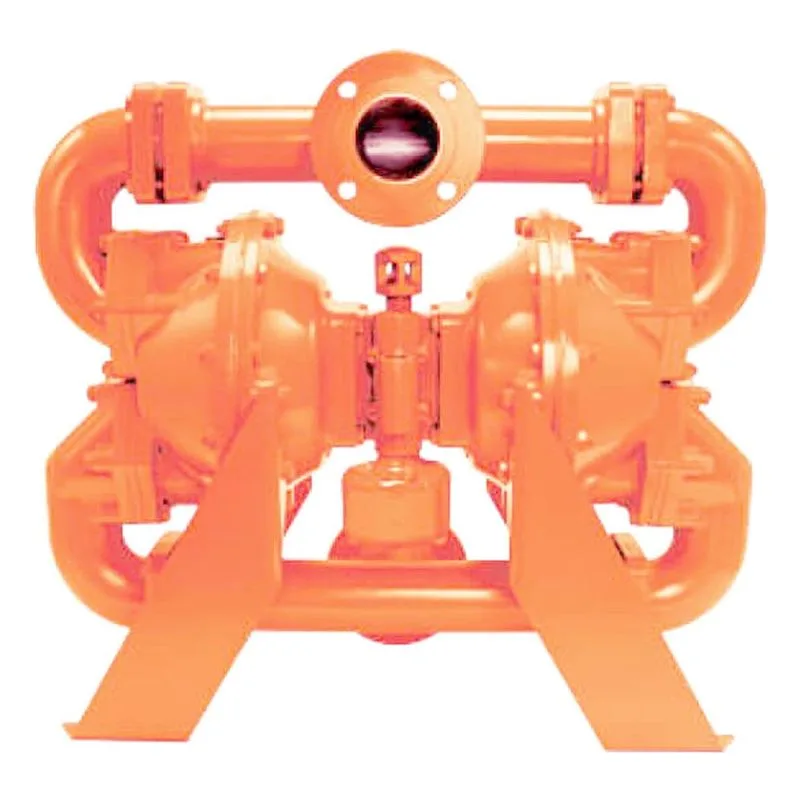

Wilden Brahma Series
The Brahma Series flap-valve pump from Wilden is TOUGH! Tougher than your hardest applications. With its rugged design, enhanced durability and outstanding performance, the Brahma Series pumps excel in extreme environments where other pump types fail. The Brahma Series pumps free up valuable maintenance man-hours with its reliable design. Just start it up and the Brahma Series pumps will get the job done!

SUBMERSIBLE - Wilden AODD pumps are able to function in applications that require the pump to be completely submerged.
ROTATABLE INLET AND DISCHARGE - Rotatable inlet and discharge to help meet application requirements – 3 positions at 90° – available in threaded or flanged connections.
FLAP VALVES - AODD pump designed with flap valves to help handle large solids up to 76 mm (3"). Durable Wil-Flex® TPE material option for extended life.
LARGE INTERNAL CLEARANCE - Wetted path with large internal clearance to further help handle compressible solids up to 76 mm (3").
TOP INLET, BOTTOM DISCHARGE - Brahma Series is designed for top inlet and bottom discharge, pushing solids directly out, protecting the pump when solids settle. Additionally, Brahma Series pumps can handle suction lifts up to 7.7 m (25.2') Dry and 9.3 m (30.6') Wet.
CHEM-FUSE IPD: WIL-FLEX® OPTION
Unlike conventional diaphragms, which fail to meet the demands of critical pumping applications, the innovative Chem-Fuse IPD features a simple one-piece design that offers greater durability, increased flex life and easier cleanability. Wilden Chem-Fuse diaphragms made of durable Wil-Flex® benefit from less downtime, more uptime and the peace of mind of long-lasting performance.

The Brahma Series utilizes a unique top-inlet, bottom-discharge orientation and flap valves to allow the passage of large solids while avoiding damage from product entrapment and the settling of solids during intermittent-duty applications. It features bolted construction for superior containment and the ability to pass certain solids up to 76 mm (3"), depending on pump size. Brahma Series pumps are available with Pro-Flo® SHIFT and Turbo-Flo™ air distribution systems (ADS). These pumps are available with the Chem-Fuse™ Integral Piston Diaphragm (IPD) made from durable Wil-Flex® for extended diaphragm life.
