Home Manufacturers WildenSaniflo FDA Pumps (Hygienic & Sanitary)

Saniflo FDA Pumps (Hygienic & Sanitary)

About Saniflo FDA Pumps (Hygienic & Sanitary)

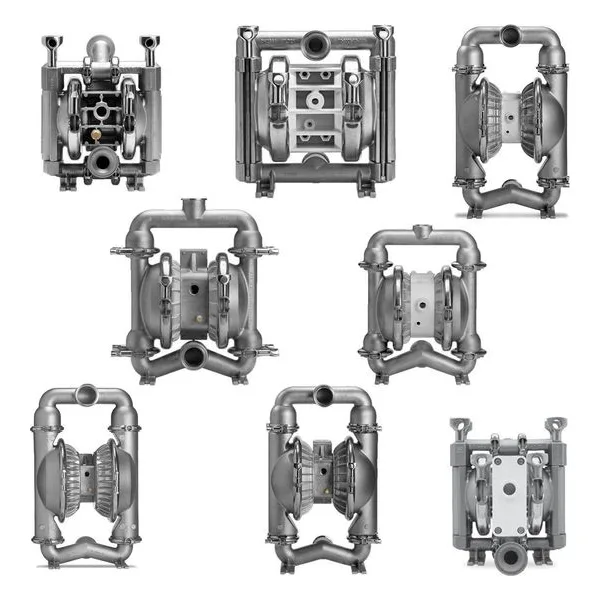

Wilden® Saniflo™ FDA Series AODD Pumps for Hygienic and Sanitary Applications

The Saniflo™ FDA Series pumps are designed for standard food applications that don’t require the Hygienic™ Series (HS) design or clean-in-place (CIP) capability. They are well suited for sanitary applications moving high-acid, high-sugar and high-fat media. With simple installation and robust design, FDA pumps comply with FDA, CE, EC 1935/2004 and ATEX requirements.

Features
• Tri-clamp connections with wingnut clamped design
• Quick breakdown/reassembly for cleaning
• Greater flow - more gallons pumped per SCFM
• Two air distribution system options:
• Pro-Flo® SHIFT: multiple material options, high efficiency, high flow
• Pro-Flo: durable, economical, one material option

Applications
• Food and Beverage
• Prepared Food and Sauces
• Poultry and Dairy
• Sweeteners and Acids
• Pharmaceutical and Cosmetics

FDA Wilden Pump Series
13 mm (1/2") Pro-Flo® SHIFT Saniflo™ FDA Series Clamped Metal AODD Pump
13 mm (1/2") Pro-Flo® Saniflo™ FDA Series Clamped Metal AODD Pump
25 mm (1") Pro-Flo®Saniflo™ FDA Series Clamped Metal AODD Pump
38 mm (1-1/2") Pro-Flo® SHIFT Saniflo™ FDA Series Clamped Metal AODD Pump
38 mm (1-1/2") Pro-Flo® Saniflo™ FDA Series Clamped Metal AODD Pump
51 mm (2") Pro-Flo® SHIFT Saniflo™ FDA Series Clamped Metal AODD Pump
51 mm (2") Pro-Flo® Saniflo™ FDA Series Clamped Metal AODD Pump
76 mm (3") Pro-Flo®SHIFT Saniflo™ FDA Series Clamped Metal AODD Pump

Filters

No filters available

251 products

Wilden

01-10068

Wilden 01-10068 Saniflo FDA 1" Clamped Metal Air Operated Double Diaphragm Pump (P1), MODEL: P1/SSPPP/FSS/TF/SFS/0070. 58.3 lpm (15.4 gpm) Max Flow, 25 mm (1") Tri-Clamp Suction & Discharge. Stainless Steel Wetted Parts, Outer Piston & Seats, Polypropylene Air Chamber, Center Block & Air Valve, Saniflex O-Rings & Sanitary Diaphragm, PTFE Balls. 01-9985-20 ADS Repair Kit Available to order. A PSG Dover Brand Product.

$2,888.10

Wilden

01-10435

Wilden 01-10435 Saniflo FDA 1/2" Clamped Metal Air Operated Double Diaphragm Pump (A1P), MODEL: A1P/SSPPP/FSS/FS/SFS/0128. 39 lpm (10.3 gpm) Max Flow, 25 mm (1") Tri-Clamp Suction & Discharge. Stainless Steel Wetted Parts, Outer Piston & Seats, Polypropylene Air Chamber, Center Block & Air Valve, Saniflex O-Rings, Sanitary Diaphragm & Balls. A PSG Dover Brand Product.

$3,273.30

Wilden

01-10445

Wilden 01-10445 Saniflo FDA 1" Clamped Metal Air Operated Double Diaphragm Pump (P1), MODEL: P1/SSPPP/TNU/TF/STF/0080. 54.4 lpm (14.4 gpm) Max Flow, 25 mm (1") Tri-Clamp Suction & Discharge. Stainless Steel Wetted Parts, Outer Piston & Seats, Polypropylene Air Chamber, Center Block & Air Valve, PTFE O-Rings & Balls, PTFE w/Neoprene Backup Reduced-Stroke Diaphragms. 01-9985-20 ADS Repair Kit, 01-9804-55 Wet End Kit Available to order. A PSG Dover Brand Product.

$2,715.30

Wilden

01-10779

Wilden 01-10779 Saniflo FDA 1" Clamped Metal Air Operated Double Diaphragm Pump (P1), MODEL: P1/SSPPP/TVU/TF/STF/0079. 54.4 lpm (14.4 gpm) Max Flow, 25 mm (1") Tri-Clamp Suction & Discharge. Stainless Steel Wetted Parts, Outer Piston & Seats, Polypropylene Air Chamber, Center Block & Air Valve, PTFE O-Rings & Balls, PTFE w/FKM Backup Reduced-Stroke Diaphragms. 01-9985-20 ADS Repair Kit, 01-9804-55-210 Wet End Kit Available to order. A PSG Dover Brand Product.

$3,392.10

Wilden

01-10897

Wilden 01-10897 Saniflo FDA 1" Clamped Metal Air Operated Double Diaphragm Pump (P1), MODEL: P1/SSPPP/TEU/TF/STF/0070. 54.4 lpm (14.4 gpm) Max Flow, 25 mm (1") Tri-Clamp Suction & Discharge. Stainless Steel Wetted Parts, Outer Piston & Seats, Polypropylene Air Chamber, Center Block & Air Valve, PTFE O-Rings & Balls, PTFE (w/EPDM Backup Ring) Reduced-Stroke Diaphragm. 01-9985-20 ADS Repair Kit, 01-9804-55-204 Wet End Kit, 72-7081 SD Dampener, 00-8340-99 FRL/FRC, 65-8115-99 Wil-Gard Available to order. A PSG Dover Brand Product.

$3,105.00

Wilden

01-10909

Wilden 01-10909 Saniflo FDA 1" Clamped Metal Air Operated Double Diaphragm Pump (P1), MODEL: P1/SSLLL/TSU/TF/STF/0070. 54.4 lpm (14.4 gpm) Max Flow, 25 mm (1") Tri-Clamp Suction & Discharge. Stainless Steel Wetted Parts, Outer Piston & Seals, Acetal Air Chamber, Center Block & Air Valve, PTFE O-Rings & Balls, PTFE w/Saniflex Backup Reduced-Stroke Diaphragms. 01-9985-20 ADS Repair Kit, 01-9804-55-203 Wet End Kit Available to order. A PSG Dover Brand Product.

$3,104.10

Wilden

01-10966

Wilden 01-10966 Saniflo FDA 1" Clamped Metal Air Operated Double Diaphragm Pump (P1), MODEL: P1/SSPPP/TSU/TF/STF/0070. 54.4 lpm (14.4 gpm) Max Flow, 25 mm (1") Tri-Clamp Suction & Discharge. Stainless Steel Wetted Parts, Outer Piston & Seats, Polypropylene Air Chamber, Center Block & Air Valve, PTFE O-Rings & Balls, PTFE w/Saniflex Backup Reduced-Stroke Diaphragms. 01-9985-20 ADS Repair Kit, 01-9804-55-203 Wet End Kit, 72-7081 SD Dampener, 00-8340-99 FRL/FRC, 65-8115-99 Wil-Gard Available to order. A PSG Dover Brand Product.

$3,079.80

Wilden

01-10991

Wilden 01-10991 Saniflo FDA 1" Clamped Metal Air Operated Double Diaphragm Pump (XP1), ATEX Compliant, MODEL: XP1/SSJJJ/FSS/FS/SFS/0070. 58.3 lpm (15.4 gpm) Max Flow, 25 mm (1") Tri-Clamp Suction & Discharge. Stainless Steel Wetted Parts, Outer Piston & Seats, Conductive Polypropylene Air Chamber, Center Block & Air Valve, Saniflex O-Rings, Sanitary Diaphragm & Balls. 01-9985-20 ADS Repair Kit, 01-9804-56 Wet End Kit Available to order. A PSG Dover Brand Product.

$3,206.70

Wilden

01-11098

Wilden 01-11098 Saniflo FDA 1" Clamped Metal Air Operated Double Diaphragm Pump (P1), MODEL: P1/SZPPP/TEL/TF/STF/0070E. 54.4 lpm (14.4 gpm) Max Flow, 25 mm (1") Tri-Clamp Suction & Discharge. Stainless Steel Wetted Parts & Seats, Polypropylene Air Chamber, Center Block & Air Valve, PTFE O-Rings & Balls, PTFE (w/EPDM Backup Ring) Reduced-Stroke IPD Diaphragms. Contact Factory ADS Repair Kit, Contact Factory Wet End Kit Available to order. A PSG Dover Brand Product.

$4,015.80

Wilden

01-11099

Wilden 01-11099 Saniflo FDA 1" Clamped Metal Air Operated Double Diaphragm Pump (P1), MODEL: P1/SSPPP/TSU/TF/STF/0070E. 54.4 lpm (14.4 gpm) Max Flow, 25 mm (1") Tri-Clamp Suction & Discharge. Stainless Steel Wetted Parts, Outer Piston & Seats, Polypropylene Air Chamber, Center Block & Air Valve, PTFE O-Rings & Balls, PTFE w/Saniflex Backup Reduced-Stroke Diaphragms. Contact Factory ADS Repair Kit, Contact Factory Wet End Kit Available to order. A PSG Dover Brand Product.

$3,528.00

Wilden

01-11100

Wilden 01-11100 Saniflo FDA 1" Clamped Metal Air Operated Double Diaphragm Pump (P1), MODEL: P1/SSPPP/TEU/TF/STF/0070E. 54.4 lpm (14.4 gpm) Max Flow, 25 mm (1") Tri-Clamp Suction & Discharge. Stainless Steel Wetted Parts, Outer Piston & Seats, Polypropylene Air Chamber, Center Block & Air Valve, PTFE O-Rings & Balls, PTFE (w/EPDM Backup Ring) Reduced-Stroke Diaphragm. Contact Factory ADS Repair Kit, Contact Factory Wet End Kit Available to order. A PSG Dover Brand Product.

$3,553.20

Wilden

01-11101

Wilden 01-11101 Saniflo FDA 1" Clamped Metal Air Operated Double Diaphragm Pump (P1), MODEL: P1/SSPPP/FSS/FS/SFS/0070E. 58.3 lpm (15.4 gpm) Max Flow, 25 mm (1") Tri-Clamp Suction & Discharge. Stainless Steel Wetted Parts, Outer Piston & Seats, Polypropylene Air Chamber, Center Block & Air Valve, Saniflex O-Rings, Sanitary Diaphragm & Balls. Contact Factory ADS Repair Kit, Contact Factory Wet End Kit Available to order. A PSG Dover Brand Product.

$3,319.20

Wilden

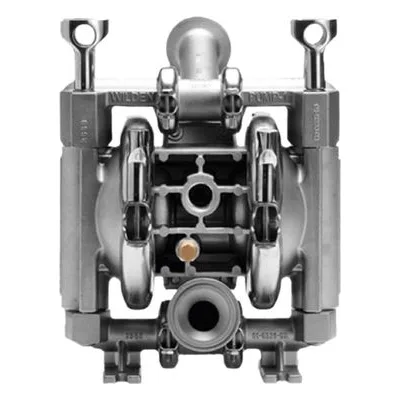

01-11255

Wilden 01-11255 Saniflo FDA 1" Clamped Metal Air Operated Double Diaphragm Pump (XPS1), ATEX Compliant, MODEL: XPS1/SSAAA/TEU/TF/STF/0070. 59.8 lpm (15.8 gpm) Max Flow, 25 mm (1") Tri-Clamp Suction & Discharge. Stainless Steel Wetted Parts, Outer Piston & Seats, Aluminum Air Chamber, Center Block & Air Valve, PTFE O-Rings & Balls, PTFE (w/EPDM Backup Ring) Reduced-Stroke Diaphragm. 01-9993-99 ADS Repair Kit, 01-9804-55-204 Wet End Kit, 66-002 SD Dampener, 66-002 ISD Dampener, 04-8340-99 FRL/FRC, 65-8115-99 Wil-Gard Available to order. A PSG Dover Brand Product.

$3,253.50

Wilden

01-11256

Wilden 01-11256 Saniflo FDA 1" Clamped Metal Air Operated Double Diaphragm Pump (XPS1), ATEX Compliant, MODEL: XPS1/SSAAA/TSU/TF/STF/0070. 59.8 lpm (15.8 gpm) Max Flow, 25 mm (1") Tri-Clamp Suction & Discharge. Stainless Steel Wetted Parts, Outer Piston & Seats, Aluminum Air Chamber, Center Block & Air Valve, PTFE O-Rings & Balls, PTFE w/Saniflex Backup Reduced-Stroke Diaphragms. 01-9993-99 ADS Repair Kit, 01-9804-55-203 Wet End Kit, 72-7081 SD Dampener, 01-8340-99 FRL/FRC, 65-8115-99 Wil-Gard Available to order. A PSG Dover Brand Product.

$3,229.20

Wilden

01-11257

Wilden 01-11257 Saniflo FDA 1" Clamped Metal Air Operated Double Diaphragm Pump (XPS1), ATEX Compliant, MODEL: XPS1/SSAAA/FSS/FS/SFS/0070. 60.2 lpm (15.9 gpm) Max Flow, 25 mm (1") Tri-Clamp Suction & Discharge. Stainless Steel Wetted Parts, Outer Piston & Seats, Aluminum Air Chamber, Center Block & Air Valve, Saniflex O-Rings, Sanitary Diaphragm & Balls. 01-9993-99 ADS Repair Kit, 01-9804-56 Wet End Kit, 72-7081 SD Dampener, 01-8340-99 FRL/FRC, 65-8115-99 Wil-Gard Available to order. A PSG Dover Brand Product.

$3,019.50

Wilden

01-11258

Wilden 01-11258 Saniflo FDA 1" Clamped Metal Air Operated Double Diaphragm Pump (XPS1), ATEX Compliant, MODEL: XPS1/SZAAA/TEL/TF/STF/0070. 59.8 lpm (15.8 gpm) Max Flow, 25 mm (1") Tri-Clamp Suction & Discharge. Stainless Steel Wetted Parts & Seats, Aluminum Air Chamber, Center Block & Air Valve, PTFE O-Rings & Balls, PTFE (w/EPDM Backup Ring) Reduced-Stroke IPD Diaphragms. 01-9993-99 ADS Repair Kit, 72-7081 SD Dampener, 01-8340-99 FRL/FRC, 65-8115-99 Wil-Gard Available to order. A PSG Dover Brand Product.

$3,716.10

Wilden

01-11260

Wilden 01-11260 Saniflo FDA 1" Clamped Metal Air Operated Double Diaphragm Pump (XP1), ATEX Compliant, MODEL: XP1/SSJJJ/TSU/TF/STF/0070. 54.4 lpm (14.4 gpm) Max Flow, 25 mm (1") Tri-Clamp Suction & Discharge. Stainless Steel Wetted Parts, Outer Piston & Seats, Conductive Polypropylene Air Chamber, Center Block & Air Valve, PTFE O-Rings & Balls, PTFE w/Saniflex Backup Reduced-Stroke Diaphragms. 01-9985-20 ADS Repair Kit, 01-9804-55-203 Wet End Kit Available to order. A PSG Dover Brand Product.

$3,416.40

Wilden

01-11261

Wilden 01-11261 Saniflo FDA 1" Clamped Metal Air Operated Double Diaphragm Pump (P1), MODEL: P1/SSPPP/TSU/TF/STF/0079. 54.4 lpm (14.4 gpm) Max Flow, 25 mm (1") Tri-Clamp Suction & Discharge. Stainless Steel Wetted Parts, Outer Piston & Seats, Polypropylene Air Chamber, Center Block & Air Valve, PTFE O-Rings & Balls, PTFE w/Saniflex Backup Reduced-Stroke Diaphragms. 01-9985-20 ADS Repair Kit, 01-9804-55-203 Wet End Kit Available to order. A PSG Dover Brand Product.

$3,021.30

Wilden

01-11288

Wilden 01-11288 Saniflo FDA 1" Clamped Metal Air Operated Double Diaphragm Pump (XPS1), ATEX Compliant, MODEL: XPS1/SSAAA/FSS/FS/SFS/0070E. 60.2 lpm (15.9 gpm) Max Flow, 25 mm (1") Tri-Clamp Suction & Discharge. Stainless Steel Wetted Parts, Outer Piston & Seats, Aluminum Air Chamber, Center Block & Air Valve, Saniflex O-Rings, Sanitary Diaphragm & Balls. Contact Factory ADS Repair Kit, Contact Factory Wet End Kit Available to order. A PSG Dover Brand Product.

$3,467.70

Wilden

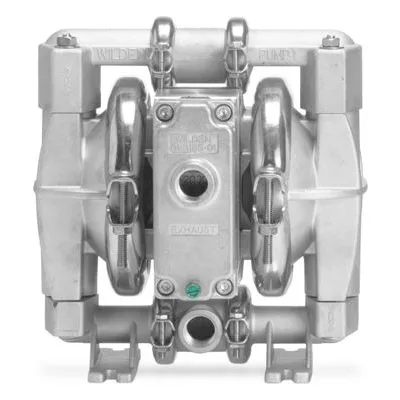

01-11363

Wilden 01-11363 Saniflo FDA 1" Clamped Metal Air Operated Double Diaphragm Pump (XPS1), ATEX Compliant, MODEL: XPS1/SSAAA/VTS/VT/STF/0080. 60.2 lpm (15.9 gpm) Max Flow, 25 mm (1") Tri-Clamp Suction & Discharge. Stainless Steel Wetted Parts, Outer Piston & Seats, Aluminum Air Chamber, Center Block & Air Valve, PTFE O-Rings, FKM Traditional Diaphragms & Balls. 01-9993-99 ADS Repair Kit, 01-9804-53 Wet End Kit Available to order. A PSG Dover Brand Product.

$2,871.90

Wilden

01-11385

Wilden 01-11385 Saniflo FDA 1" Clamped Metal Air Operated Double Diaphragm Pump (P1), MODEL: P1/SSPPP/TNU/TF/STF/0079. 54.4 lpm (14.4 gpm) Max Flow, 25 mm (1") Tri-Clamp Suction & Discharge. Stainless Steel Wetted Parts, Outer Piston & Seats, Polypropylene Air Chamber, Center Block & Air Valve, PTFE O-Rings & Balls, PTFE w/Neoprene Backup Reduced-Stroke Diaphragms. 01-9985-20 ADS Repair Kit, 01-9804-55 Wet End Kit Available to order. A PSG Dover Brand Product.

$3,021.30

Wilden

01-2674

Wilden 01-2674 Saniflo FDA 1" Clamped Metal Air Operated Double Diaphragm Pump (P1), MODEL: P1/SSPPP/FSS/FS/SFS/0070. 58.3 lpm (15.4 gpm) Max Flow, 25 mm (1") Tri-Clamp Suction & Discharge. Stainless Steel Wetted Parts, Outer Piston & Seats, Polypropylene Air Chamber, Center Block & Air Valve, Saniflex O-Rings, Sanitary Diaphragm & Balls. 01-9985-20 ADS Repair Kit, 01-9804-56 Wet End Kit, 72-7081 SD Dampener, 00-8340-99 FRL/FRC, 65-8115-99 Wil-Gard Available to order. A PSG Dover Brand Product.

$2,871.00

Wilden

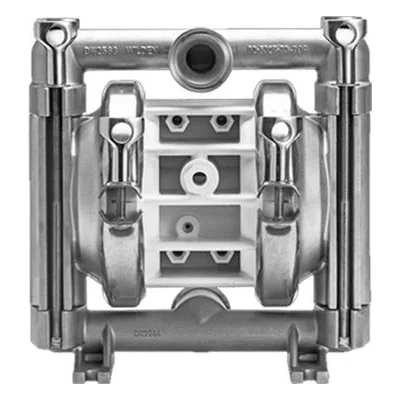

02-12464

Wilden 02-12464 Saniflo FDA 1-1/2" Clamped Metal Air Operated Double Diaphragm Pump (P2), MODEL: P2/SSPPP/TSU/TF/STF/2070. 155 lpm (41 gpm) Max Flow, 38 mm (1-1/2") Tri-Clamp Suction & Discharge. Stainless Steel Wetted Parts, Outer Piston & Seats, Polypropylene Air Chamber, Center Block & Air Valve, PTFE O-Rings & Balls, PTFE w/Saniflex Backup Reduced-Stroke Diaphragms. 02-9985-20 ADS Repair Kit, 02-9804-55-203 Wet End Kit, 70-7405 SD Dampener, 00-8340-99 FRL/FRC, 65-8115-99 Wil-Gard Available to order. A PSG Dover Brand Product.

$3,800.70

Wilden

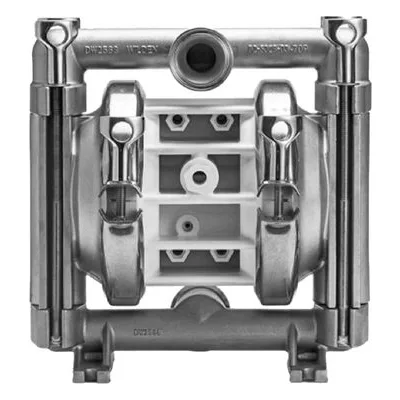

02-12465

Wilden 02-12465 Saniflo FDA 1-1/2" Clamped Metal Air Operated Double Diaphragm Pump (P2), MODEL: P2/SSPPP/TWS/TF/STF/2070. 167 lpm (44.1 gpm) Max Flow, 38 mm (1-1/2") Tri-Clamp Suction & Discharge. Stainless Steel Wetted Parts, Outer Piston & Seats, Polypropylene Air Chamber, Center Block & Air Valve, PTFE O-Rings & Balls, PTFE w/Wil-Flex Backup Full Stroke IPD Diaphragm. 02-9985-20 ADS Repair Kit, 02-9804-55-201 Wet End Kit, 70-7405 SD Dampener, 00-8340-99 FRL/FRC, 65-8115-99 Wil-Gard Available to order. A PSG Dover Brand Product.

$3,797.10

Popular Series

Series associated to this product and brand

Shop PumpCatalog with Confidence

Every order is secured with SSL encryption and trusted payment processing. Your information is always safe.

Wilden® Saniflo™ FDA Series AODD Pumps for Hygienic and Sanitary Applications

Applications
• Food and Beverage
• Prepared Food and Sauces
• Poultry and Dairy
• Sweeteners and Acids
• Pharmaceutical and Cosmetics
