15-12902

Name: 15-12902 PumpCatalog Wilden
Brand: Wilden
SKU: 15-12902
Price: 3816.90 USD
Availability: InStock

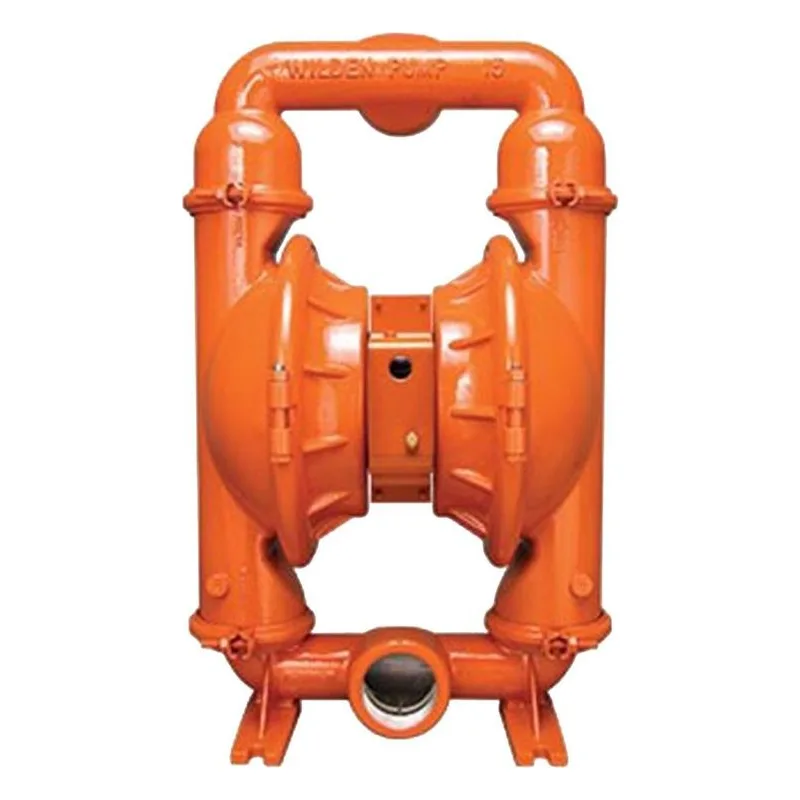

Wilden 15-12902 Stallion Series 3" Clamped Metal Air Operated Double Diaphragm Mining Pump (PS15), MODEL: PS15/AAAAR/ZWS/WF/NE/0050. 764 lpm (202 gpm) Max Flow, 76 mm (3") NPT Suction & Discharge. Aluminum Wetted Parts, Outer Piston, Air Chamber & Center Block, Anodized-Aluminum Air Valve, Neoprene Seat, Wil-Flex EZ-Install Diaphragms & Balls. 15-9993-11-320 ADS Repair Kit, 71-8019 SD Dampener, 79-1000 ISD Dampener, 04-8340-99 FRL/FRC, 65-8115-99 Wil-Gard Available to order. A PSG Dover Brand Product.

Brand: Wilden

Series:

Stallion Mining Pumps

Item: 15-12902Model #: PS15/AAAAR/ZWS/WF/NE/0050

List: ~~$4,241.00~~

$3,816.90

Ships within 1 business day (in-stock items). Delivery typically 1-5 business days.

Returns accepted within 30 days. View Returns Policy

Estimate Shipping

Zip Code

Overview

Literature & Manuals

Find the manuals, product sheets and all the information you need

Type	Title	Link
Brochures	Wilden Stallion Mining Pumps	View
Installation & Operation Manuals	Wilden Stallion Series 1-1/2" Clamped Metal Mining Pump EOM Manual	View

Series Information

Stallion Mining Pumps Information

Product Type
Diaphragm Pumps, Self Priming, Submersible
Features & Benefits
Wilden Stallion Series - PS4, PS8, PS15, T4, T8, T15 You just can’t break this Stallion! The pumps are available in three models - PS4 (38 mm/1-1/2"), PS8 (51 mm/2") and PS15 (76 mm/3") - in either aluminum or ductile-iron construction with a choice of Pro-Flo SHIFT or Turbo-Flo™ ADS. All models are submersible, self-priming, shear-sensitive, dry-run capable, anti-freezing and have increased on/off reliability. They can handle pressures up to 125 psi (8.6 bar) with ﬂow rates, depending on the model, ranging from 307 to 764 lpm (81-202 gpm). HANDLES FOR MOBILITY - Pump designed with built-in handles for applications that require the pump to be mobile. CHECK VALVE EXHAUST FOR SUBMERSION - Air Distribution System equipped with a check valve exhaust to prevent water from back ﬂ owing into the pump during submersion. SCREENED BASE - Stallion Series Pumps are designed with a screened base at the liquid inlet. The screened base allows the pump to operate in submersible applications without requiring ﬂ uid inlet piping. Additionally, the screened base prevents immense debris from entering and damaging the pump during operation. SUBMERSIBLE - Wilden AODD pumps are able to function in applications that require the pump to be completely submerged within the ﬂuid application.
General Description
The Stallion pumps feature clamped construction and offer a series of unique design features that allow them to transfer ﬂ uids with high solid content efﬁ ciently and reliably. In addition to the ﬂ ow-through design and shock-absorbing screen base, Stallion pumps have an integrated suction strainer and altered ball/check valve assembly that maximizes part life. They can also be outﬁtted with the Turbo-Flo™ or Pro-Flo® SHIFT Air Distribution Systems (ADS). The design of the Pro-Flo SHIFT ADS eliminates lost air at the end of the pumping stroke, making it up to 60% more efﬁ cient than competitive ADS technologies.

Related Products and Parts

Popular Series

Series associated to this product and brand

15-12902

Brand: Wilden

Series:

Stallion Mining Pumps

Item: 15-12902Model #: PS15/AAAAR/ZWS/WF/NE/0050

Type

Title

Link

Wilden Stallion Mining Pumps

View

Wilden Stallion Series 1-1/2" Clamped Metal Mining Pump EOM Manual

View

Product Type

Diaphragm Pumps, Self Priming, Submersible

Features & Benefits

Wilden Stallion Series - PS4, PS8, PS15, T4, T8, T15
You just can’t break this Stallion! The pumps are available in three models - PS4 (38 mm/1-1/2"), PS8 (51 mm/2") and PS15 (76 mm/3") - in either aluminum or ductile-iron construction with a choice of Pro-Flo SHIFT or Turbo-Flo™ ADS. All models are submersible, self-priming, shear-sensitive, dry-run capable, anti-freezing and have increased on/off reliability. They can handle pressures up to 125 psi (8.6 bar) with ﬂow rates, depending on the model, ranging from 307 to 764 lpm (81-202 gpm).

HANDLES FOR MOBILITY - Pump designed with built-in handles for applications that require the pump to be mobile.
CHECK VALVE EXHAUST FOR SUBMERSION - Air Distribution System equipped with a check valve exhaust to prevent water from back ﬂ owing into the pump during submersion.
SCREENED BASE - Stallion Series Pumps are designed with a screened base at the liquid inlet. The screened base allows the pump to operate in submersible applications without requiring ﬂ uid inlet piping. Additionally, the screened base prevents immense debris from entering and damaging the pump during operation.
SUBMERSIBLE - Wilden AODD pumps are able to function in applications that require the pump to be completely submerged within the ﬂuid application.

General Description

The Stallion pumps feature clamped construction and offer a series of unique design features that allow them to transfer ﬂ uids with high solid content efﬁ ciently and reliably. In addition to the ﬂ ow-through design and shock-absorbing screen base, Stallion pumps have an integrated suction strainer and altered ball/check valve assembly that maximizes part life.

They can also be outﬁtted with the Turbo-Flo™ or Pro-Flo® SHIFT Air Distribution Systems (ADS). The design of the Pro-Flo SHIFT ADS eliminates lost air at the end of the pumping stroke, making it up to 60% more efﬁ cient than competitive ADS technologies.
