DP-15BPH

Name: DP-15BPH PumpCatalog Yamada
Brand: Yamada
SKU: DP-15BPH
Price: 665.00 USD
Availability: OutOfStock

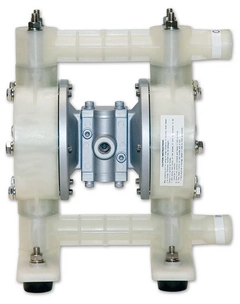

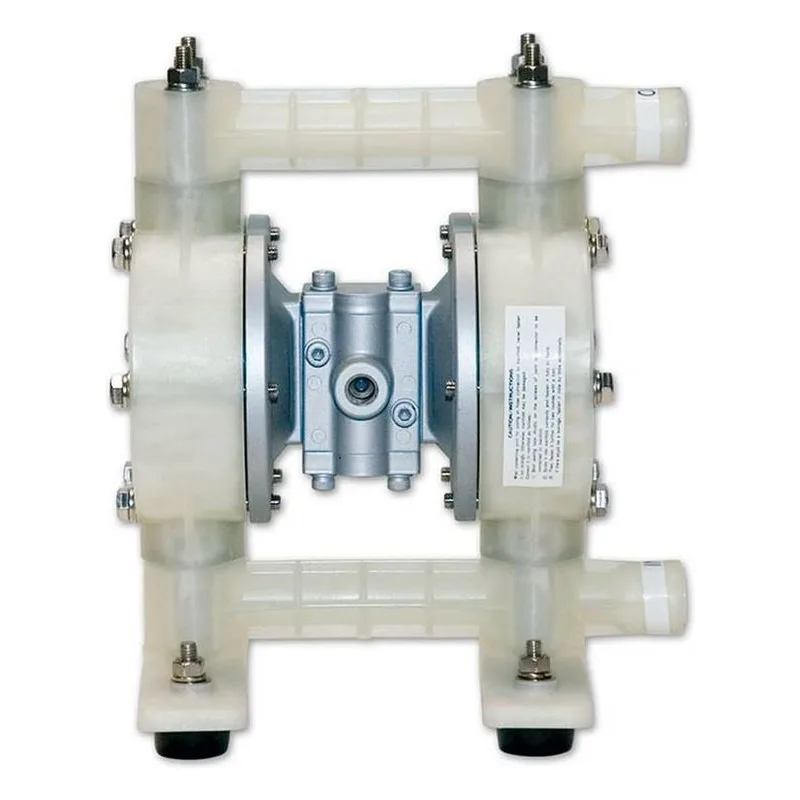

Yamada America DP-15BPH DP-15 Series Air Operated Double Diaphragm Pump, Model Number 853722. Polypropylene Body, Hytrel Diaphragm & Balls, Buna-N O-Rings, Aluminum Air Motor. 1/2" FNPT Inlet & Outlet, 7.4 GPM Flow Rate, Passes up to 1/32" (1mm) Solids.

Brand: Yamada

Series:

DP-10 / DP-15 Series

Item: DP-15BPHModel #: 853722

$665.00

Ships within 1 business day (in-stock items). Delivery typically 1-5 business days.

Returns accepted within 30 days. View Returns Policy

Estimate Shipping

Zip Code

Overview

Literature & Manuals

Find the manuals, product sheets and all the information you need

Type	Title	Link
Installation & Operation Manuals	Yamada Pumps DP-10 / DP-15 Pump Specifications	View
Installation & Operation Manuals	Yamada Pumps DP-10 Pump Acetal CAD Drawing	View
Installation & Operation Manuals	Yamada Pumps DP-10 Pump Aluminum CAD Drawing	View
Installation & Operation Manuals	Yamada Pumps DP-10 Pump Manual	View
Installation & Operation Manuals	Yamada Pumps DP-10 Pump PPG CAD Drawing	View
Installation & Operation Manuals	Yamada Pumps DP-10 Pump SS CAD Drawing	View
Installation & Operation Manuals	Yamada Pumps DP-15 Pump Manual	View
Parts Breakdowns	DP-15BPH Yamada Pump Repair Parts Exploded View	View

Series Information

DP-10 / DP-15 Series Information

Features & Benefits

DP-10 Port Dimensions
Intake & discharge connection:
Polypropylene (PPG) 3/8" Female NPT
Aluminum (ADC-12) 3/8" Female NPT
Stainless Steel (316) 3/8" Female NPT

DP-15 Port Dimensions
Intake & discharge connection:
Polypropylene (PPG) 1/2" Female NPT
Groundable Acetal 1/2" Female NPT
Air Inlet /Exhaust
Air inlet (incl. ball valve): 1/4" Female NPT
Air exhaust (incl. silencer): 3/8" Female NPT

Maximum Liquid Temperature*
Diaphragm Material Temperature
Buna N 180°F (82°C)
Neoprene 180°F (82°C)
Santoprene® (TPO) 180°F (82°C)
PTFE 212°F (100°C)
Hytrel® (TPEE) 248°F (120°C)
Viton® fluoroelastomer 248°F (120°C)

*The maximum liquid temperature for metal and Kynar® fitted pumps is determined by the elastomer (diaphragm material). Polypropylene and Groundable Acetal pumps have a maximum liquid temperature of 180°F (82°C) regardless of diaphragm material.
